Ride Diagnosis - Too Soft

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

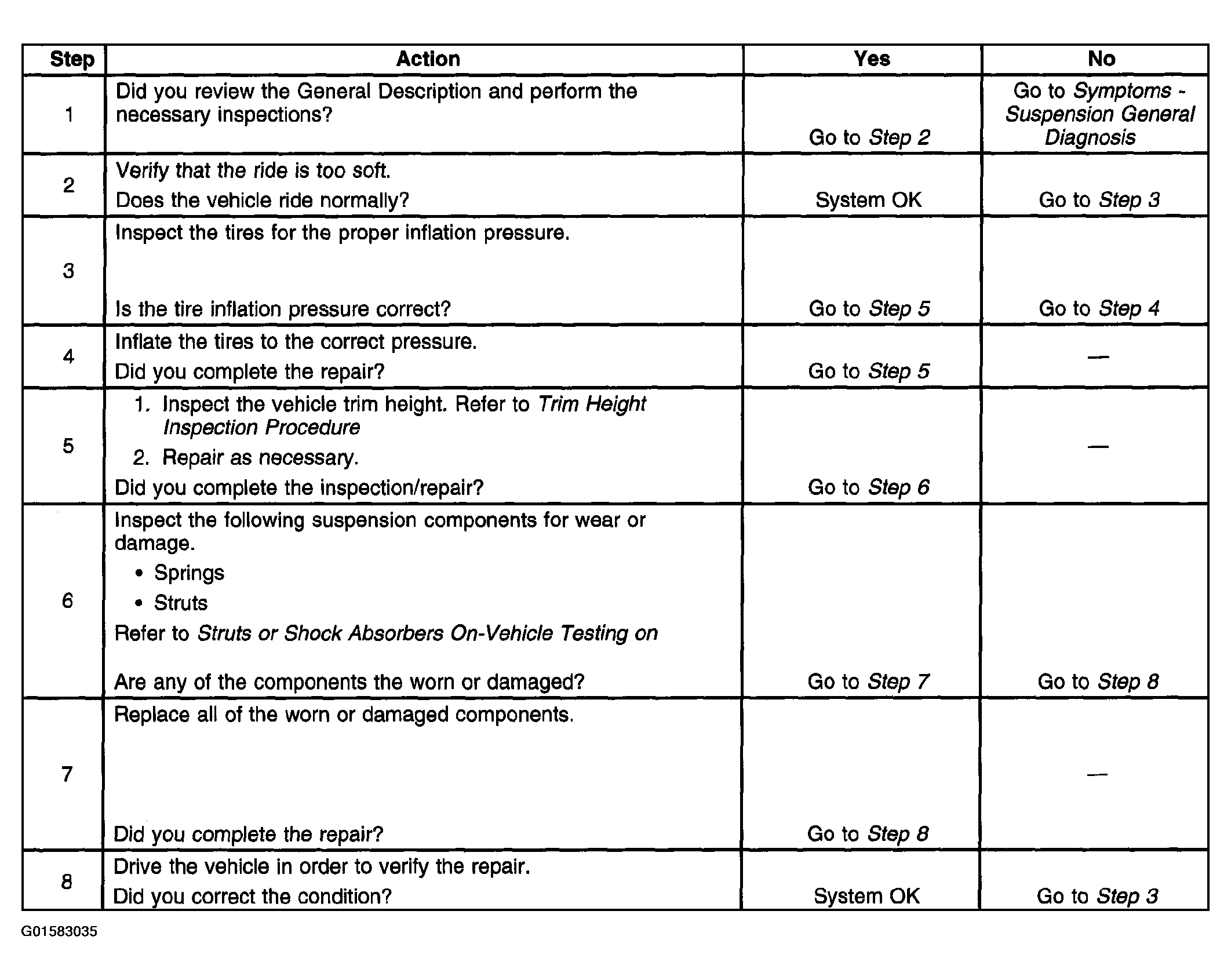

Fig 1: Ride Diagnosis - Too Soft
G01583035Courtesy of GENERAL MOTORS CORP.
