Ride Diagnosis - Too Hard

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

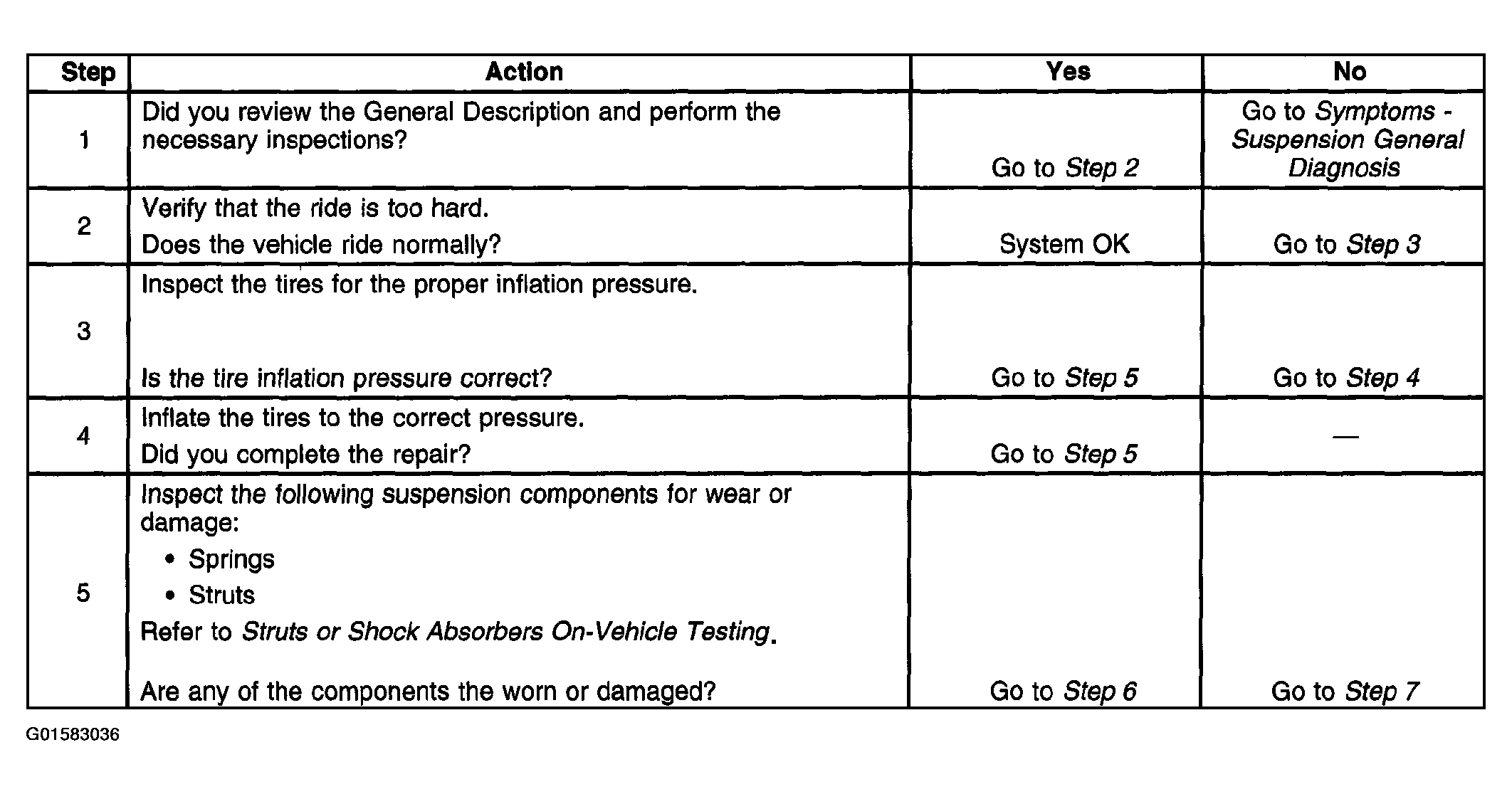

Fig 1: Ride Diagnosis - Too Hard (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

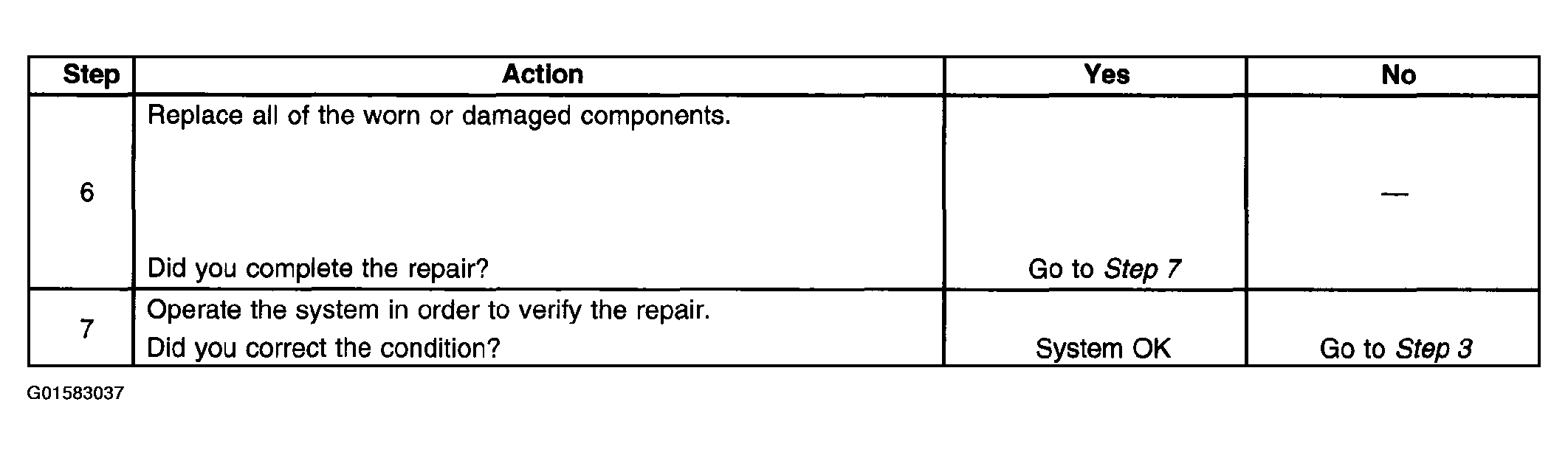

Fig 2: Ride Diagnosis - Too Hard (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
