Section 131 (Rear Suspension System)
>>
Special Tools & Equipment
Special Tools & Equipment
WARNING:
This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

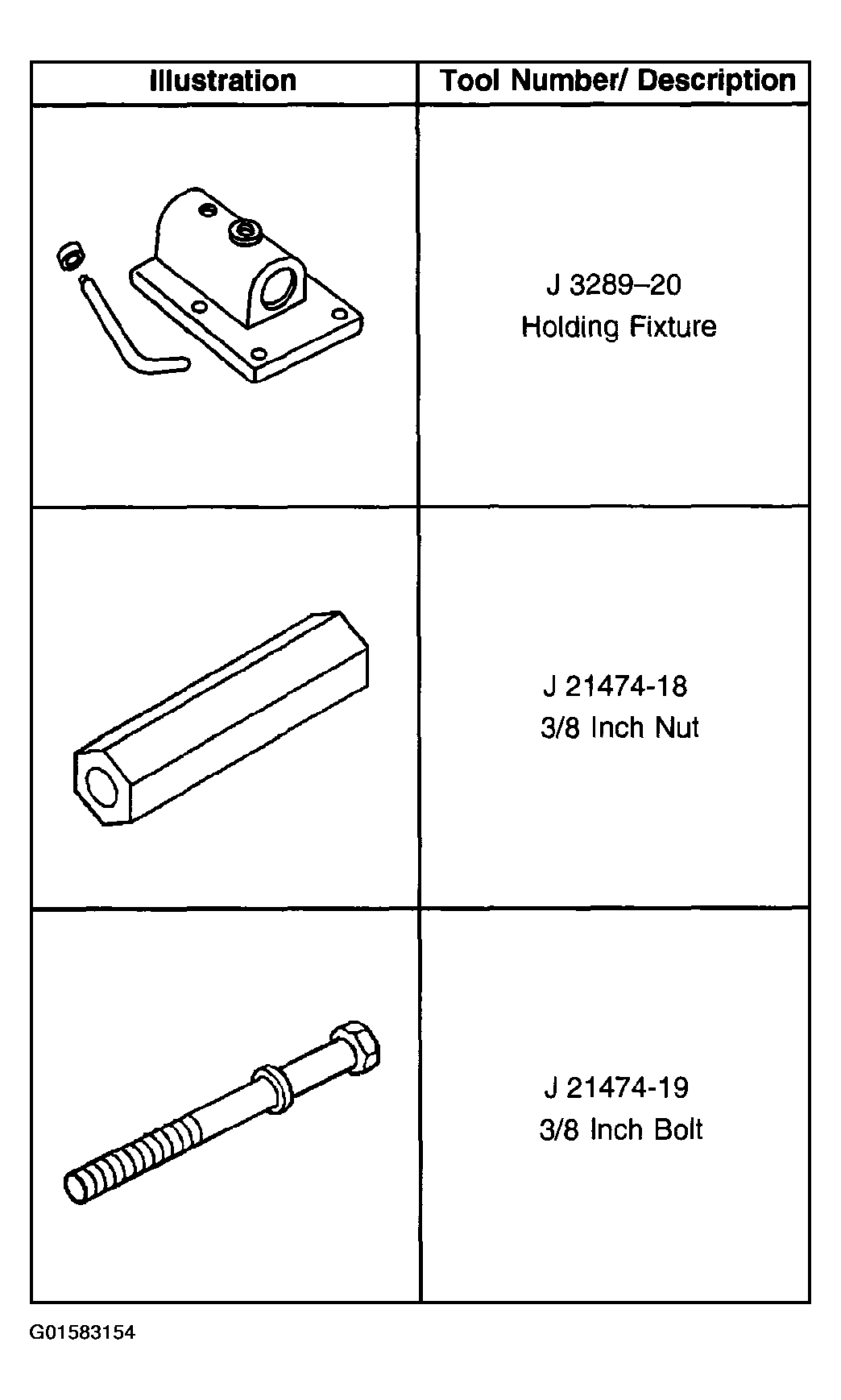

Fig 1: Special Tools & Equipment (1 of 2)
Courtesy of GENERAL MOTORS CORP.

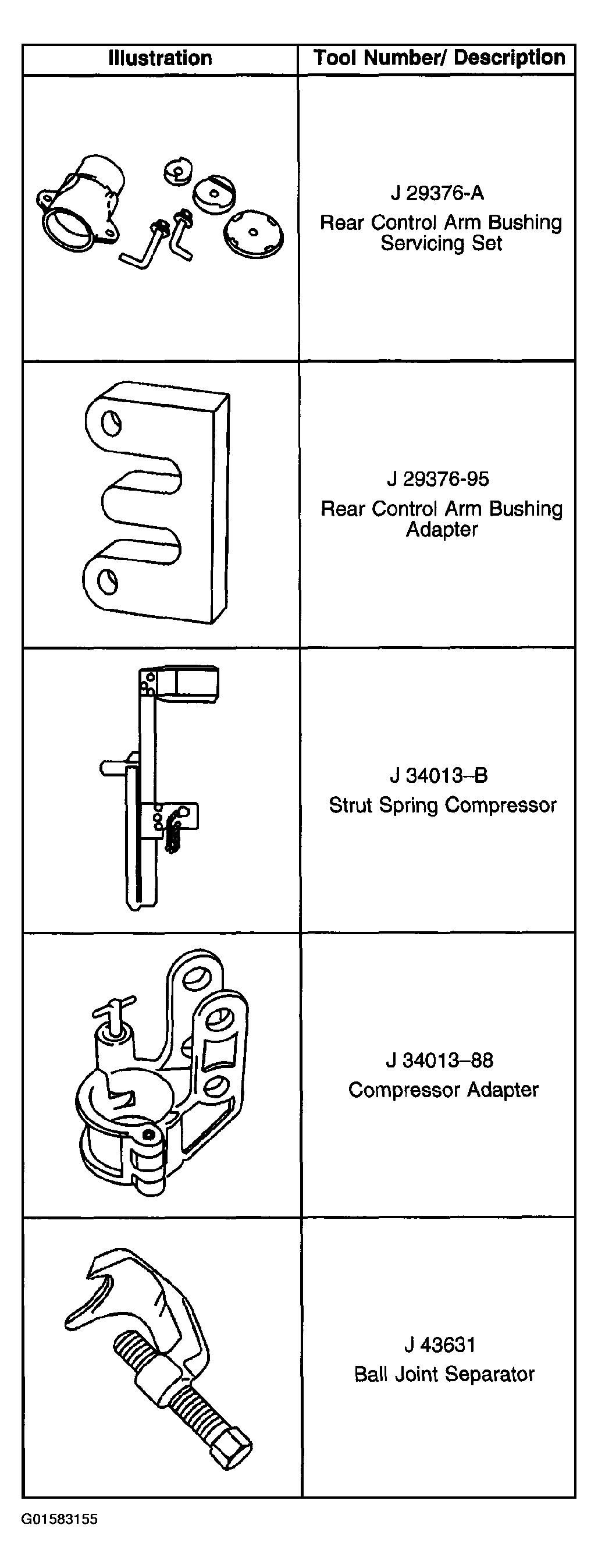

Fig 2: Special Tools & Equipment (2 of 2)
Courtesy of GENERAL MOTORS CORP.
