Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle on a hoist.
  2. Remove the tire and the wheel assembly.
  3. Remove the brake drum.
    NOTE: Do not hammer on brake drum as damage to the bearing could result.
  4. Remove the wheel stud using the J 43631  .
  5. Discard the wheel stud.

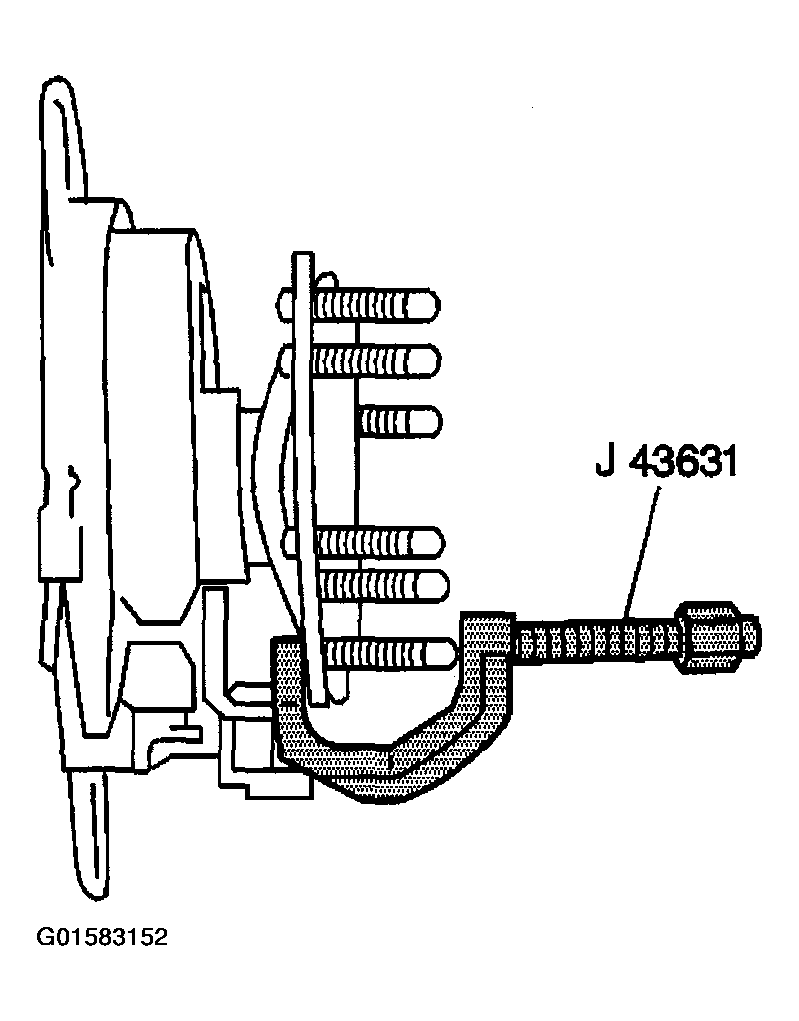

    Fig 1: Removing Wheel Stud
    G01583152Courtesy of GENERAL MOTORS CORP.
