Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the new stud from the back side of the hub.
  2. Install the four flat washers (1) on the hub.
  3. Install the wheel nut (2) with the flat side toward the washers (1).
  4. Tighten the nut (2) until the stud is properly seated in the hub flange.
  5. Remove the nut (2) and the washers (1).
  6. Install the brake drum.
  7. Install the tire and the wheel assembly
  8. Lower the vehicle.

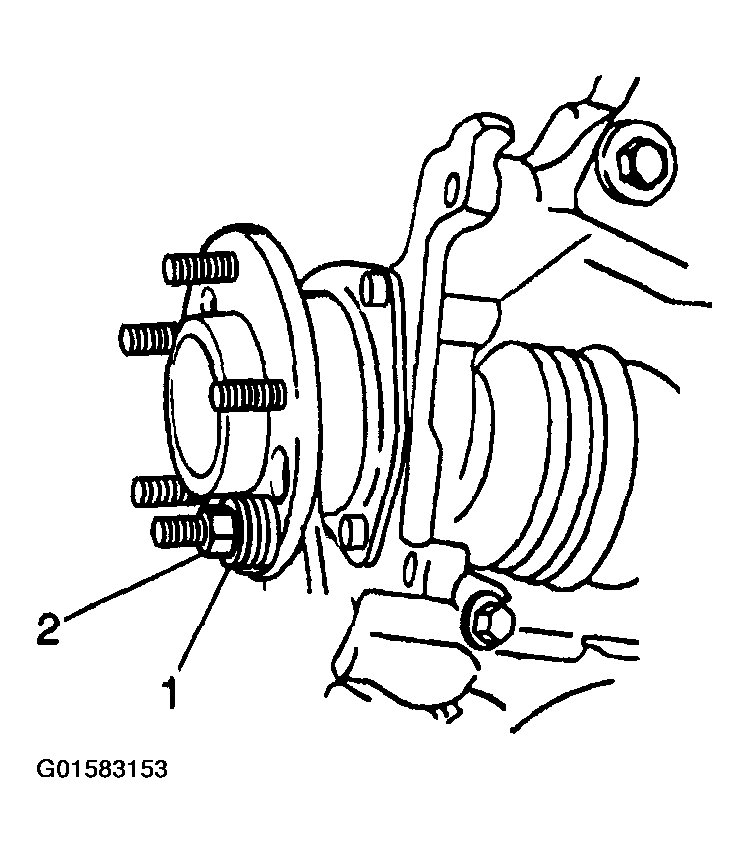

    Fig 1: Installing Wheel Stud
    G01583153Courtesy of GENERAL MOTORS CORP.
