Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: See Fastener Notice

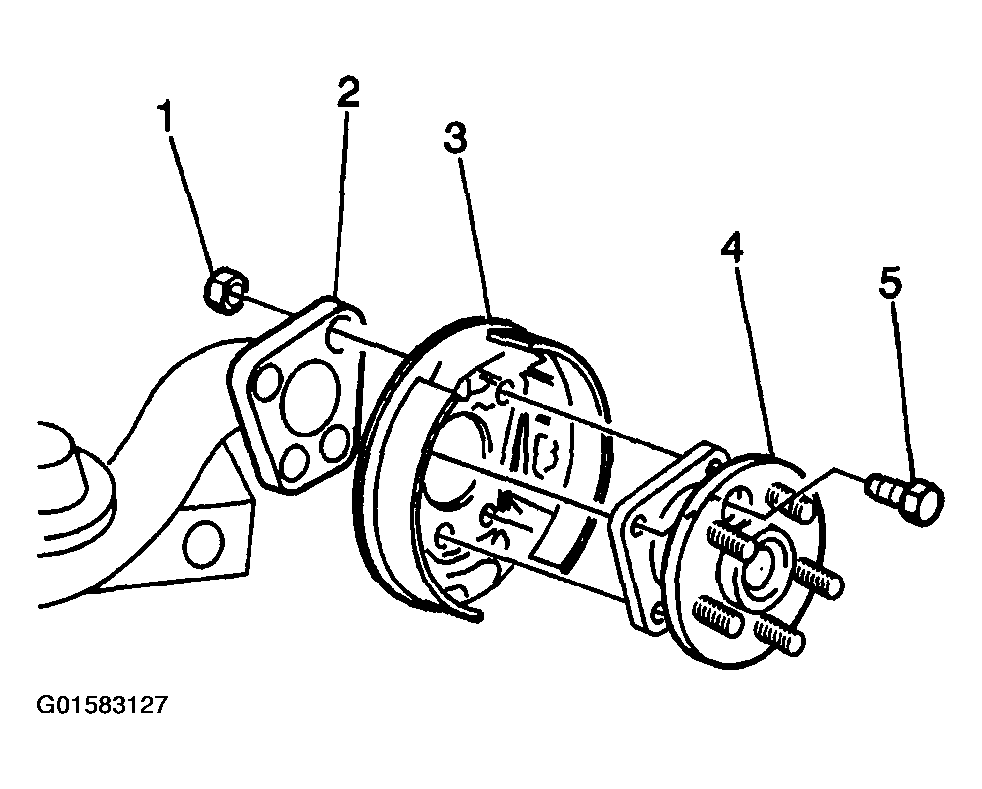

  1. Install the hub and bearing assembly (4). Position the top rear attaching bolt (5) in the hub and bearing assembly prior to the installation in the axle assembly (2).

    Tighten

    Tighten the hub and bearing to axle bolts to 60 N.m (44 ft lbs). See Figure

  2. Connect the rear ABS wheel speed sensor wire connector.
  3. Install the brake drum.
  4. Install the tire and wheel assemblies.
  5. Lower the vehicle.
