Schematic and Routing Diagrams

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

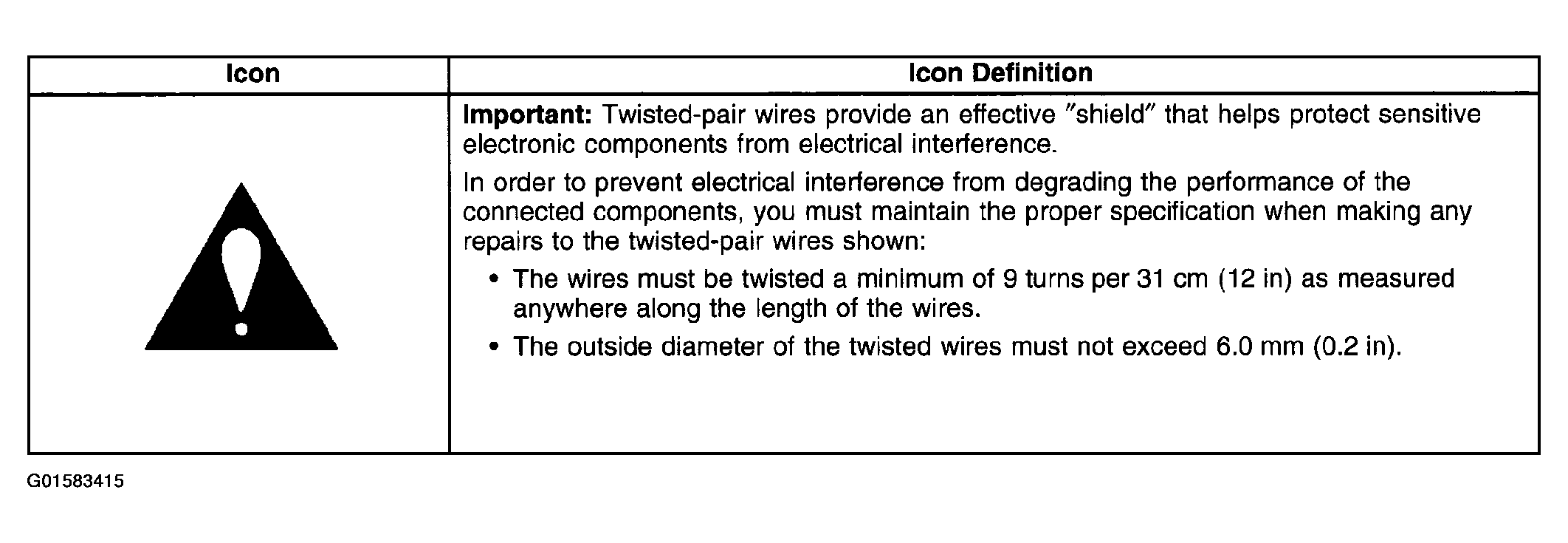

Fig 1: ABS Schematic Icons

Courtesy of GENERAL MOTORS CORP.

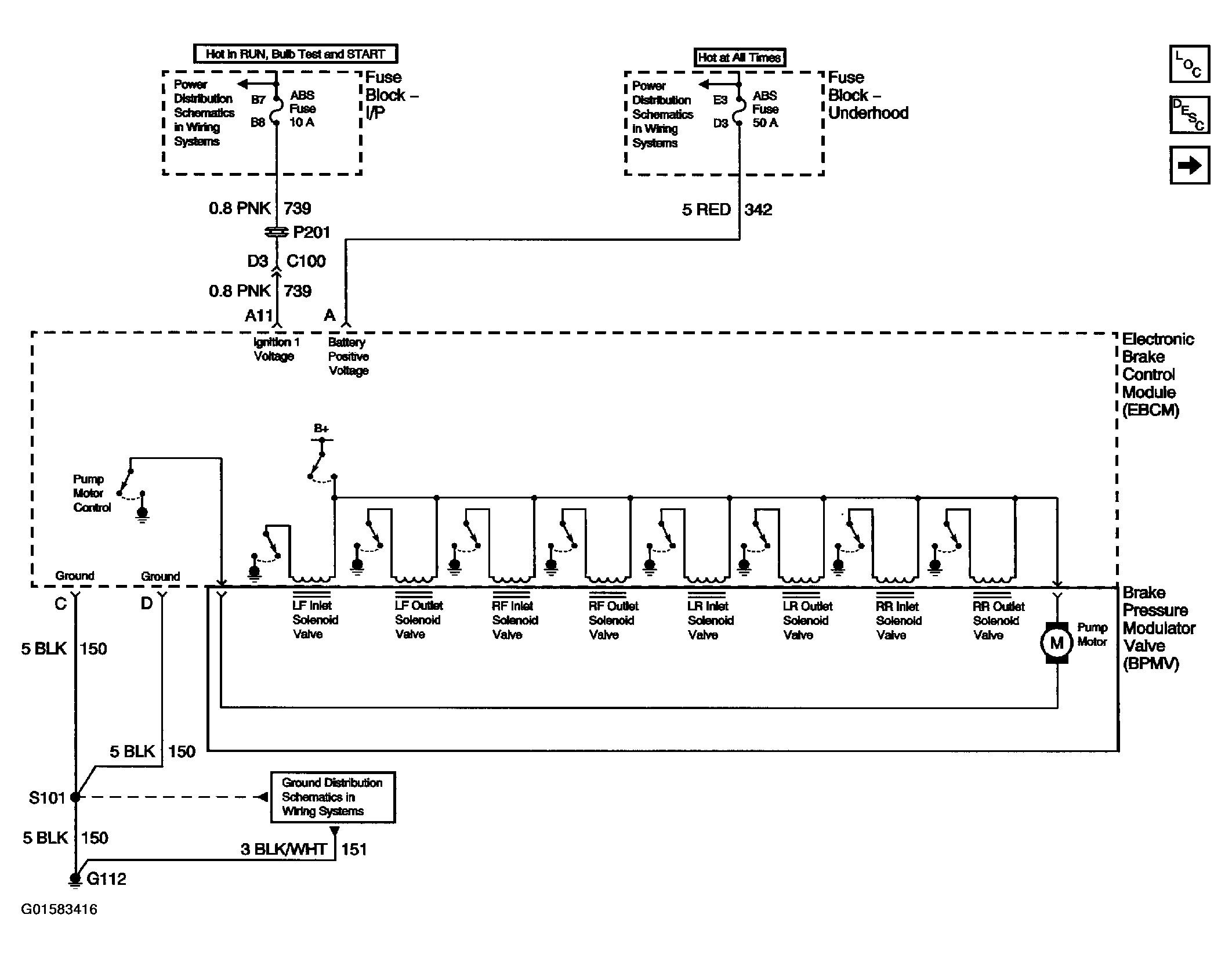

Fig 2: ABS Schematics (Module Power and Ground)

Courtesy of GENERAL MOTORS CORP.

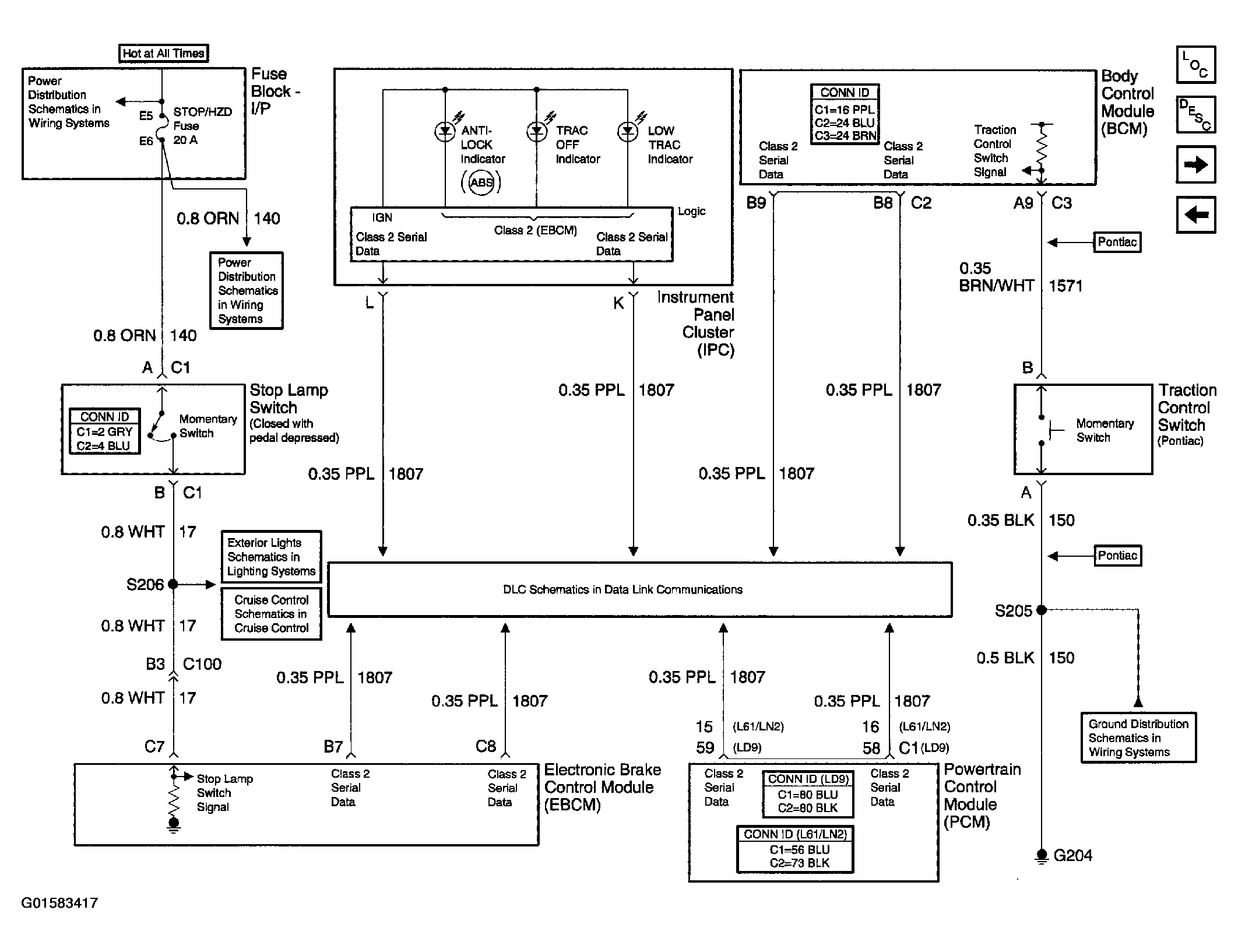

Fig 3: ABS Schematics (Indicators and Switches)

Courtesy of GENERAL MOTORS CORP.

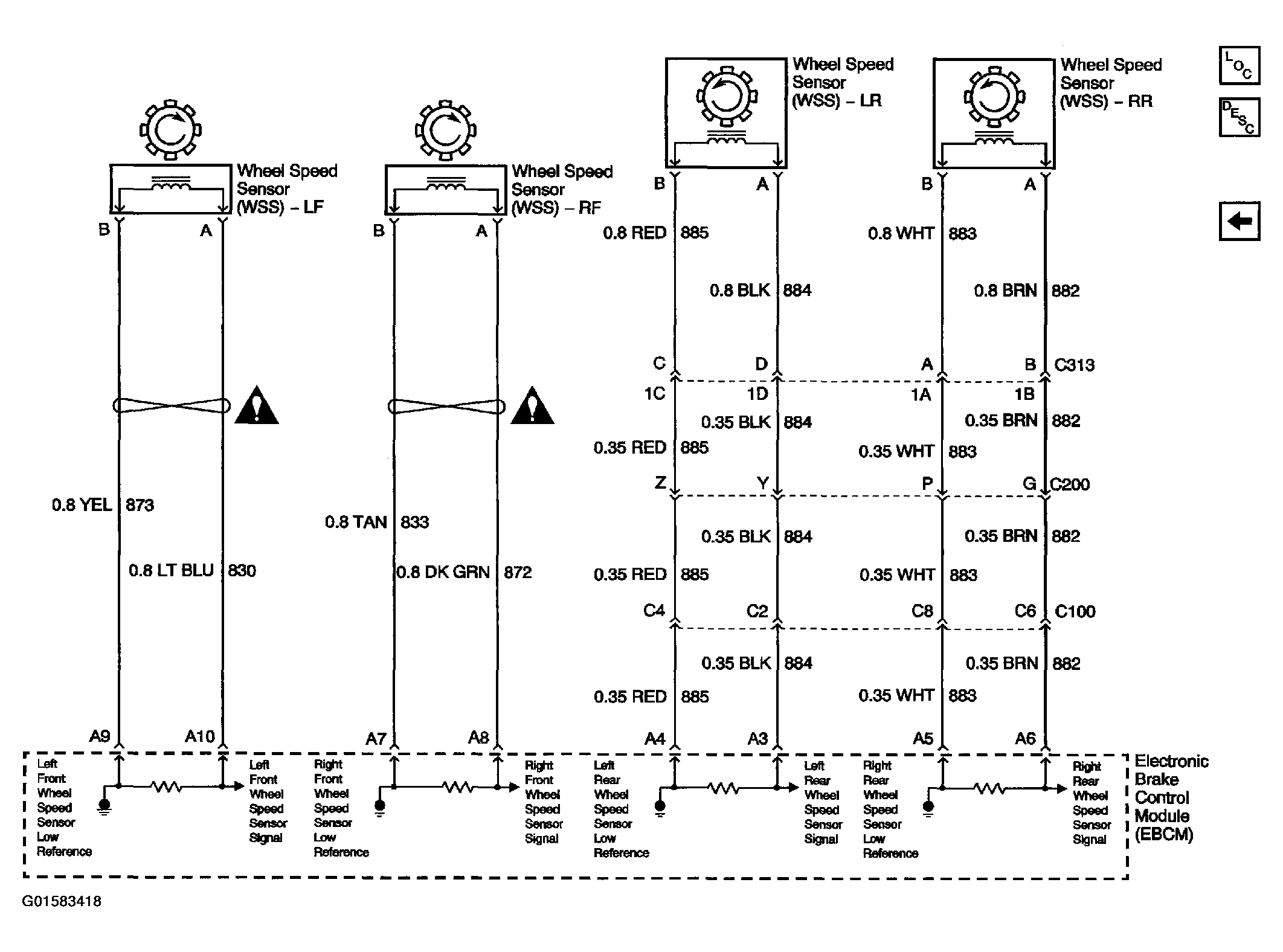

Fig 4: ABS Schematics (Wheel Speed Sensors)

Courtesy of GENERAL MOTORS CORP.
