Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to Fastener Notice in Cautions and Notices.

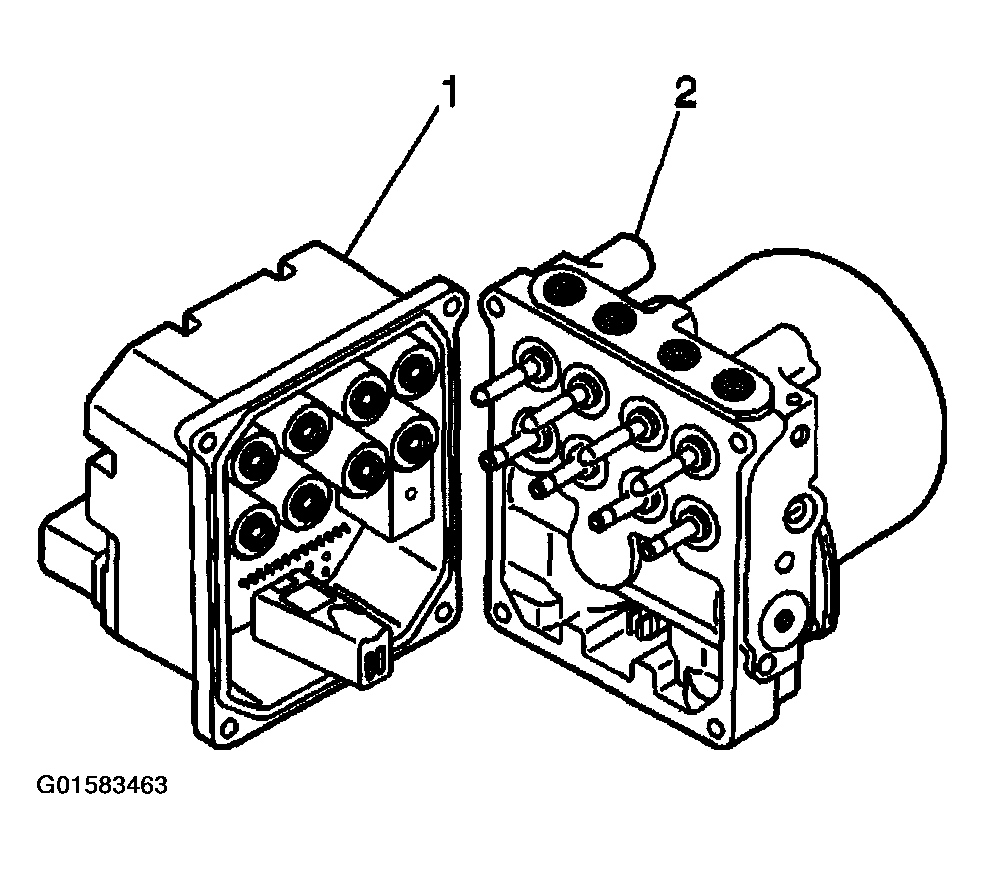

Install the EBCM (1) to the BPMV (2).
Tighten

Tighten the four screws that connect the EBCM (1) to the BPMV (2) to 5 N.m (44 lb in).
Transfer the upper BPMV mounting bracket to the new BPMV.

Fig 1: Brake Pressure Modulator Valve (BPMV) Installation (1 Of 5)
Courtesy of GENERAL MOTORS CORP.

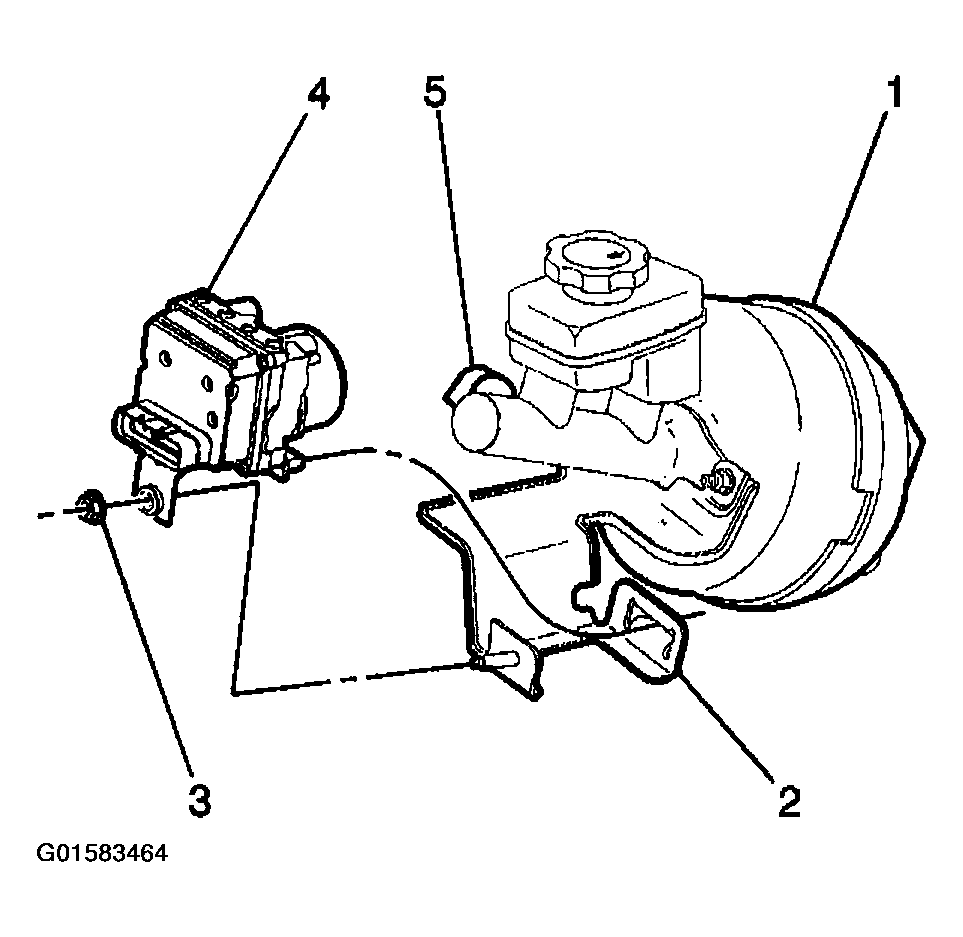

Install the EBCM/BPMV assembly (4) to the lower mounting bracket (2).
Install the nut (3) that connects the EBCM/BPMV assembly to the mounting bracket (2).
Tighten

Tighten the nut (3) to 10 N.m (7 lb ft).

Fig 2: Brake Pressure Modulator Valve (BPMV) Installation (2 Of 5)
Courtesy of GENERAL MOTORS CORP.

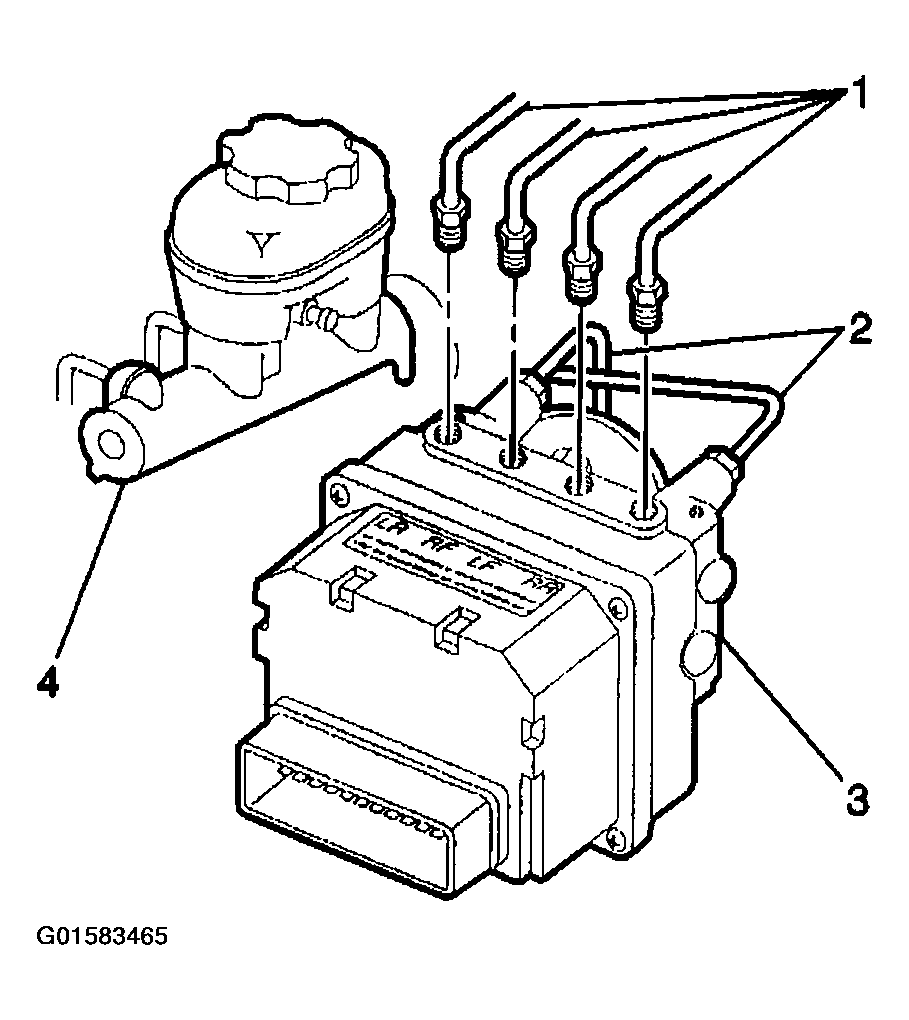

Install the master cylinder brake pipes (2) to the BPMV (3).
Tighten

Tighten the master cylinder brake pipe fittings to 24 N.m (18 lb ft).
Install the caliper and the wheel cylinder brake pipes (1) to the BPMV (3).
Tighten

Tighten the caliper and the wheel cylinder brake pipe fittings to 24 N.m (18 lb ft).

Fig 3: Brake Pressure Modulator Valve (BPMV) Installation (3 Of 5)
Courtesy of GENERAL MOTORS CORP.

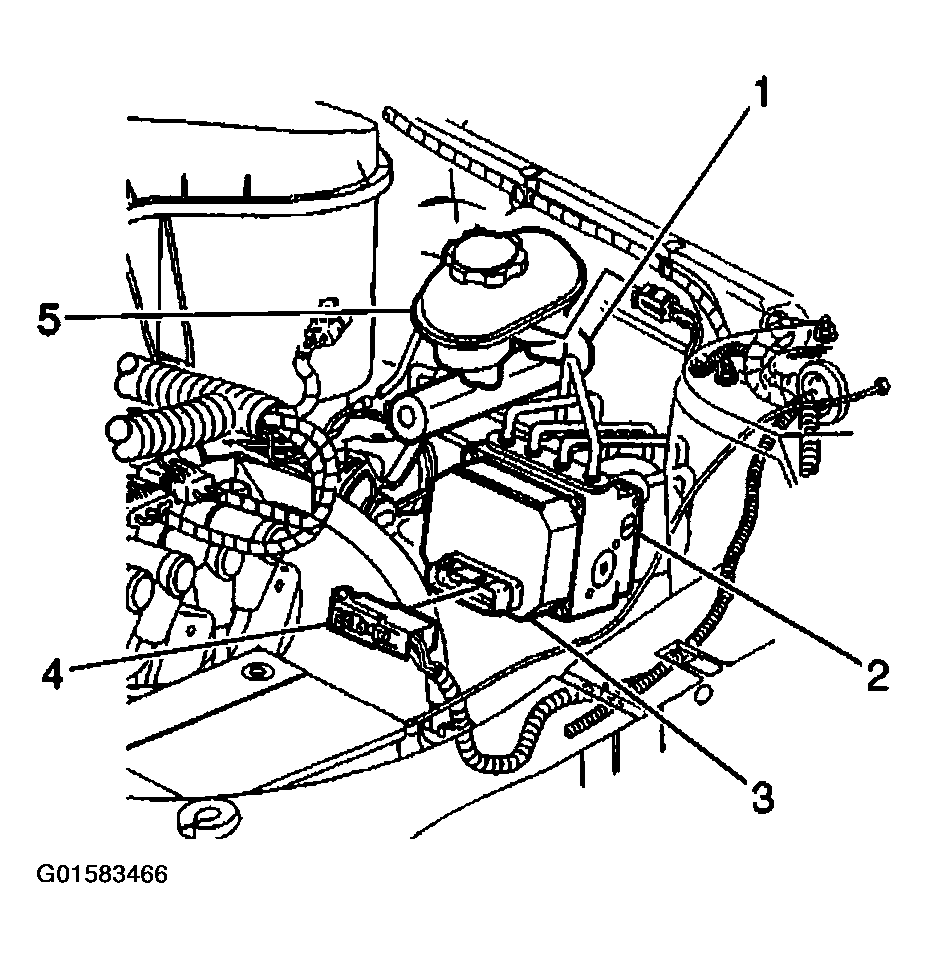

Connect the EBCM harness connector (4).

Fig 4: Brake Pressure Modulator Valve (BPMV) Installation (4 Of 5)
Courtesy of GENERAL MOTORS CORP.

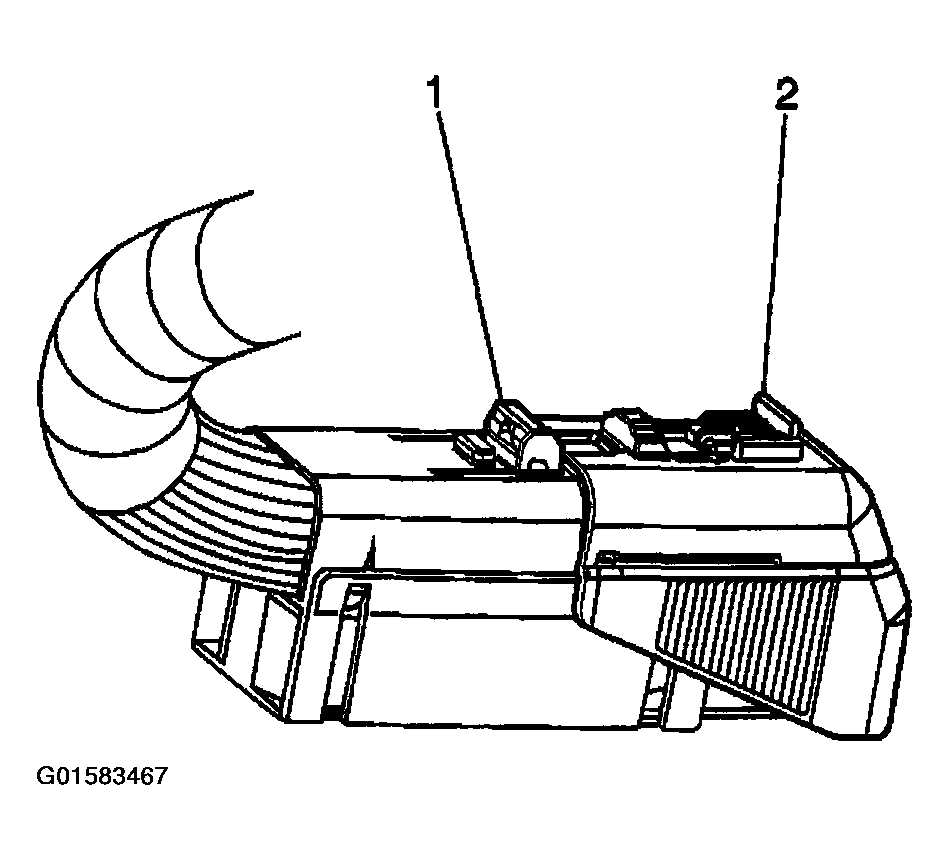

Push down the lock tab (1) and then move the sliding connector cover back in the home position to lock.
Insert the CPA (2) back into place.
Perform the ABS Automated Bleed Procedure .
Perform the DIAGNOSTIC SYSTEM CHECK - ABS .

Fig 5: Brake Pressure Modulator Valve (BPMV) Installation (5 Of 5)
Courtesy of GENERAL MOTORS CORP.
