Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition switch to the OFF position.
  2. Remove the EBCM/BPMV assembly (4) from the lower BPMV bracket (2). Refer to Brake Pressure Modulator Valve (BPMV) Replacement .
  3. Remove the master cylinder attaching nuts.
  4. Move the master cylinder (5) forward just enough to clear the studs on the vacuum brake booster (1).
  5. Remove the lower BPMV bracket (2) from the vacuum brake booster (1).

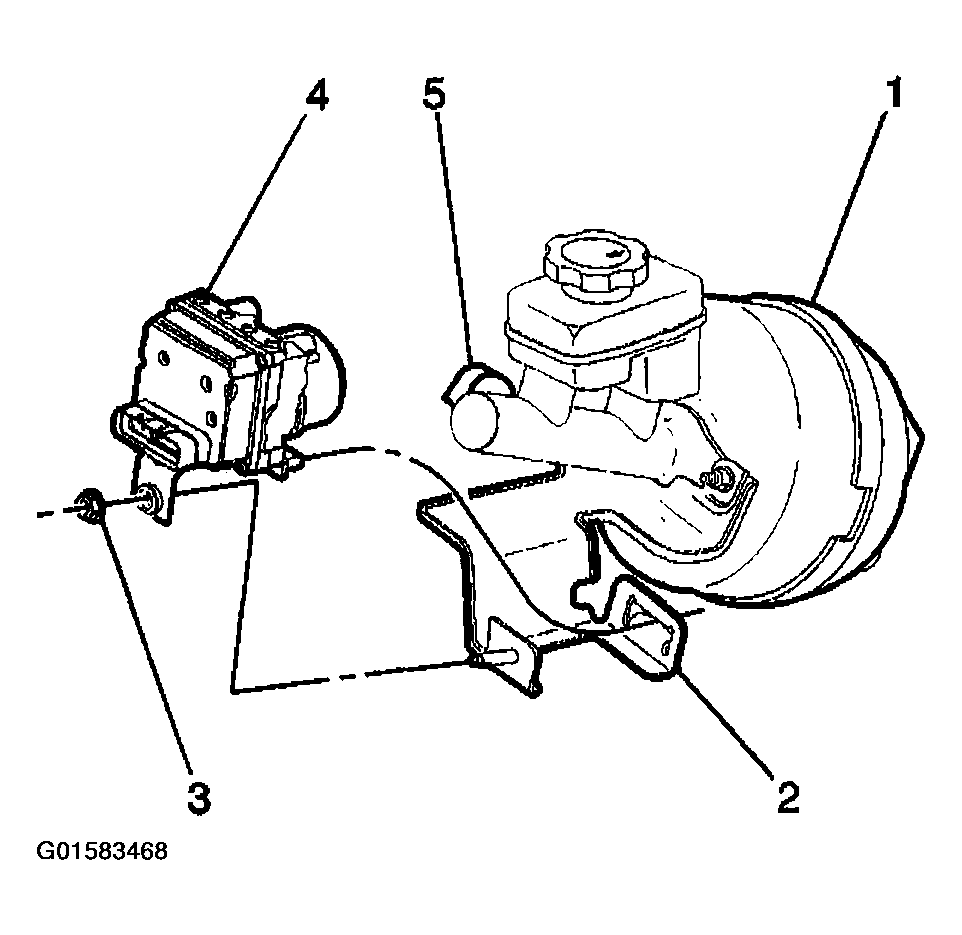

    Fig 1: Brake Pressure Modulator Valve (BPMV) Bracket Removal
    G01583468Courtesy of GENERAL MOTORS CORP.
