Test Description

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

2. Determines whether the DTC is current.

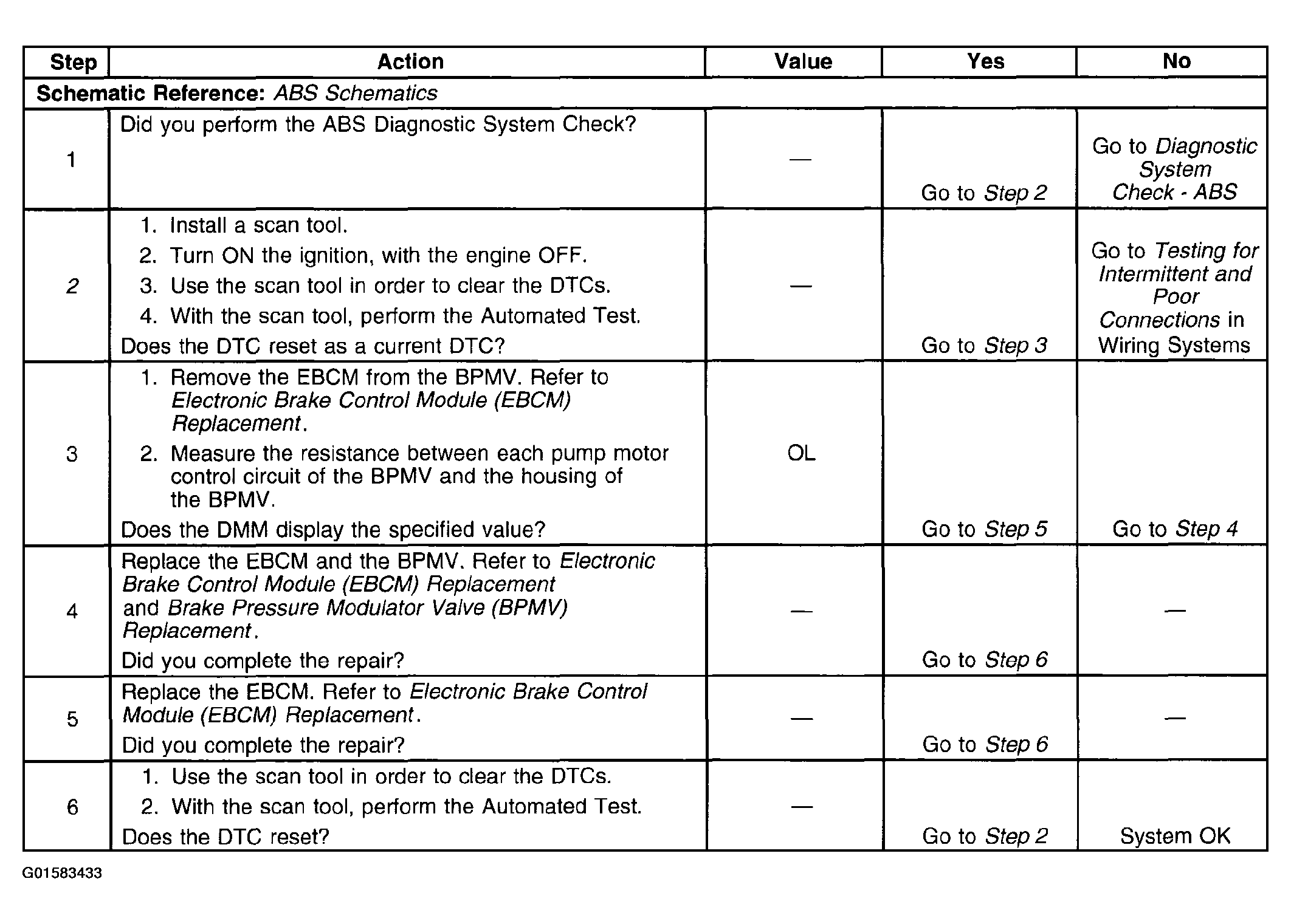

Fig 1: DTC C1214
G01583433Courtesy of GENERAL MOTORS CORP.
