Trim Height Specifications

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

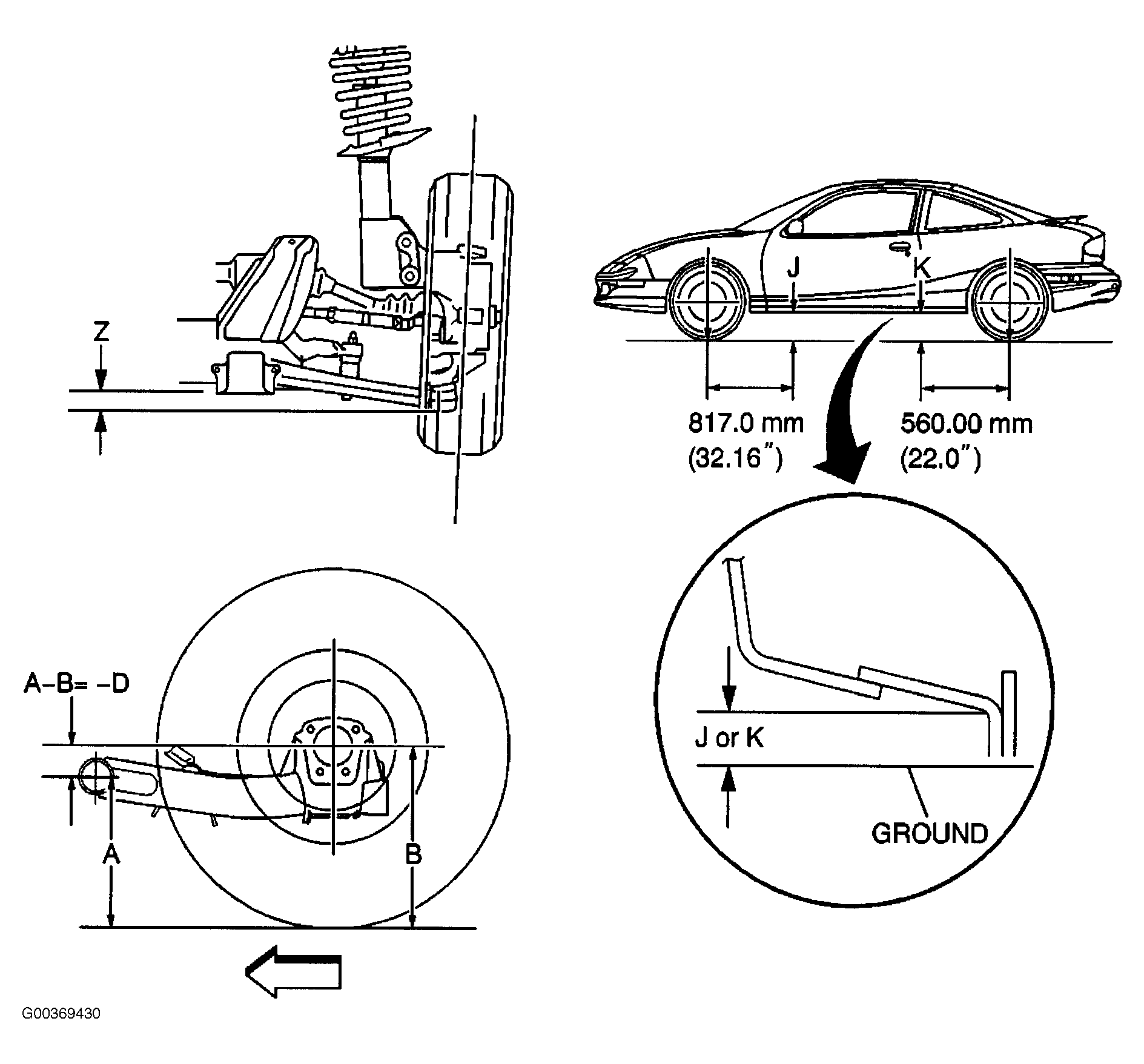

Fig 1: Trim Height Measurements
G00369430Courtesy of GENERAL MOTORS CORP.

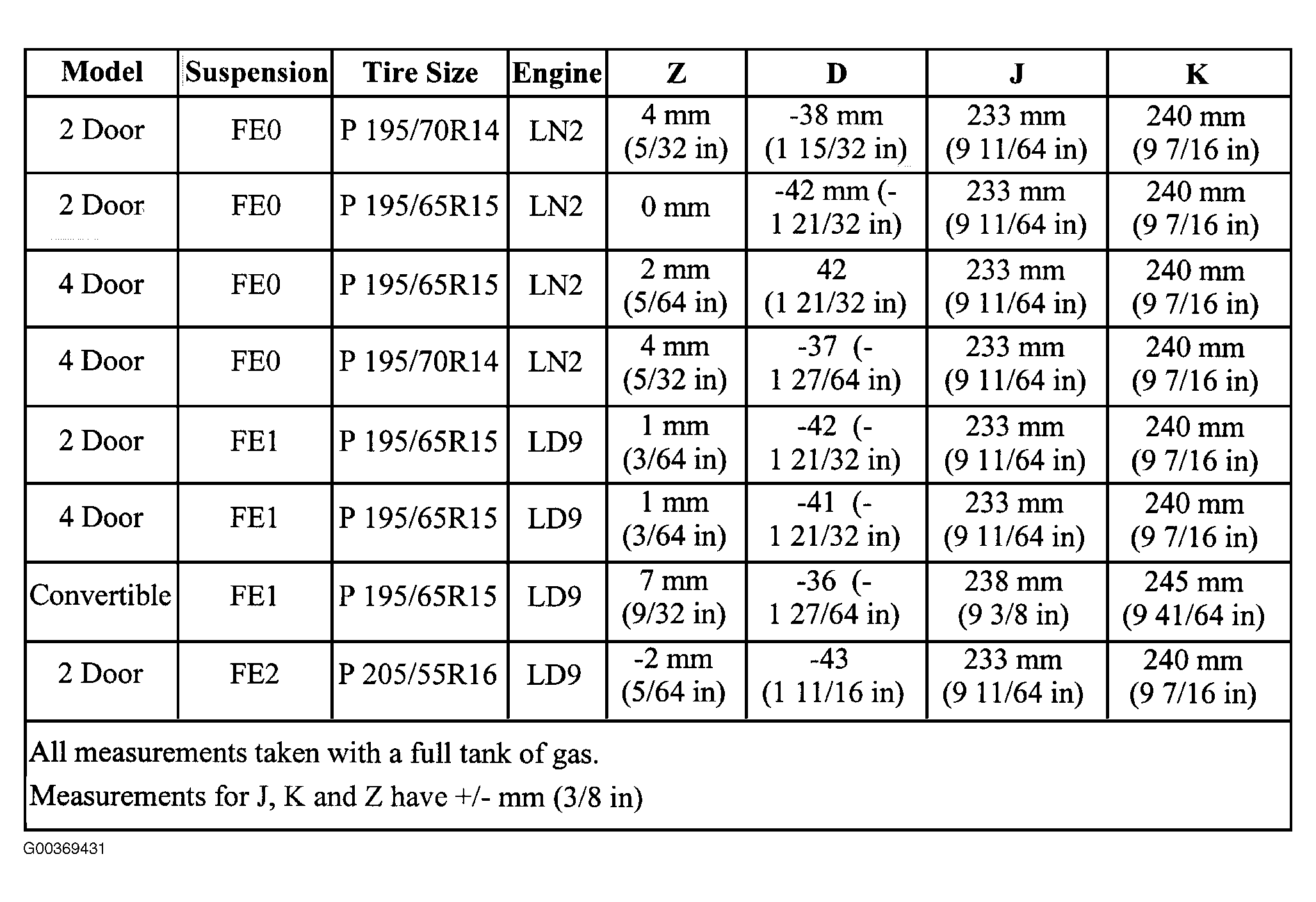

Fig 2: Trim Height Specifications
G00369431Courtesy of GENERAL MOTORS CORP.
