Engine Compartment Fuse/Relay Center
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Pontiac Sunfire, 2004 Chevrolet Cavalier, 2003 Pontiac Sunfire, 2003 Chevrolet Cavalier, and 2002 Pontiac Sunfire. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

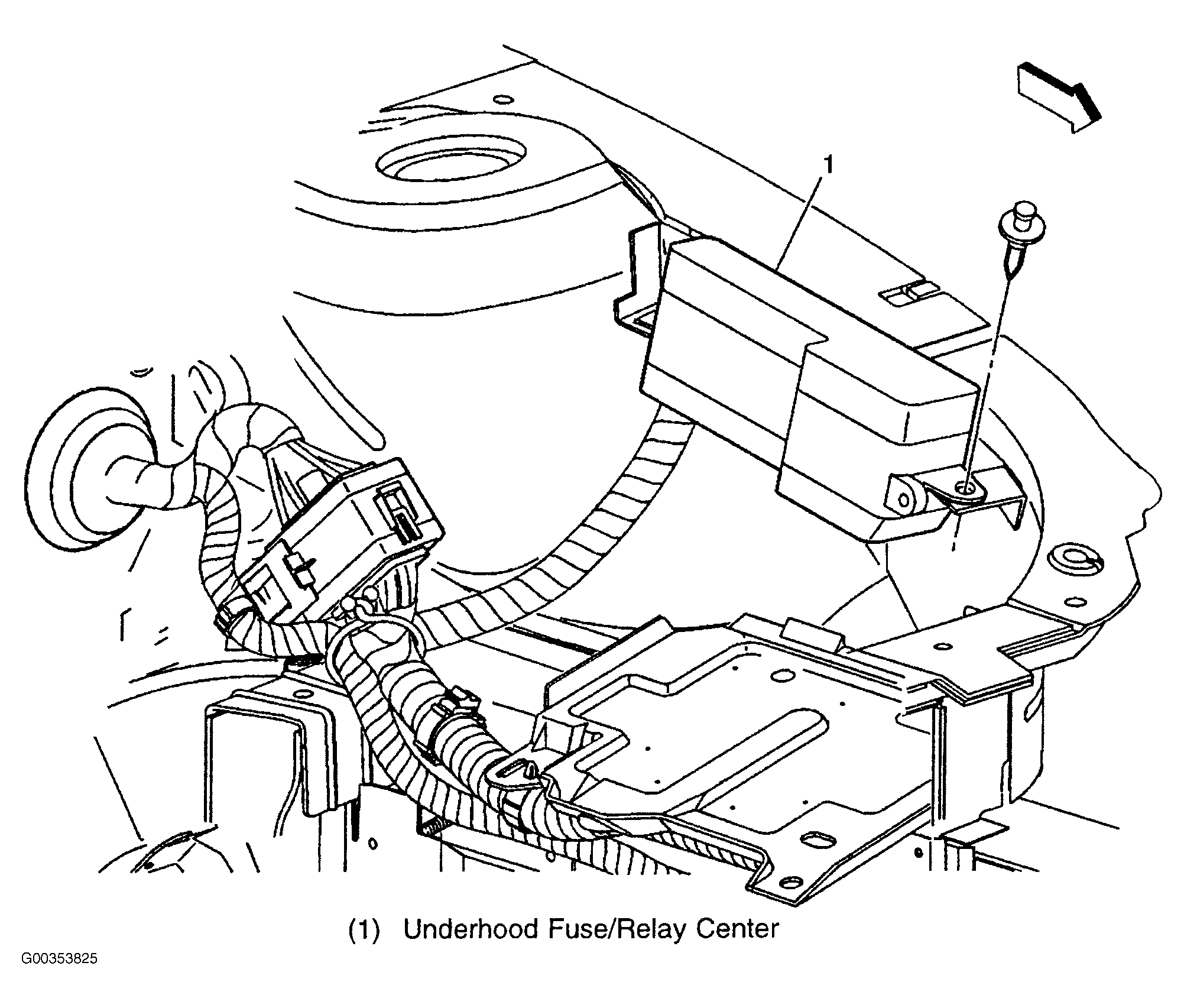

Engine compartment fuse/relay center is located on driver's side of engine compartment. See Fig 1.
ENGINE COMPARTMENT FUSE BLOCK CIRCUIT IDENTIFICATION
| Fuses | Usage |
|---|---|
| IGN | Ignition Switch Circuits |
| BATT 1 | Exterior lamps, Power Outlet, Horn, Audio Amplifier |
| BATT 2 | Rear Defogger, Starter, Power Locks, Stoplamps |
| ABS | Anti-Lock Brake System |
| COOLING FAN | Engine Cooling Fan |
| PCM/HVAC | Powertrain Control Module, Heater and A/C Blower |
| CRNK | Starter |
| BLO | Heater and A/C Blower |
| PCM | Powertrain Control Module |
| A/C | A/C Compressor |
| A/C | A/C Compressor |
| FUEL PUMP | Fuel Pump |
| CRANK | Starter |
| COOLING FAN | Engine Cooling Fan |
| HEATER BLOWER | Heater and A/C Blower |
