Stoplight Switch: Removal

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the lower I/P trim insulator screw. Remove the lower I/P trim insulator from the brake pedal bracket.
  2. Disconnect the electrical connections from the stop light switch. See Fig 1 . Rotate the stop light switch counterclockwise until the travel stop has been reached. Pull the stop light switch rearward. See Fig 1 .
  3. Remove the stop light switch from the brake pedal bracket. See Fig 1 .

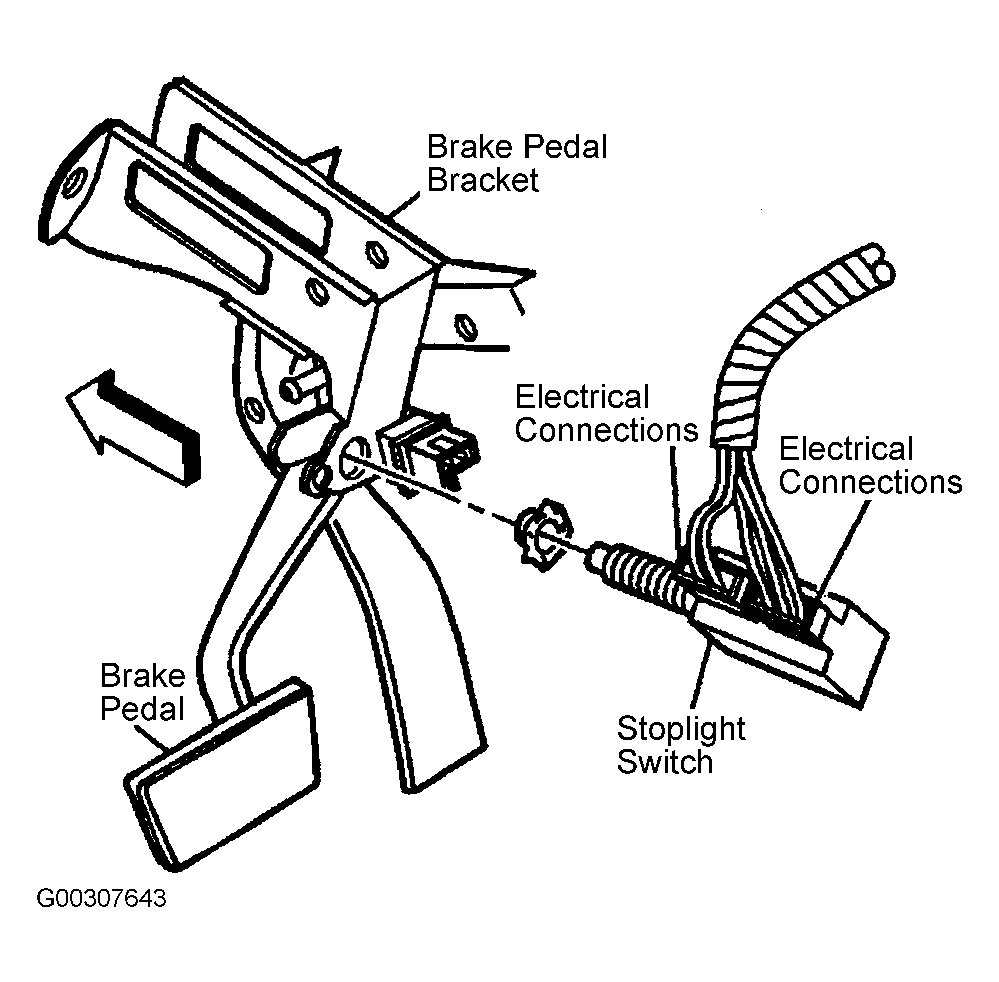

Fig 1: Identifying Stoplight Switch Components
G00307643Courtesy of GENERAL MOTORS CORP.
