Park Brake Lever Assembly: Removal

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the console. Release the tension from the park brake cable system. See DISABLING PARK BRAKE CABLE AUTOMATIC ADJUSTER  under ADJUSTMENTS & INSPECTIONS.
  2. Disconnect the electrical connector from the park brake warning lamp switch. See Fig 1
  3. Remove the front park brake cable end from the lever reel assembly. See Fig 1 .
  4. Using the Parking Brake Cable Release Tool, release the cable conduit end fitting from the lever assembly. See Fig 1 .
  5. Remove the transmission shift control assembly mounting nuts. See Fig 2 .
  6. Remove the park brake lever assembly rear mounting nut. Raise the shift control assembly just enough to allow the park brake lever assembly to be removed. See Fig 1 .
  7. Remove the console attachment bracket. Remove the lever assembly. See Fig 1 .

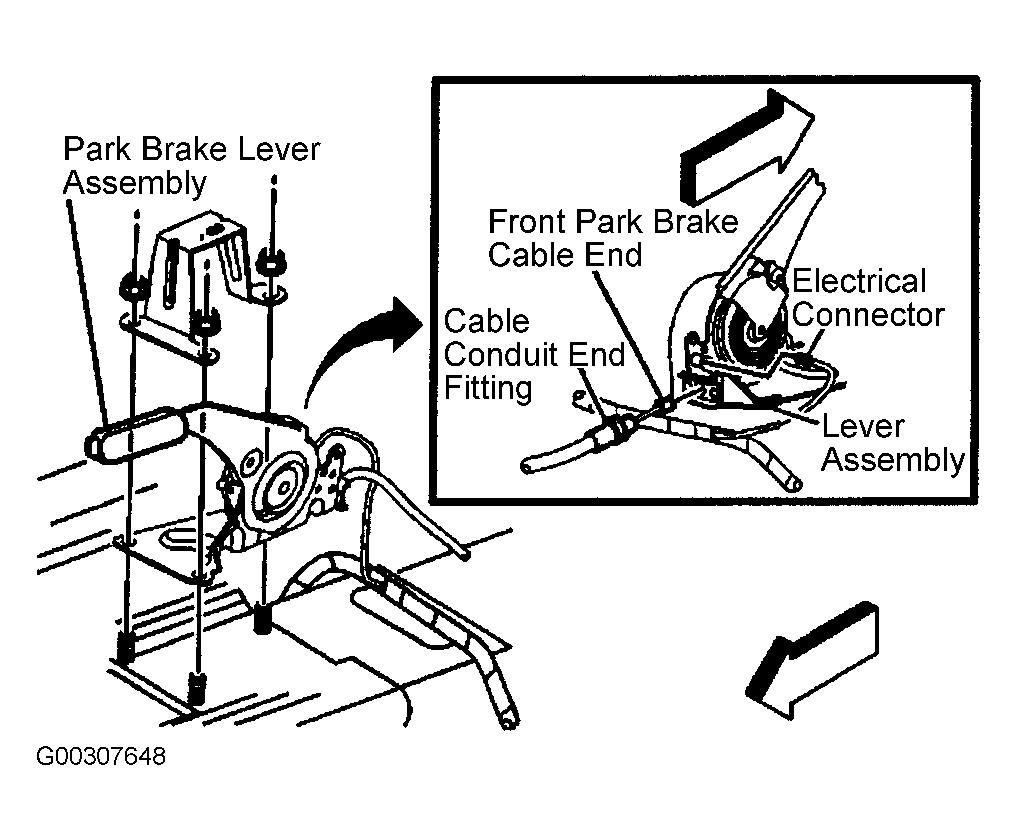

Fig 1: Identifying Park Brake Cable Components
G00307648Courtesy of GENERAL MOTORS CORP.

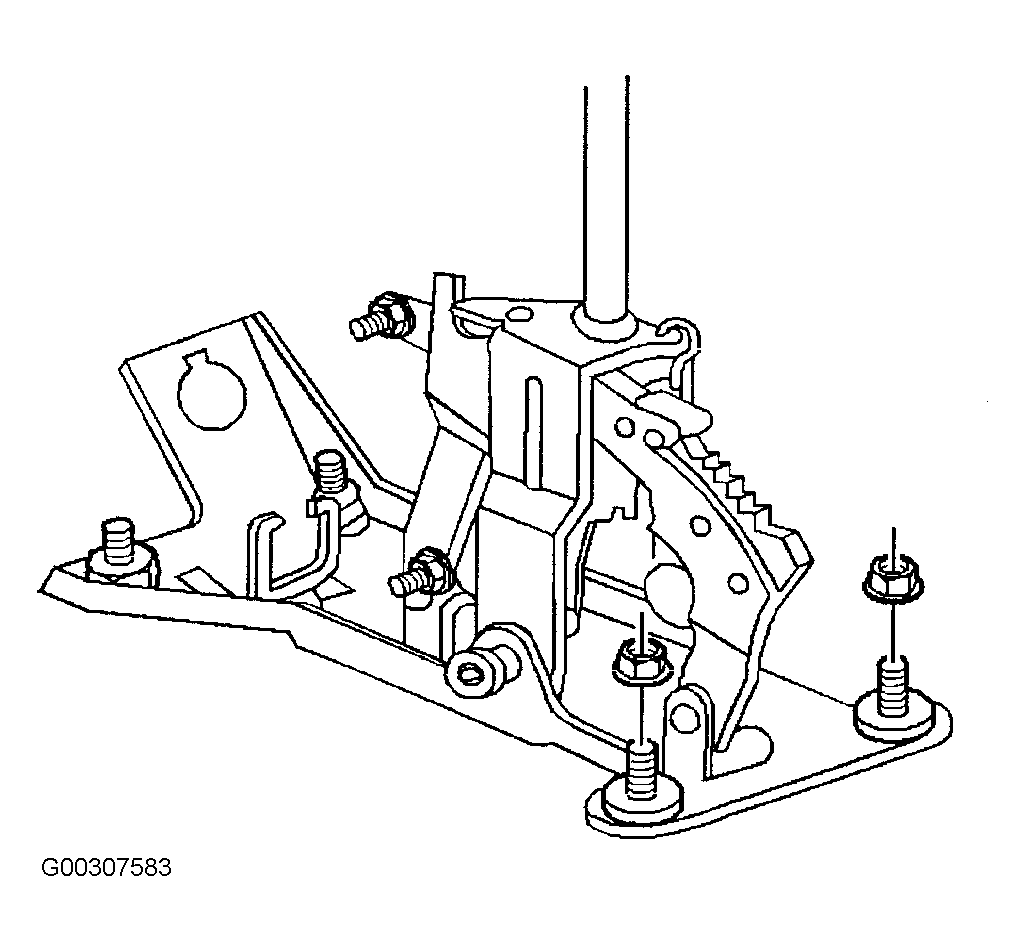

Fig 2: Identifying Shift Assembly Mounting Nuts
G00307583Courtesy of GENERAL MOTORS CORP.
