Master Cylinder: Installation

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Bench bleed the master cylinder. See MASTER CYLINDER BENCH BLEEDING  under BLEEDING BRAKE SYSTEM.

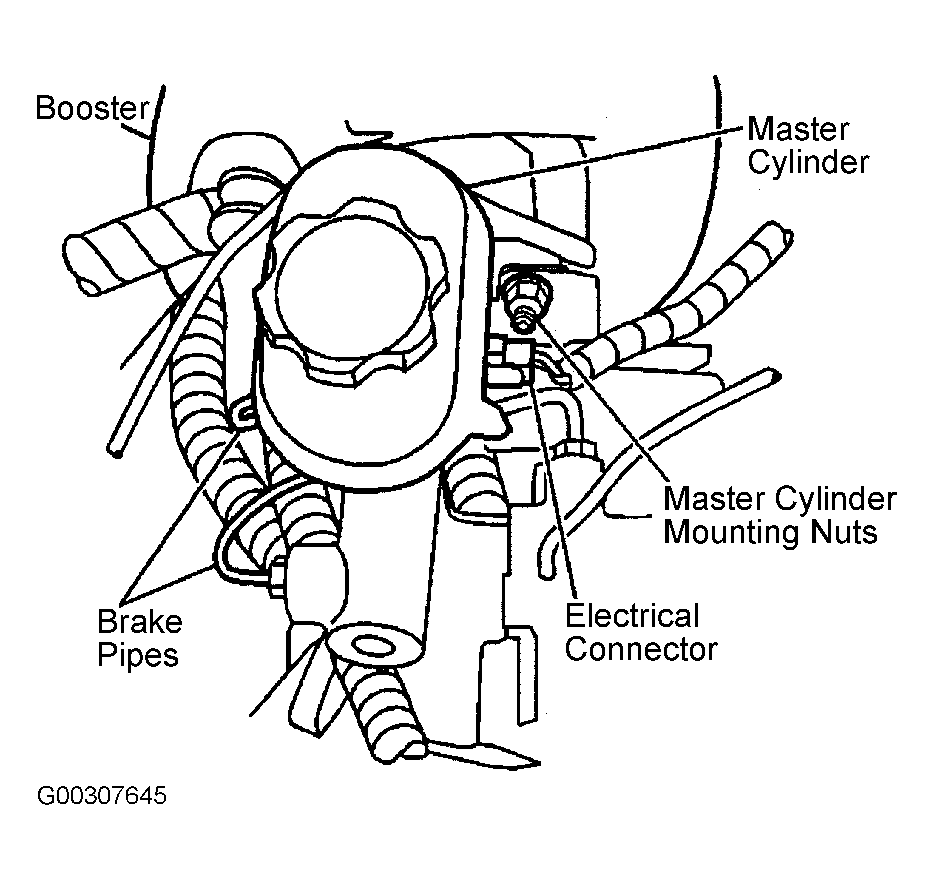

  2. Install the master cylinder to the vacuum brake booster. See Figure .
  3. Position the proportioning valve assembly bracket or the anti-lock brake modulator bracket, onto the brake booster studs.
  4. Install the master cylinder mounting nuts. Tighten to specifications. See TORQUE SPECIFICATIONS  .
  5. Remove the caps from brake pipes. Connect the brake pipe fittings at the master cylinder. Tighten to specifications. See TORQUE SPECIFICATIONS  .
  6. Connect the electrical connector to the brake fluid level sensor. See Figure .
  7. Bleed the hydraulic brake system. See BLEEDING THE BRAKE SYSTEM  .
