Knee Bolster (Left Side): Removal

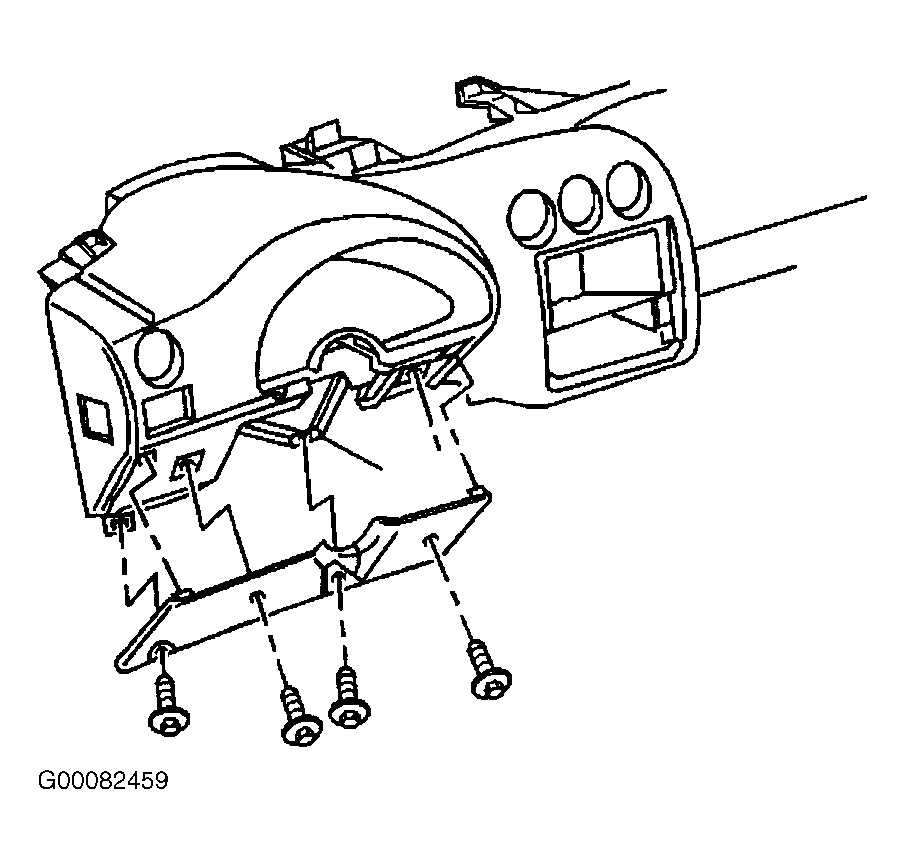

Remove the instrument panel knee bolster bolts. See Figure . Remove the instrument panel knee bolster. Disconnect the electrical connector at the rear compartment lid switch.
