Adjustment (Floor Shift)

  1. Remove center console trim for access to base of shift lever. Place shift lever in Park. Turn lock cylinder to RUN position to energize BTSI solenoid. Unlock cable adjuster at base of shift lever by pressing locking button upward. Turn lock cylinder to LOCK position.
  2. On "C", "F", "H" and "Y" bodies, push cable connector nose forward to remove slack. On "E" and "K" bodies, push cable housing toward shifter to remove slack. On all models, with no load applied to cable, lock cable adjuster button by pressing locking button down. Install center console trim. Connect negative battery cable.
  3. Recheck BTSI system. If system does not operate as specified, repeat previous step.

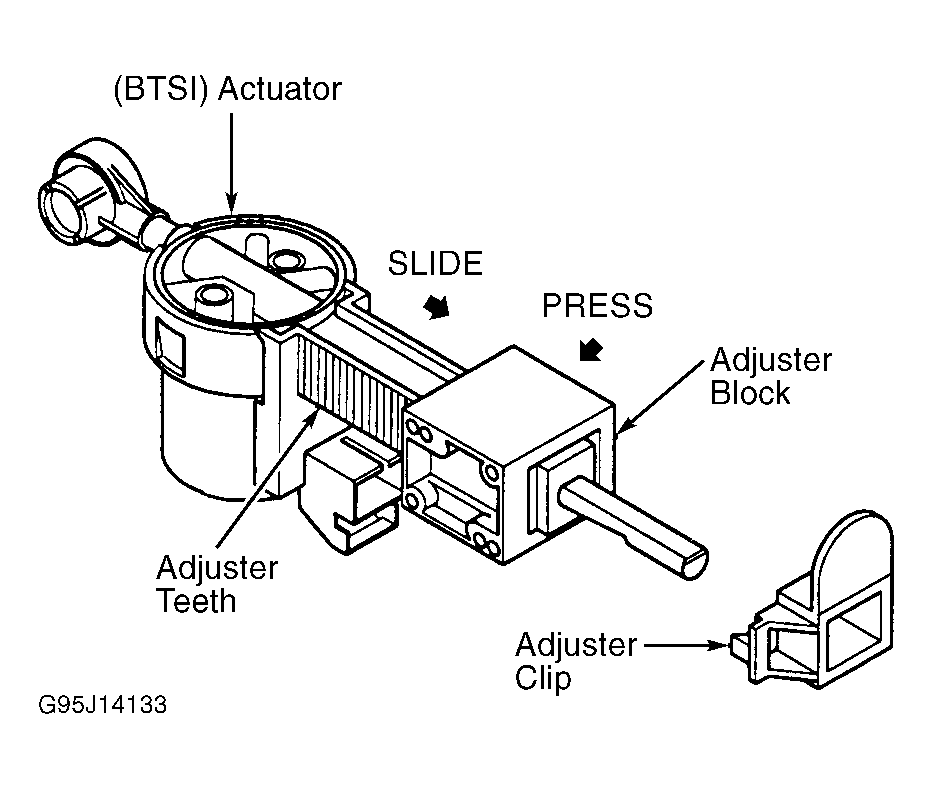

Fig 1: Adjusting BTSI Actuator ("C" & "H" Bodies)
G95J14133Courtesy of GENERAL MOTORS CORP.

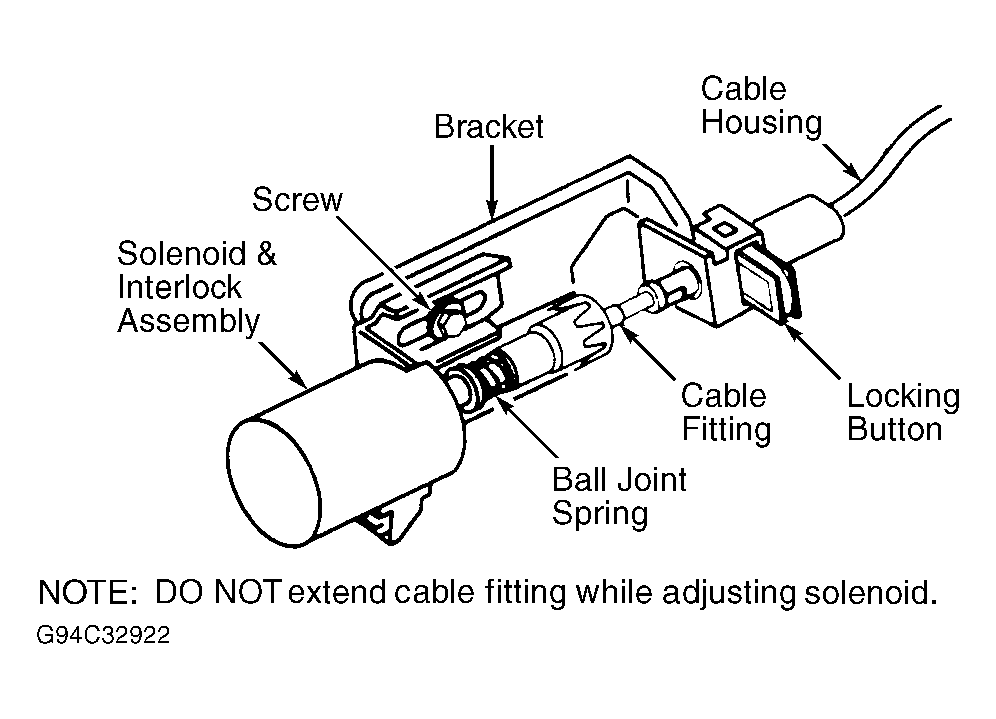

Fig 2: Adjusting Park Lock Cable ("E" & "K" Bodies)
G94C32922Courtesy of GENERAL MOTORS CORP.
