Test Description

WARNING: This page is about a different variant/trim than selected.

The number(s) below refer to the step number(s) on the diagnostic tables.

  1. 2. This step is testing for the correct fluid level.
  2. 4. This step is inspecting for the correct transmission fluid.
  3. 10. This step is inspecting for internal damage or worn parts.

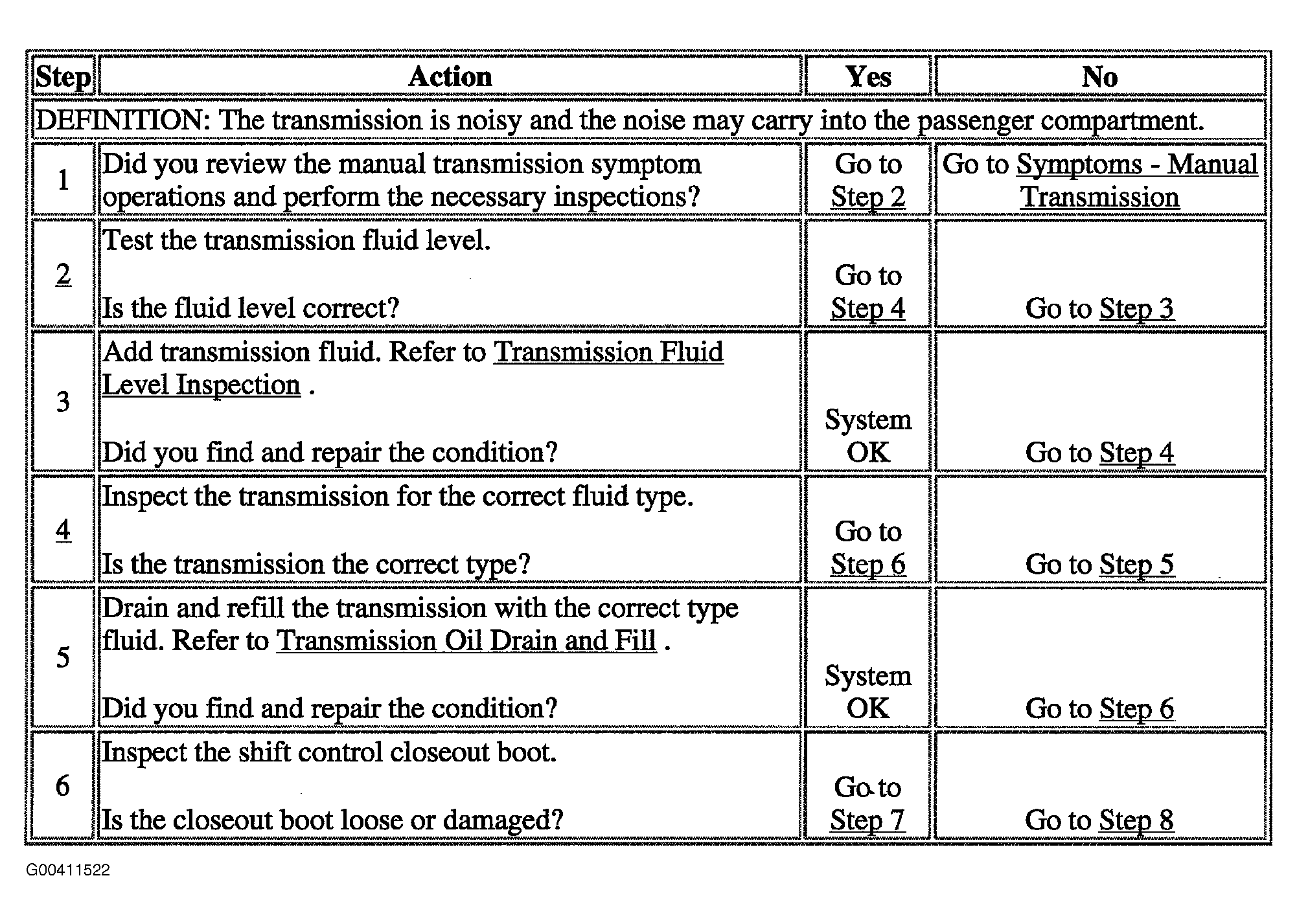

Fig 1: Transmission Noisy (Steps 1 - 6)
G00411522Courtesy of GENERAL MOTORS CORP.

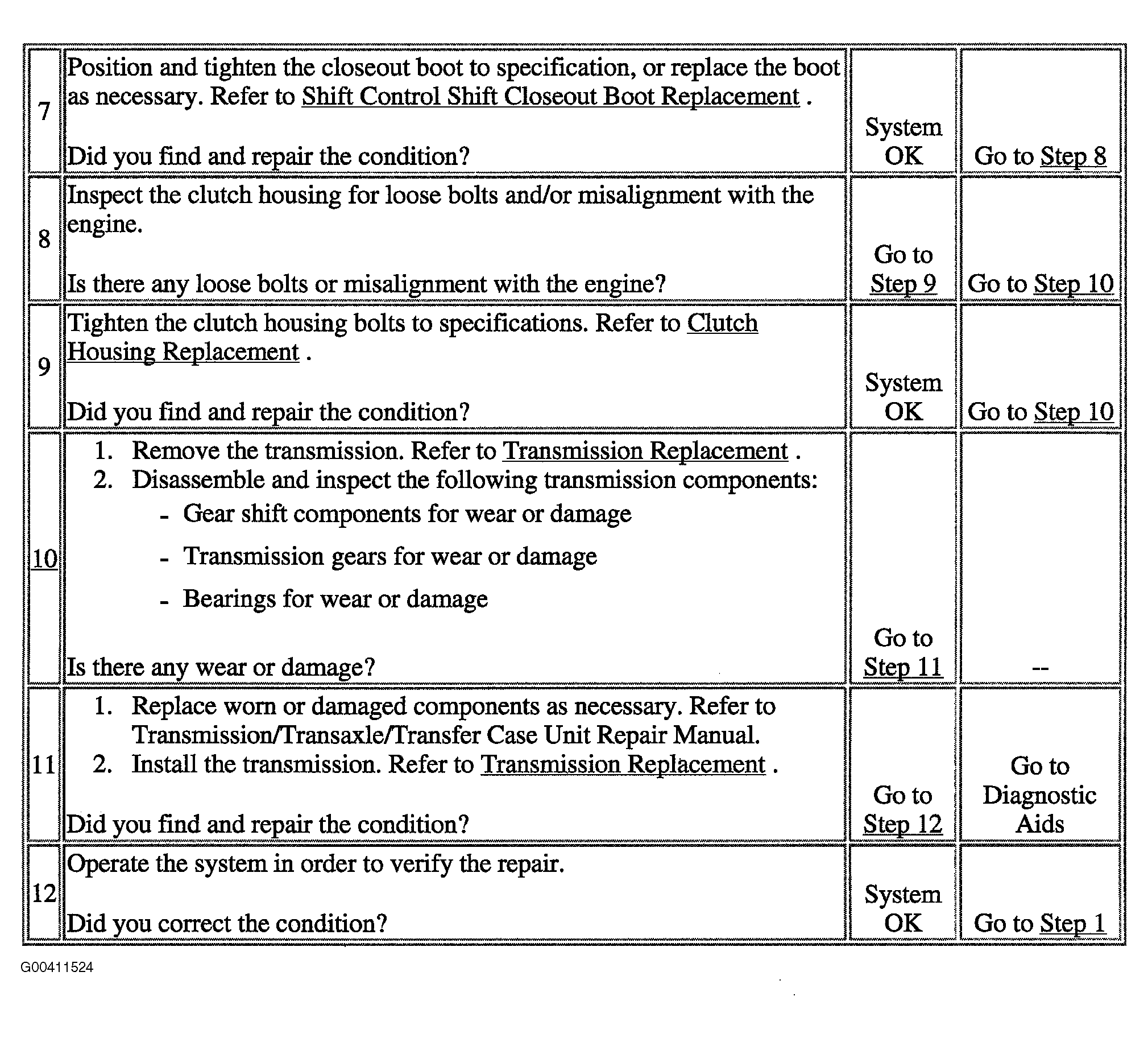

Fig 2: Transmission Noisy (Steps 7 - 12)
G00411524Courtesy of GENERAL MOTORS CORP.
