Test Description

WARNING: This page is about a different variant/trim than selected.

The numbers below refer to the step numbers on the diagnostic table.

  1. 6. This step inspects for a faulty actuator cylinder.
  2. 8. This step inspects for a worn or damaged internal parts.

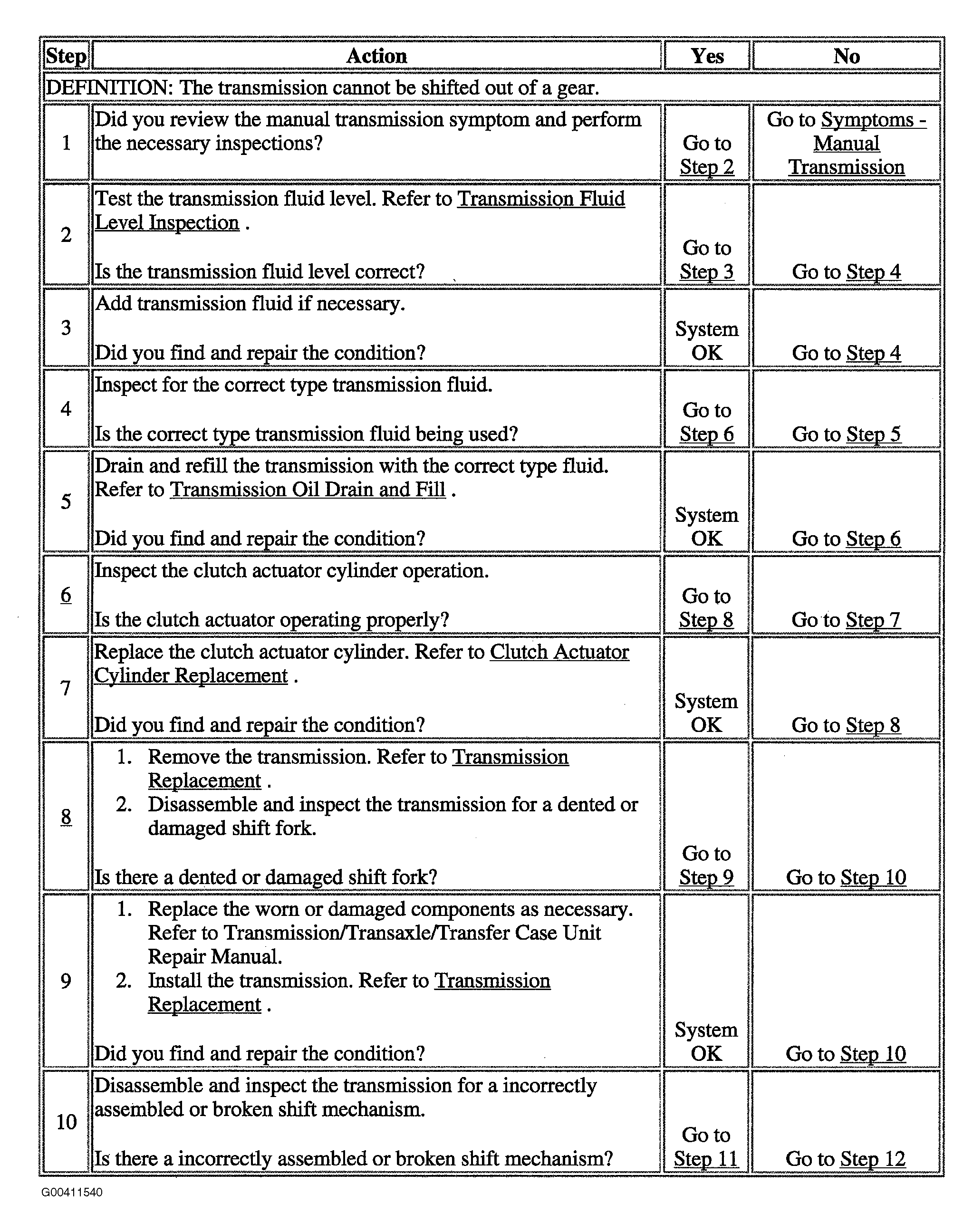

Fig 1: Transmission Locked In One Gear (Steps 1 - 10)
G00411540Courtesy of GENERAL MOTORS CORP.
Fig 2: Transmission Locked In One Gear (Steps 11 - 14)
G00411542Courtesy of GENERAL MOTORS CORP.
