Test Description

WARNING: This page is about a different variant/trim than selected.

The number(s) below refer to the step number(s) on the diagnostic table.

  1. 2. This step inspects for worn or damaged shift control components.
  2. 7. This step inspects for internal parts that may have been worn or damaged.

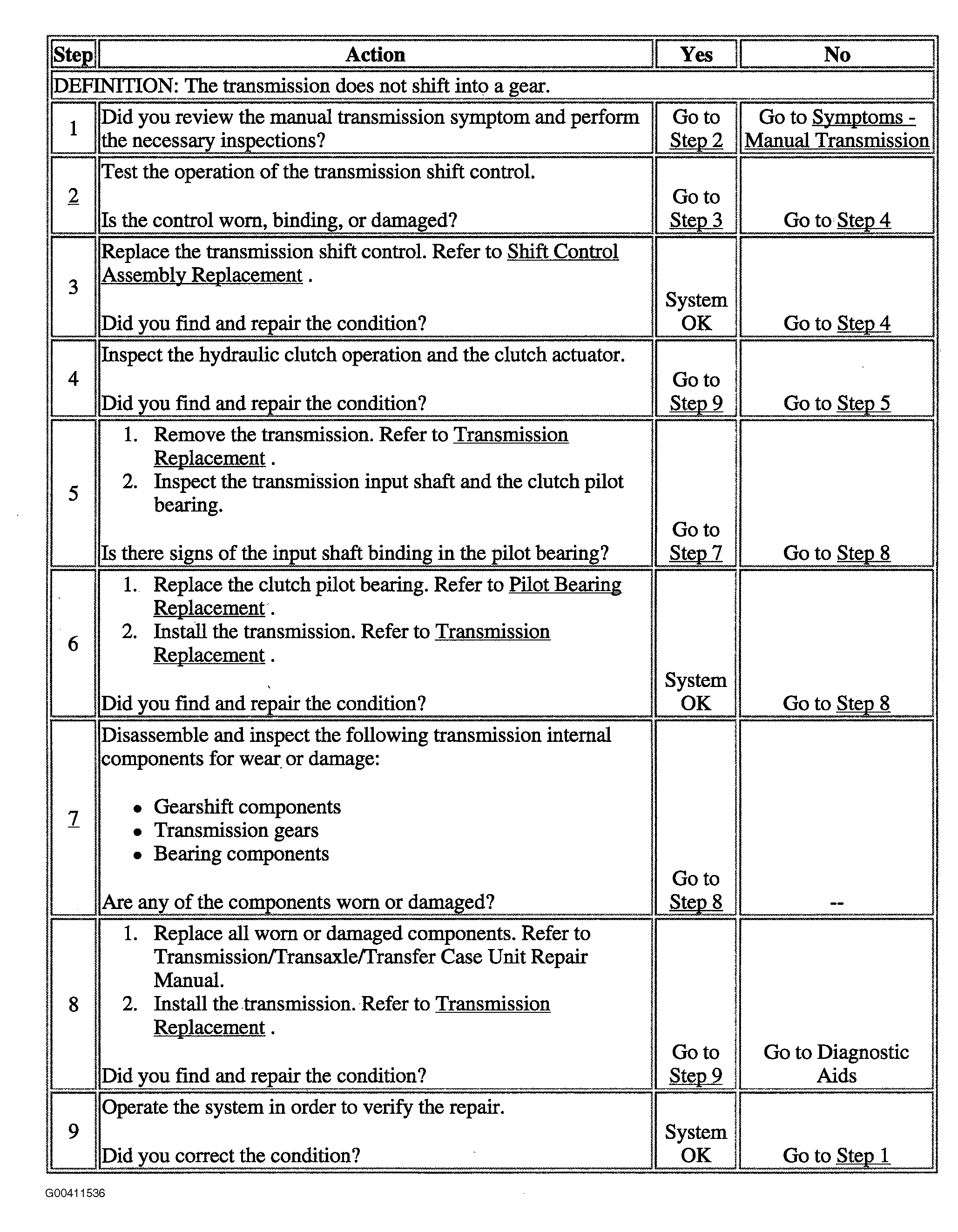

Fig 1: Transmission Does Not Shift Into One Gear (Steps 1 - 9)
G00411536Courtesy of GENERAL MOTORS CORP.
