DTC P0704 - Clutch Switch Circuit

WARNING: This page is about a different variant/trim than selected.

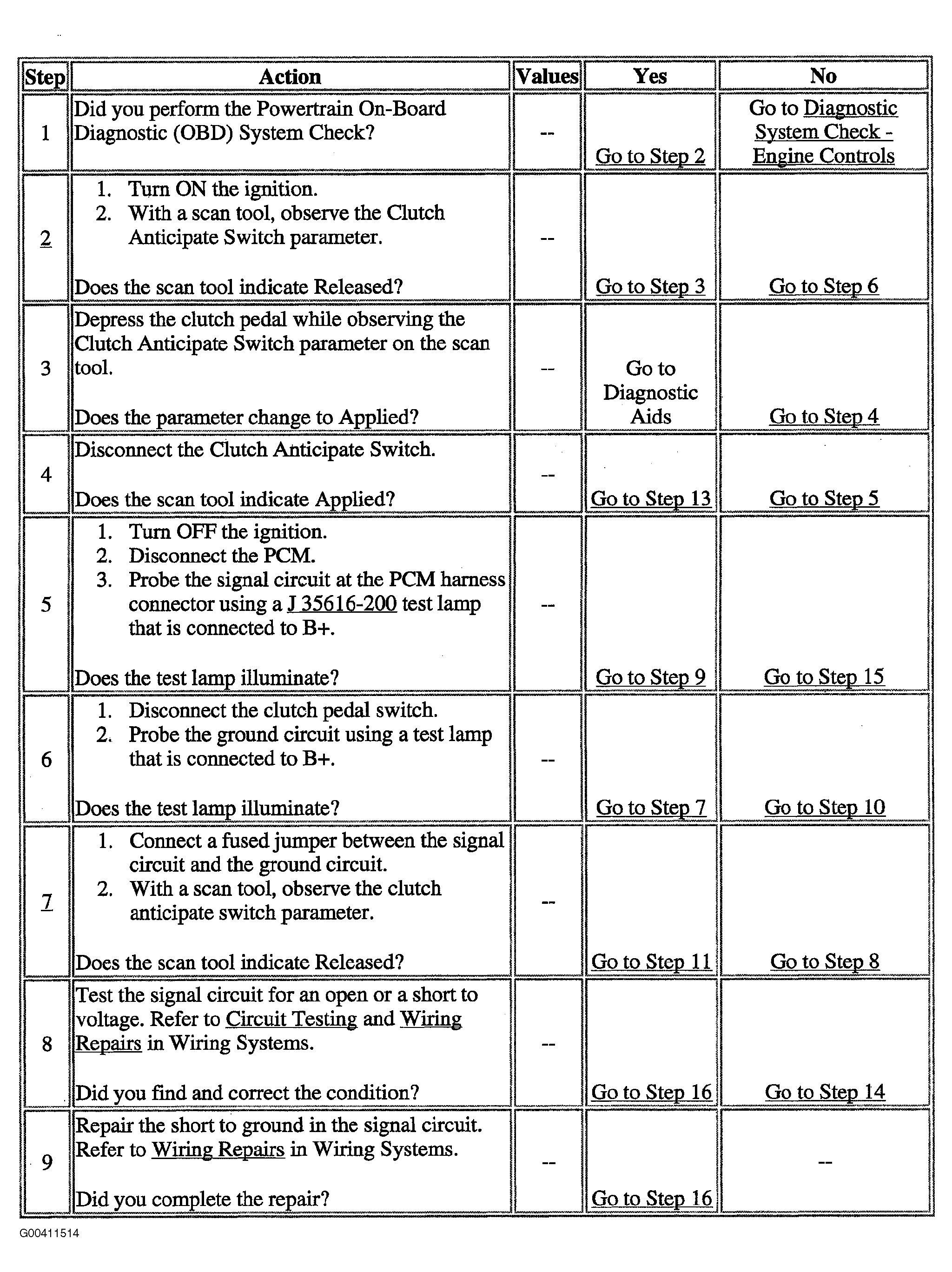

Fig 1: DTC P0704 - Clutch Switch Circuit (Steps 1 - 9)
G00411514Courtesy of GENERAL MOTORS CORP.

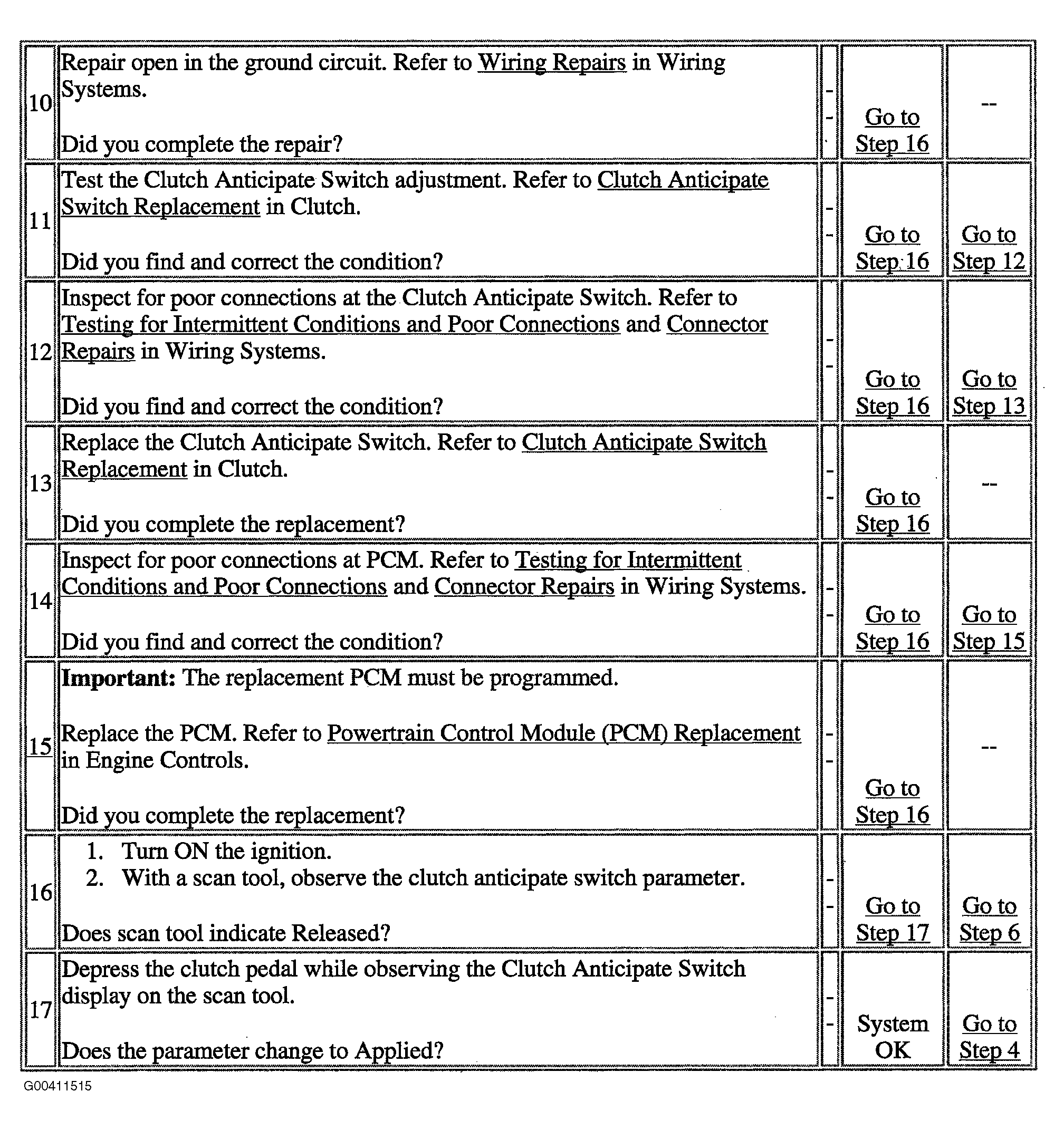

Fig 2: DTC P0704 - Clutch Switch Circuit (Steps 10 - 17)
G00411515Courtesy of GENERAL MOTORS CORP.
