DTC P0500 - Vehicle Speed Sensor Circuit

WARNING: This page is about a different variant/trim than selected.

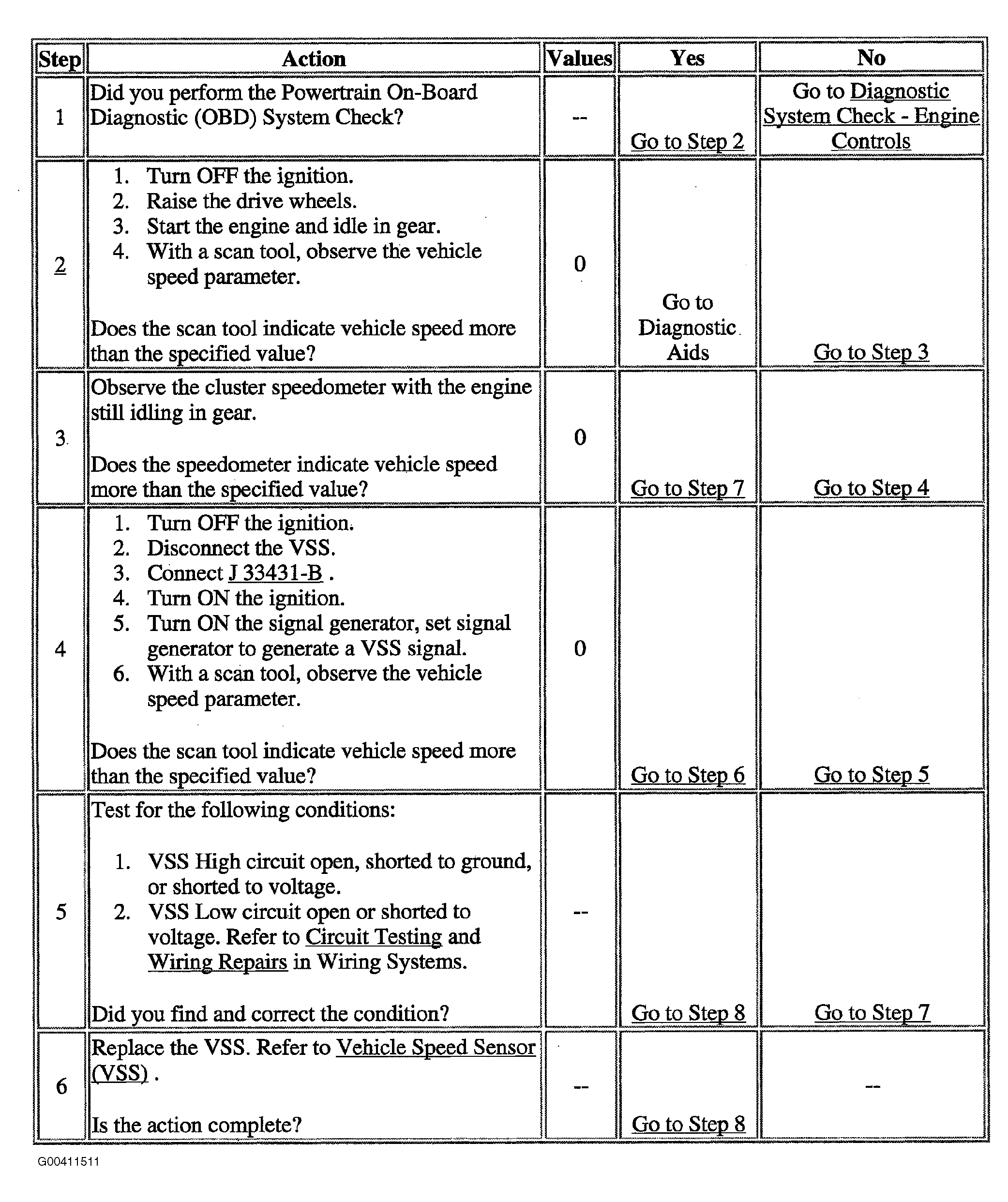

Fig 1: DTC P0500 - Vehicle Speed Sensor Circuit (Steps 1 - 6)
G00411511Courtesy of GENERAL MOTORS CORP.

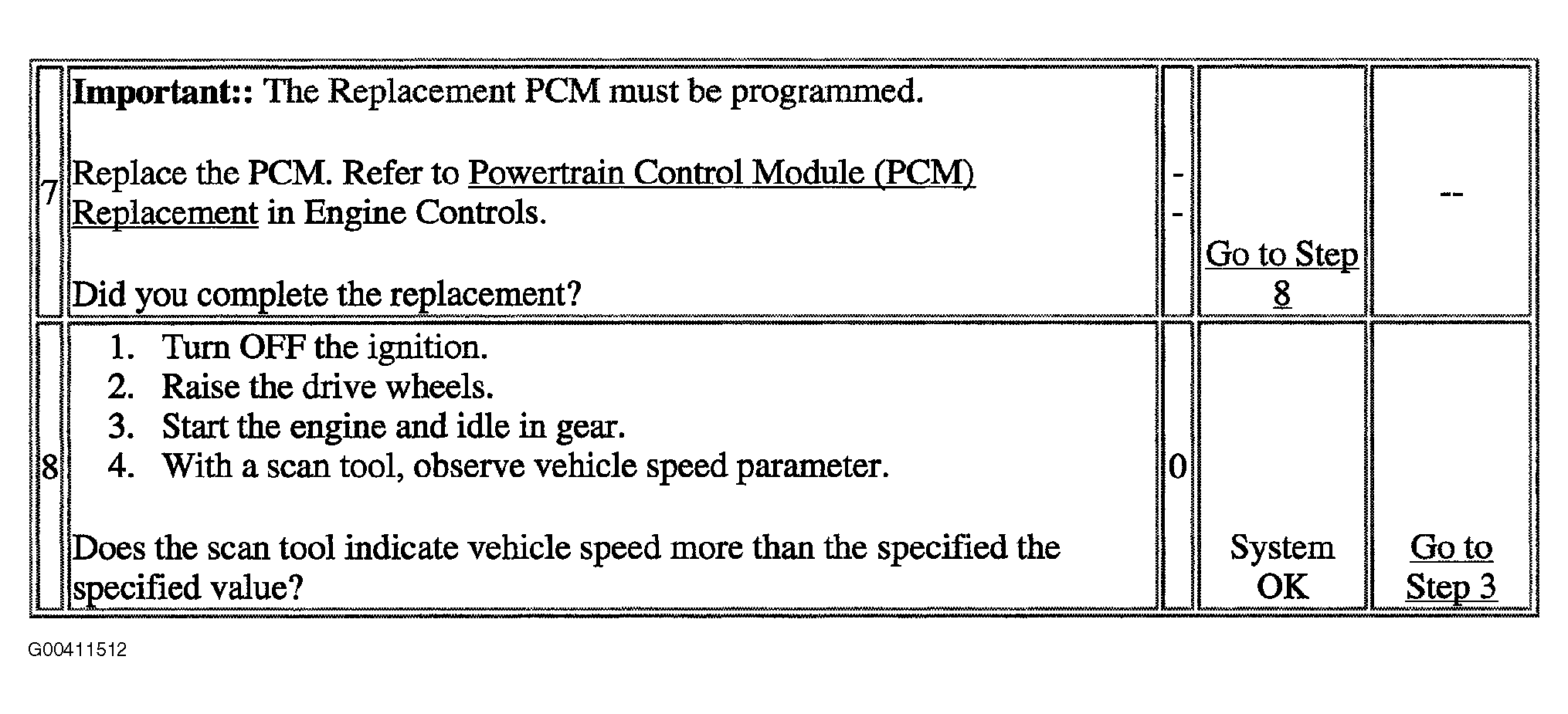

Fig 2: DTC P0500 - Vehicle Speed Sensor Circuit (Steps 7 - 8)
G00411512Courtesy of GENERAL MOTORS CORP.
