Manual Transmission Connector End Views

WARNING: This page is about a different variant/trim than selected.

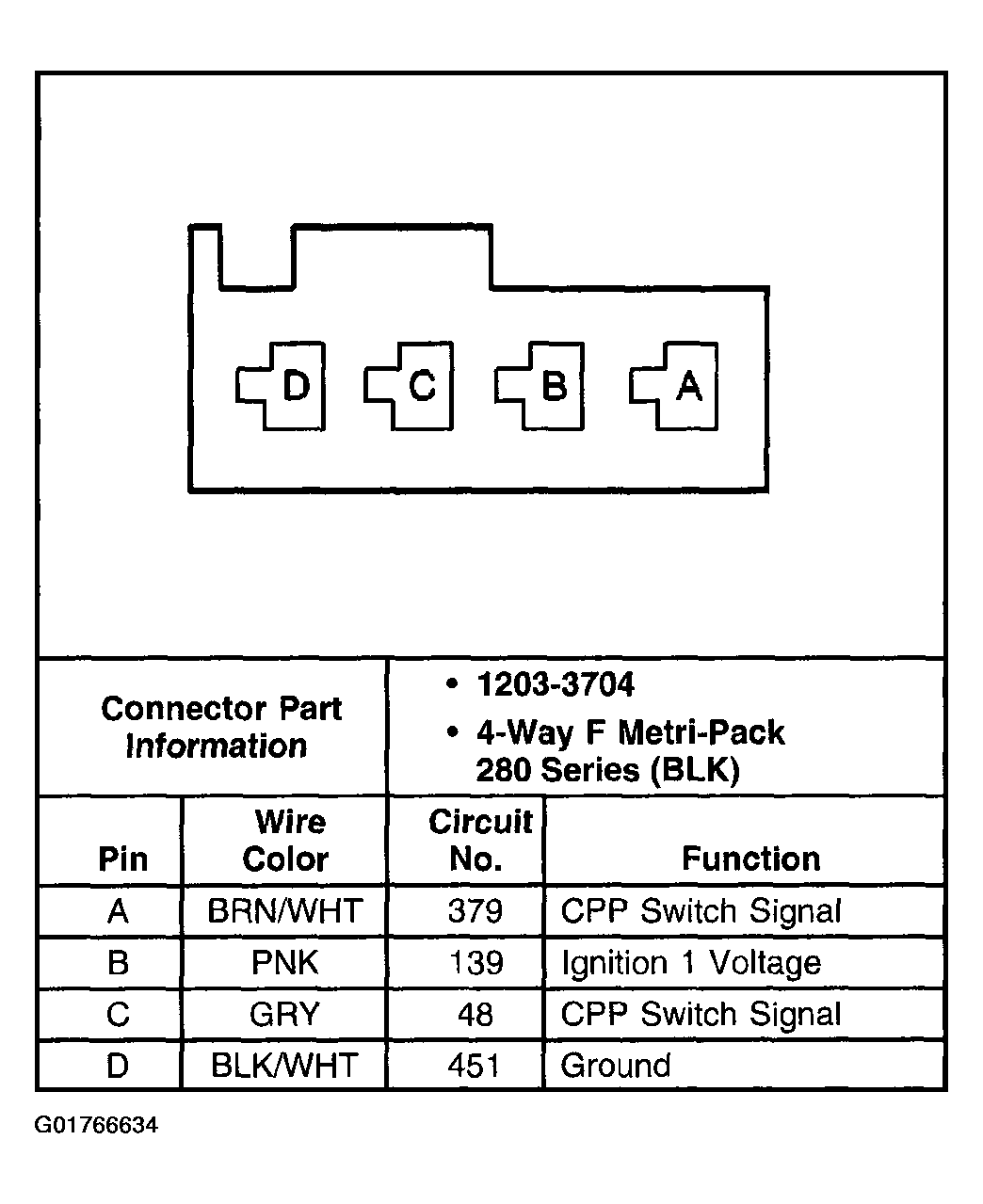

Fig 1: Clutch Pedal Position (CPP) Switch

G01766634

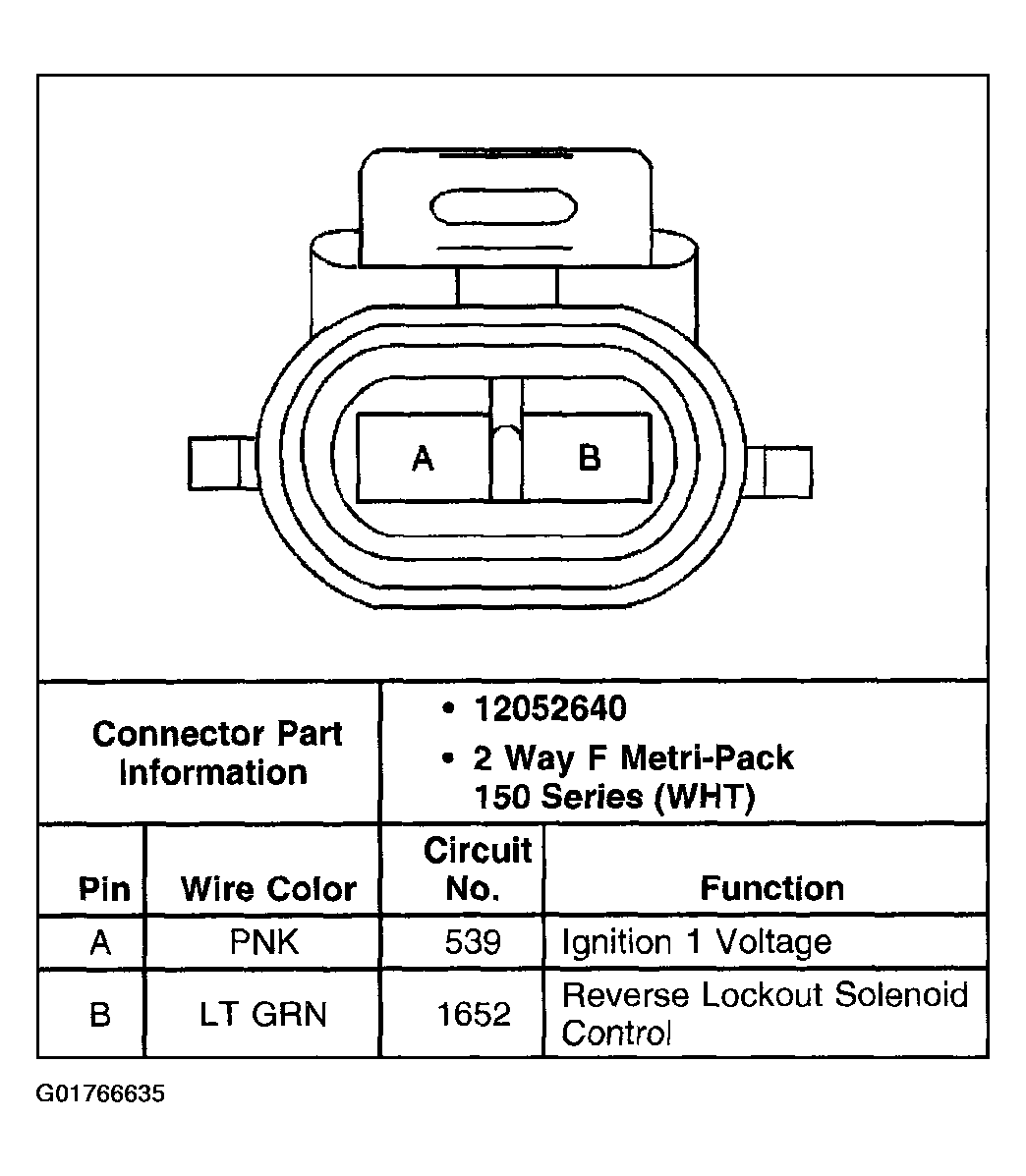

Fig 2: Reverse Lockout Solenoid

G01766635

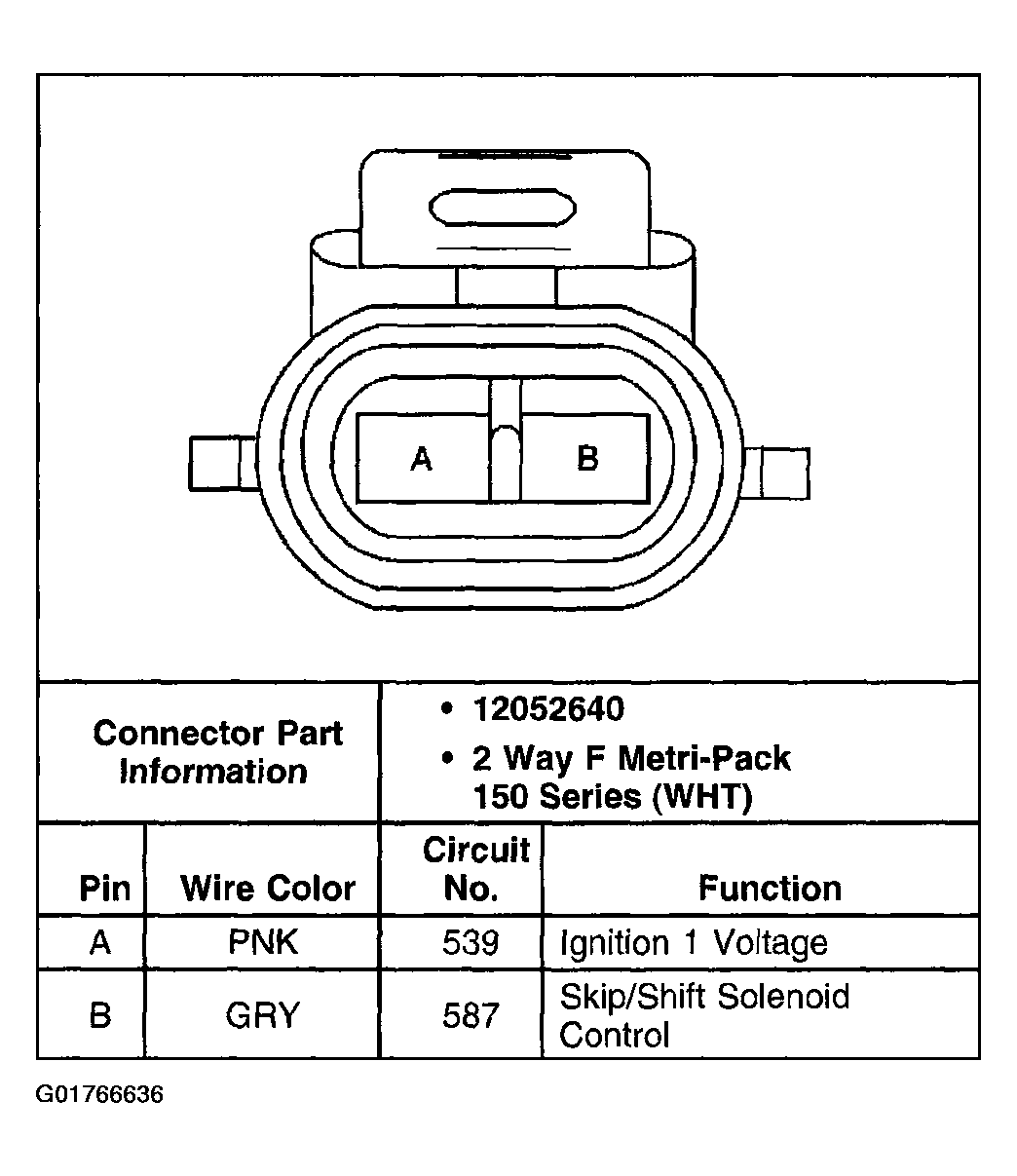

Fig 3: Skip Shift Solenoid

G01766636

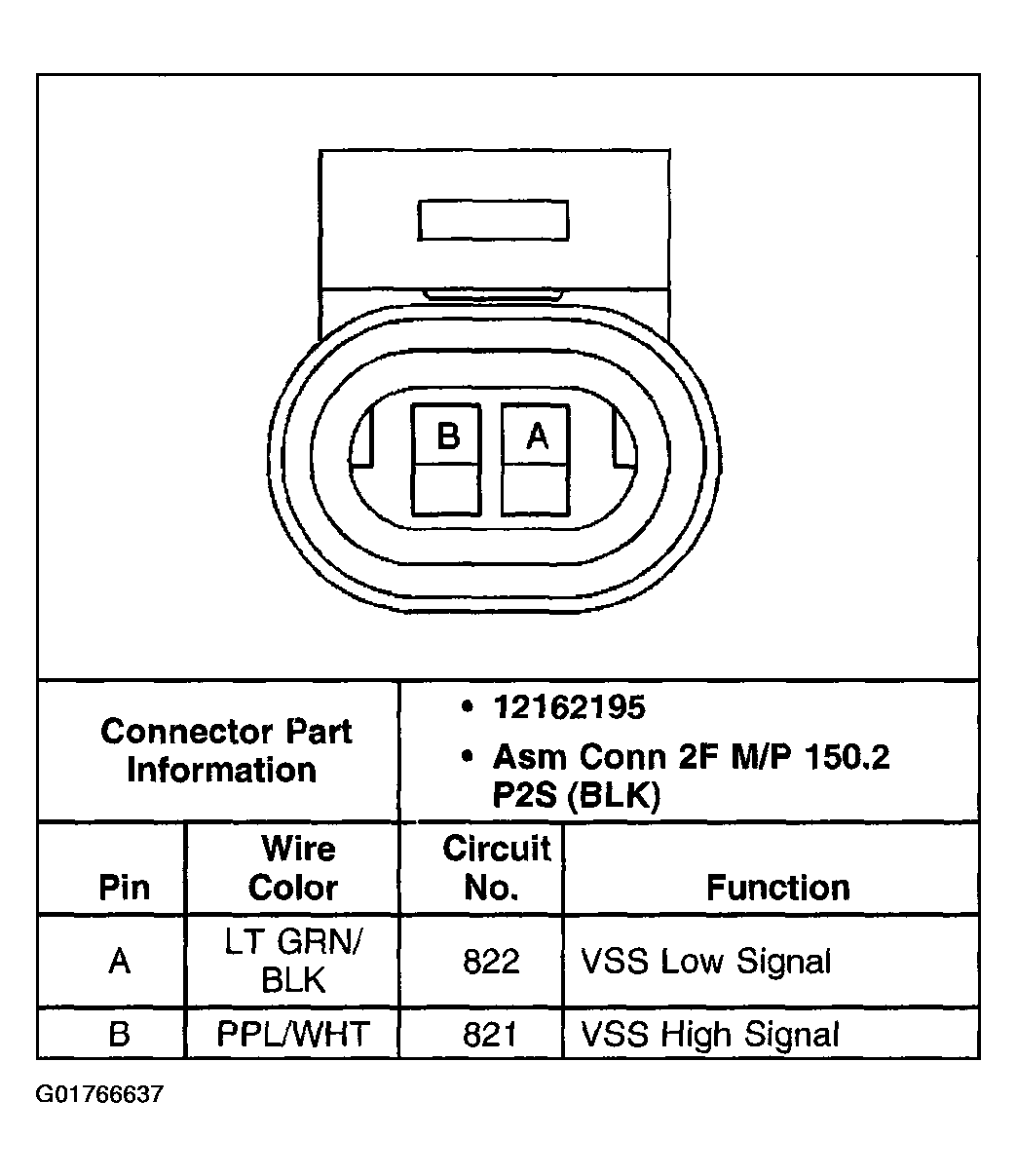

Fig 4: Vehicle Speed Sensor

G01766637
