Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Raise and suitably support the vehicle. Refer to
  2. Disconnect the vehicle speed sensor electrical connector (3).

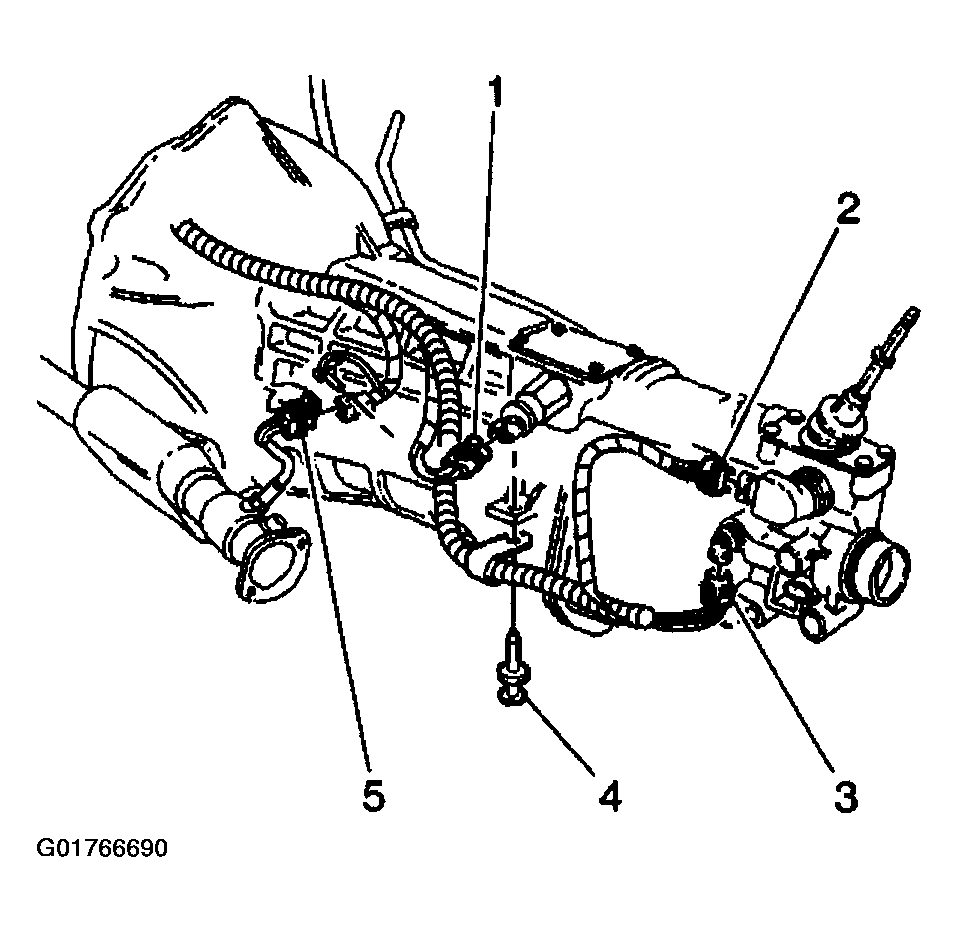

    Fig 1: Disconnecting Vehicle Speed Sensor Electrical Connector
    G01766690
  3. Remove the attaching bolt and the vehicle speed sensor.
  4. Remove the vehicle speed sensor.

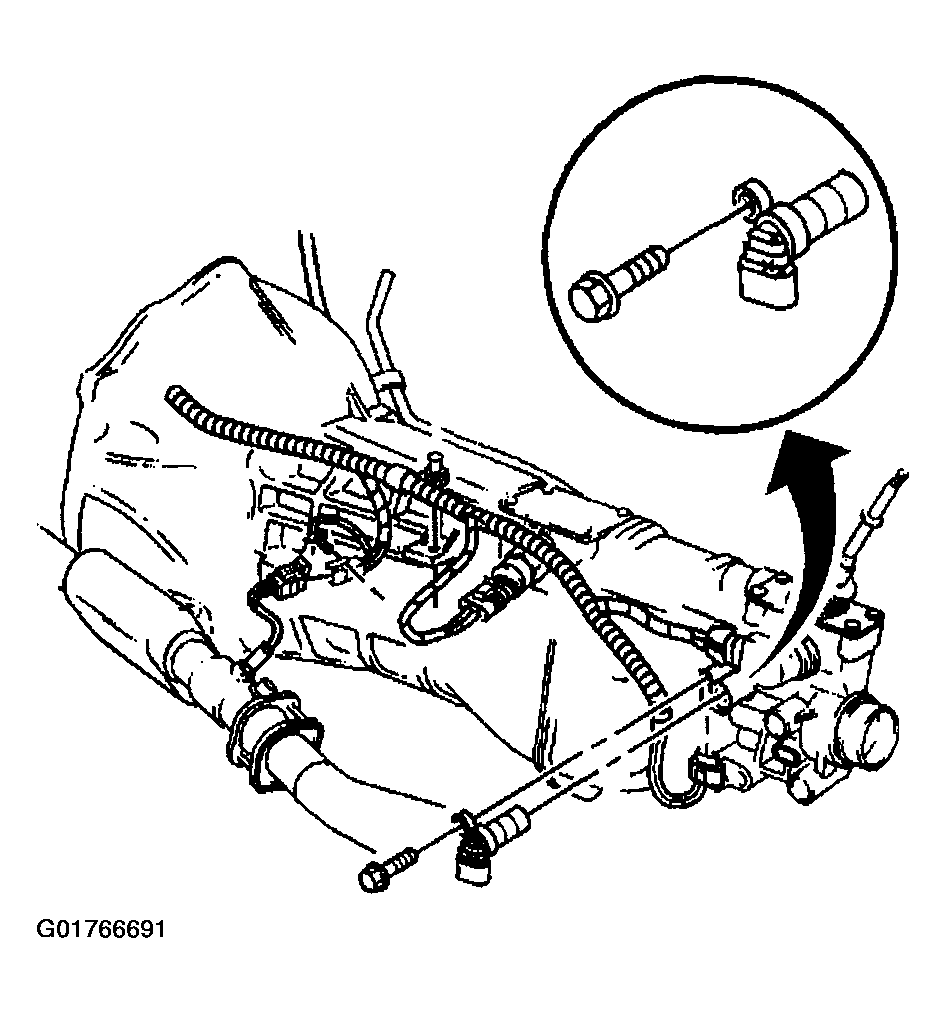

    Fig 2: Removing Vehicle Speed Sensor
    G01766691
