Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission mount. Refer to TRANSMISSION MOUNT REPLACEMENT .
  2. Remove the propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT - ONE PIECE .
  3. Remove the torque arm.
  4. Lower the tail shaft of the transmission enough to access the transmission bolt (2).
  5. Remove the transmission bolt (2).
  6. Remove the vent tube (3) from the vent pipe.

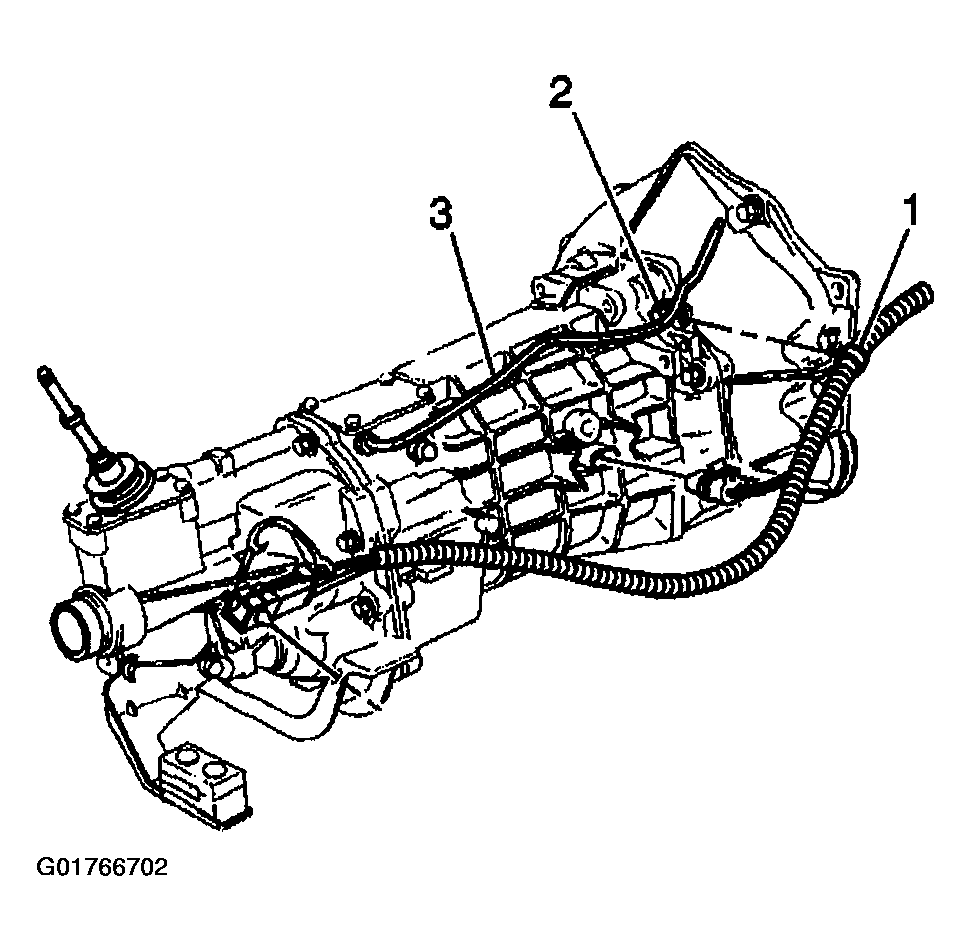

    Fig 1: Removing Transmission Bolt And Vent Tube
    G01766702
