Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the vent tube (3) to the vent pipe.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  2. Install the transmission bolt (2).

    Tighten

    Tighten the transmission bolt (2) to 50 N.m (37 ft lbs).

  3. Raise the tail shaft of the transmission.
  4. Install the torque arm.
  5. Install the propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT - ONE PIECE .
  6. Install the transmission mount. Refer to TRANSMISSION MOUNT REPLACEMENT .

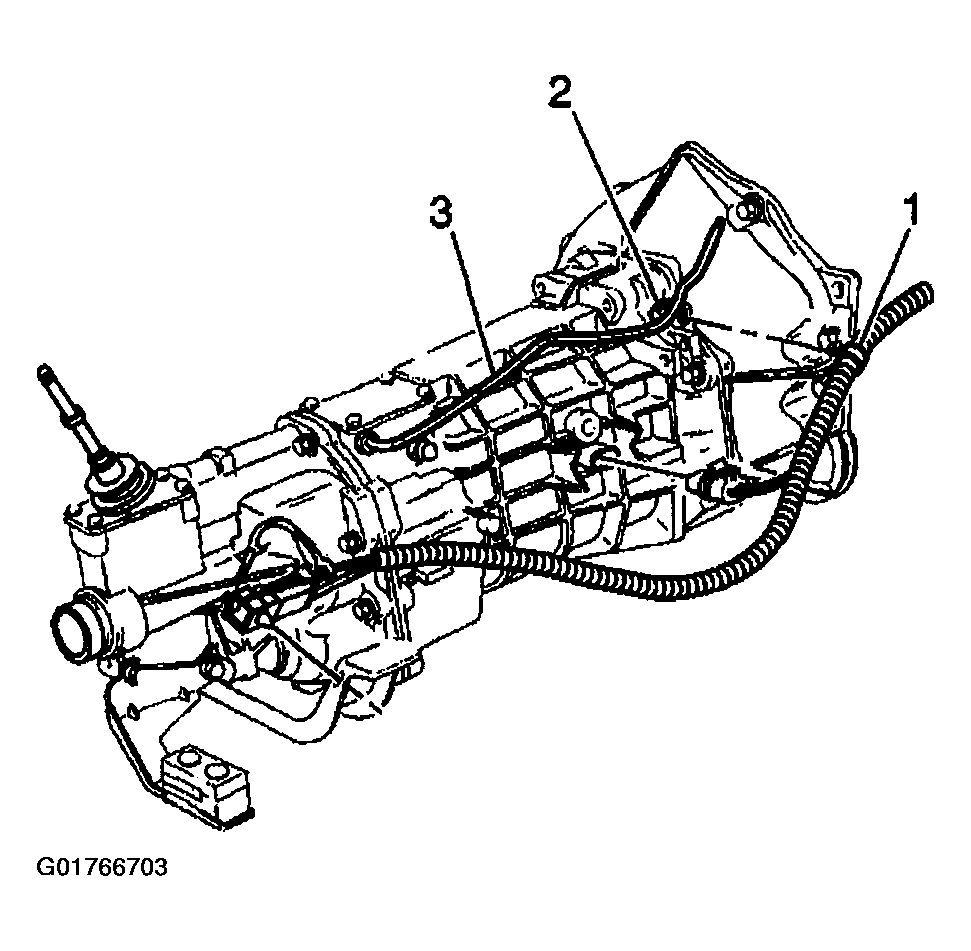

    Fig 1: Installing Transmission Bolt
    G01766703
