Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Raise and suitably support the vehicle.
  2. Support the transmission with a transmission jack.
  3. Remove the transmission mount nut (2) and washer.
    Fig 1: Removing Transmission Mount Nut And Washer
    G01766668
  4. Remove the transmission support bolts (2).
  5. Remove the transmission support (1).

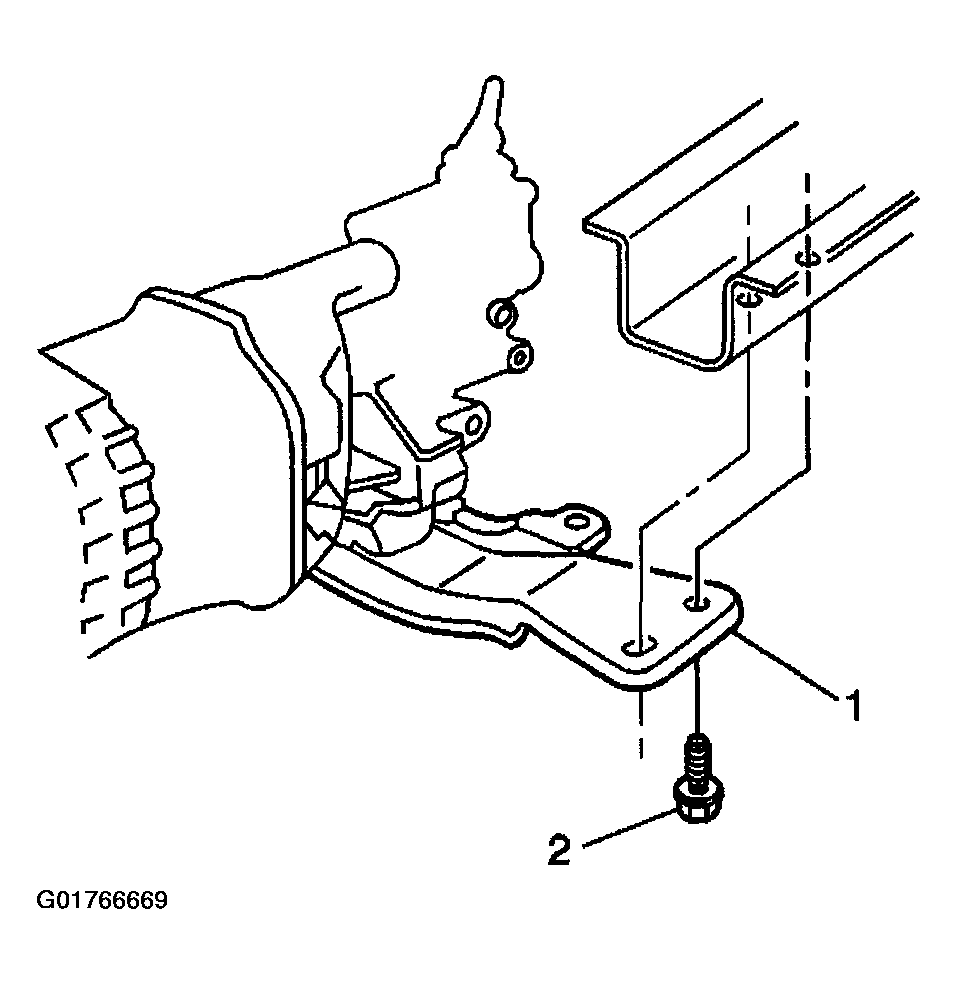

    Fig 2: Removing Transmission Support Bolts
    G01766669
  6. Remove the transmission mount bolts.
  7. Remove the transmission mount.

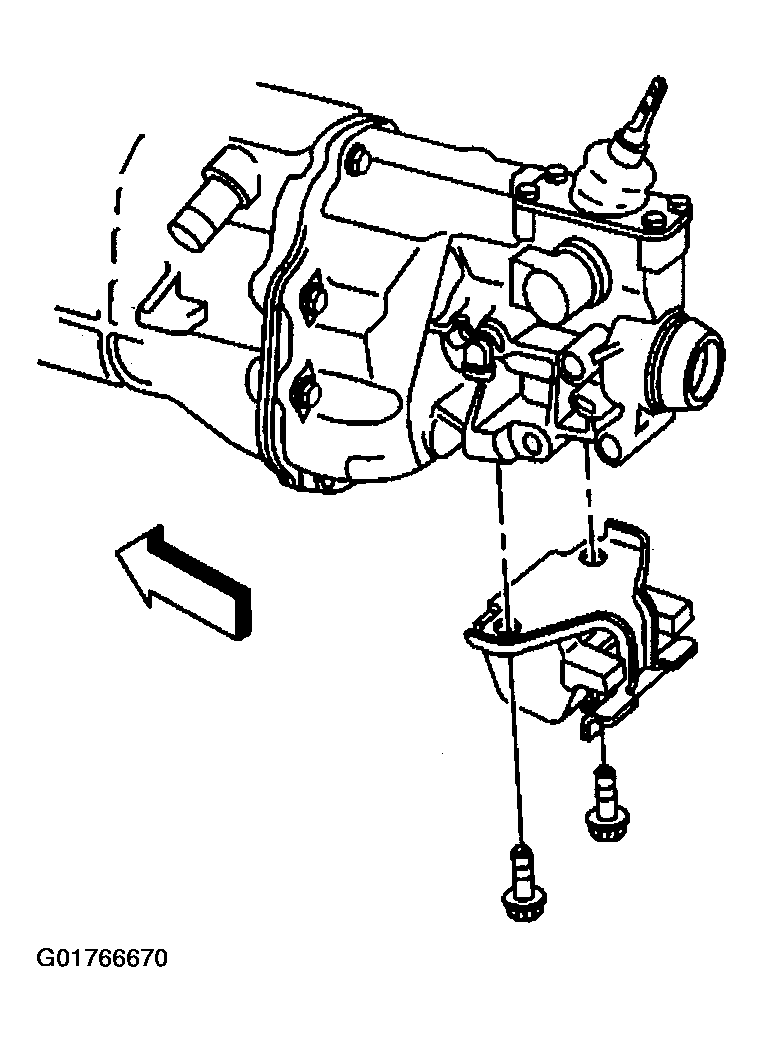

    Fig 3: Removing Transmission Mount Bolts
    G01766670
