Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the transmission mount.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  2. Install the transmission mount bolts.

    Tighten

    Tighten the transmission mount bolts to 48 N.m (36 ft lbs).

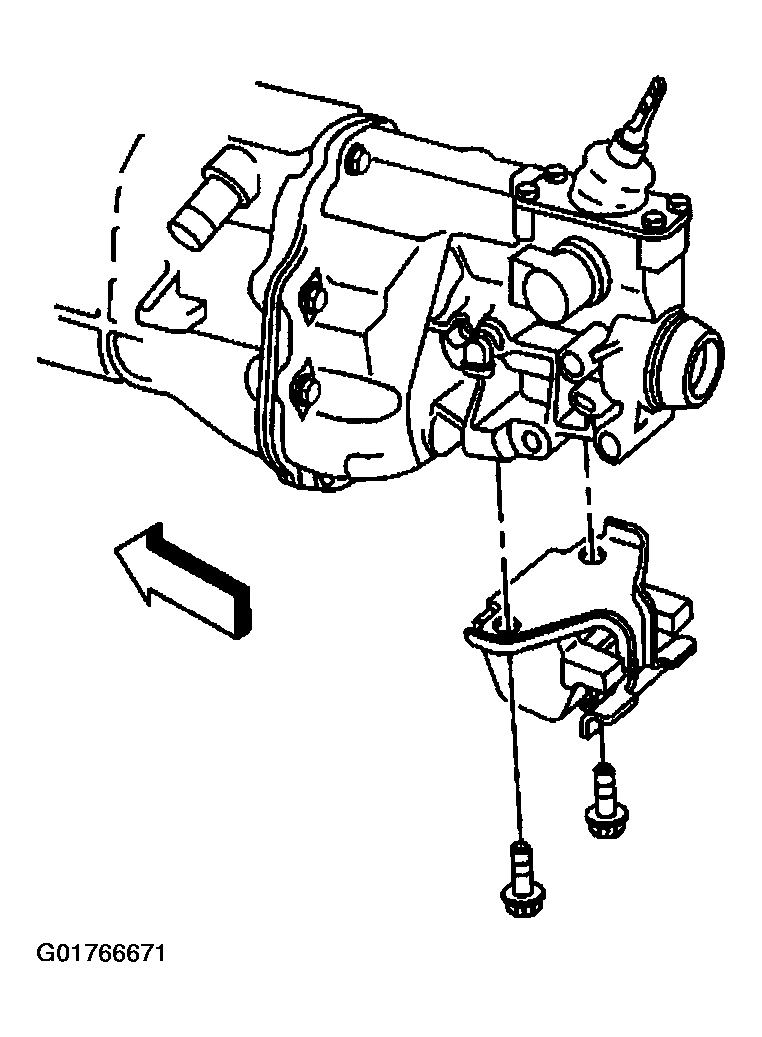

    Fig 1: Tightening Transmission Mount Bolts
    G01766671
  3. Install the transmission support (1).
  4. Install the transmission support bolts (2).

    Tighten

    Tighten the transmission support bolts (2) to 90 N.m (66 ft lbs).

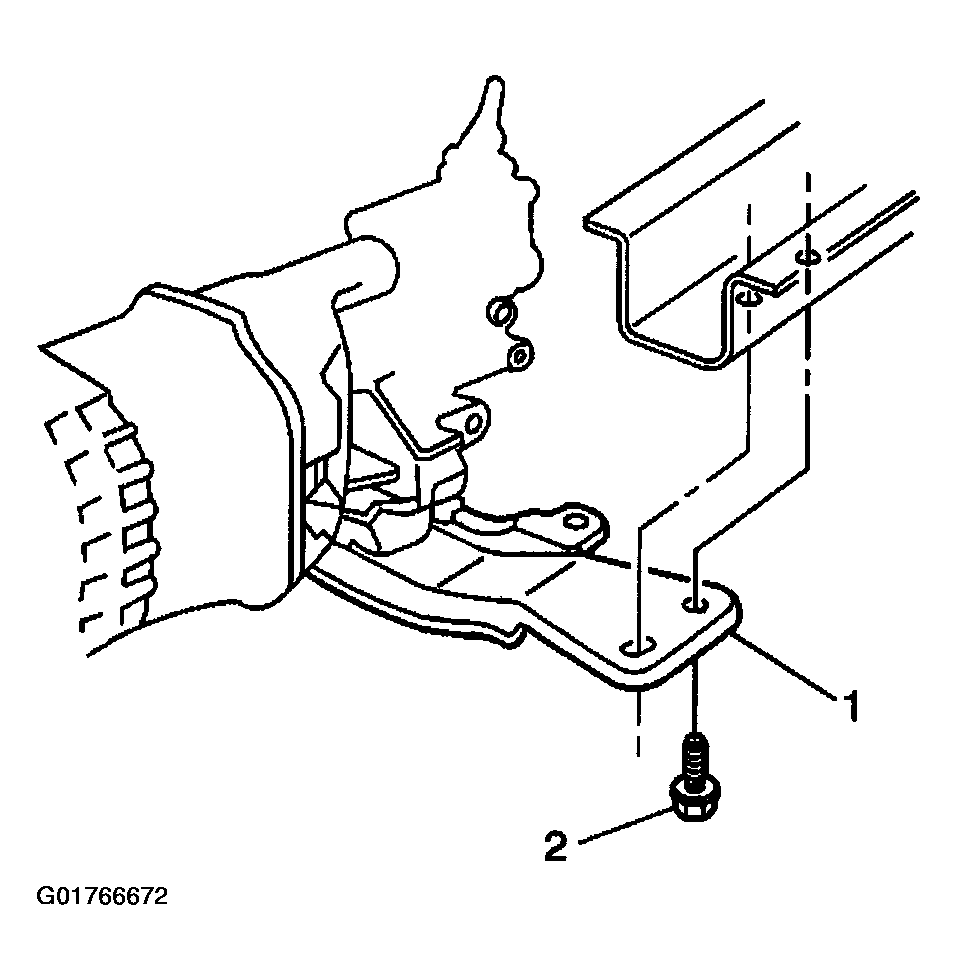

    Fig 2: Installing Transmission Support
    G01766672
  5. Install the transmission mount nut (2) and washer.

    Tighten

    Tighten the transmission mount nut (2) to 105 N.m (77 ft lbs).

  6. Remove the transmission jack.
  7. Lower the vehicle.
    Fig 3: Installing Transmission Mount Nut And Washer
    G01766673
