Filling Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Clean away all dirt and debris from the transmission fluid fill plug area.
  2. Remove the transmission fluid fill plug.
  3. Fill the transmission with DEXRON®-III transmission fluid, until even with the bottom of the fill plug hole.
  4. Install the transmission fluid fill plug.

    Tighten

    Tighten the transmission fluid fill plug to 27 N.m (20 ft lbs).

  5. Lower the vehicle.

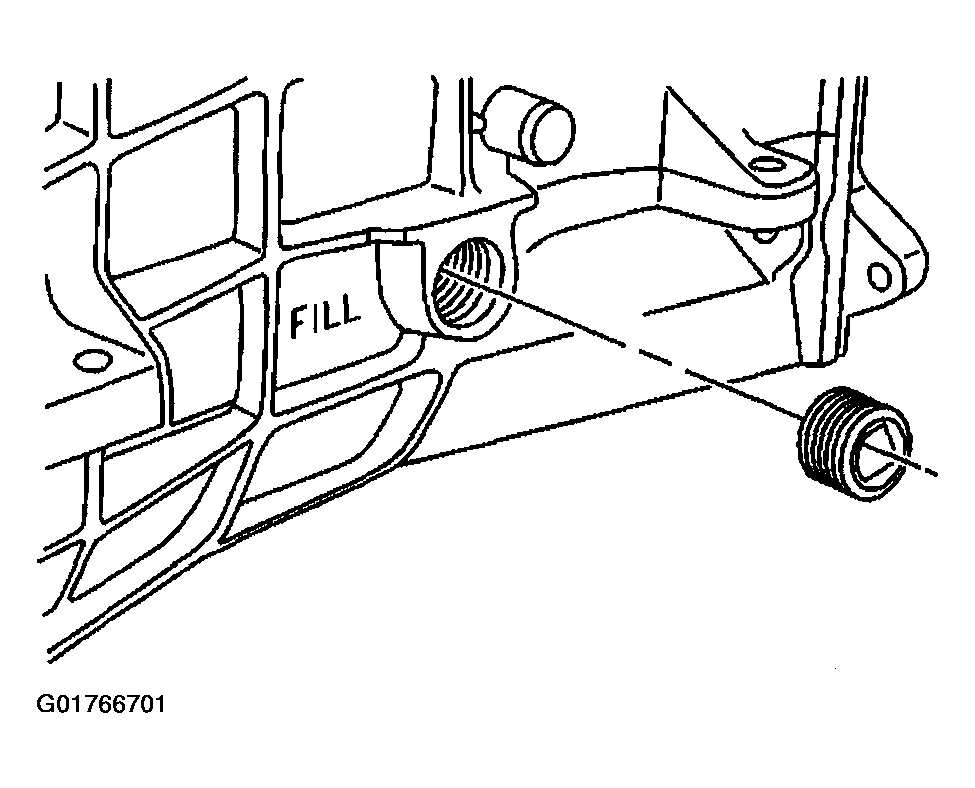

    Fig 1: Removing Transmission Fluid Fill Plug
    G01766701
