Draining Procedure
WARNING: This page is about a different variant/trim than selected.

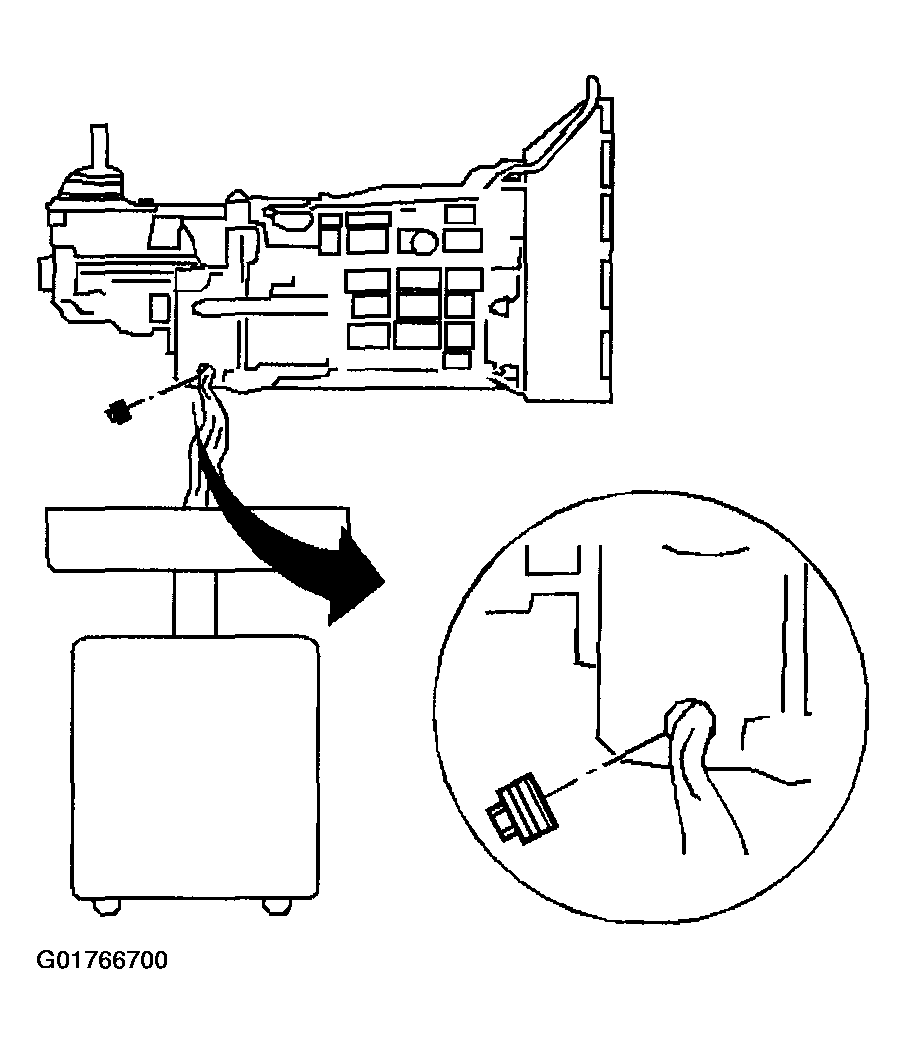

- Raise and suitably support the vehicle.
- Clean away all dirt and debris from the transmission fluid drain plug area.
- Remove the drain plug.
- Allow the system to drain.NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
- Install the transmission fluid drain plug.
Tighten
Tighten the transmission fluid drain plug to 27 N.m (20 ft lbs).
