Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the control lever handle. Refer to CONTROL LEVER HANDLE ASSEMBLY REPLACEMENT .
  2. Remove the shift control closeout boot bolts (1).
  3. Remove the shift control closeout boot (2).

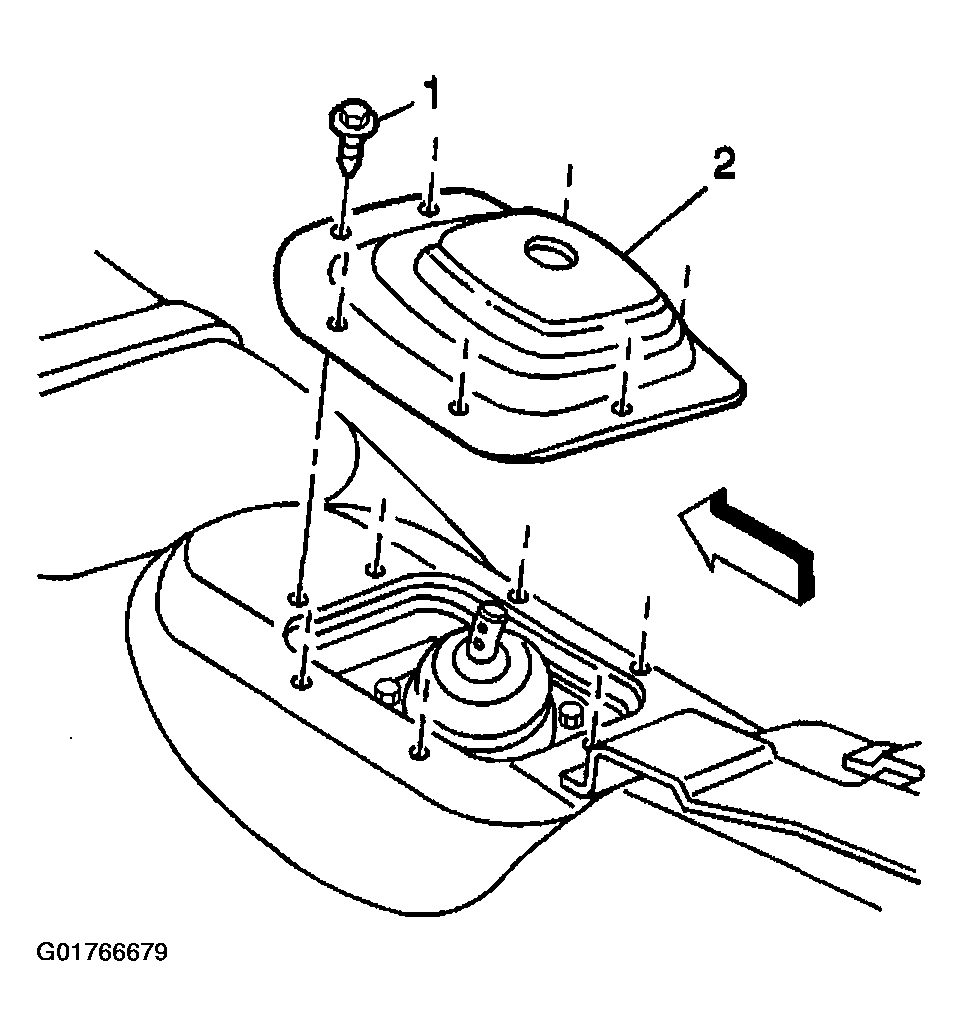

    Fig 1: Removing Shift Control Closeout Boot Bolts
    G01766679
