Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the shift control closeout boot. Refer to Shift Control Shift Closeout Boot Replacement .
  2. Remove the control lever boot (1) from the control lever (2).

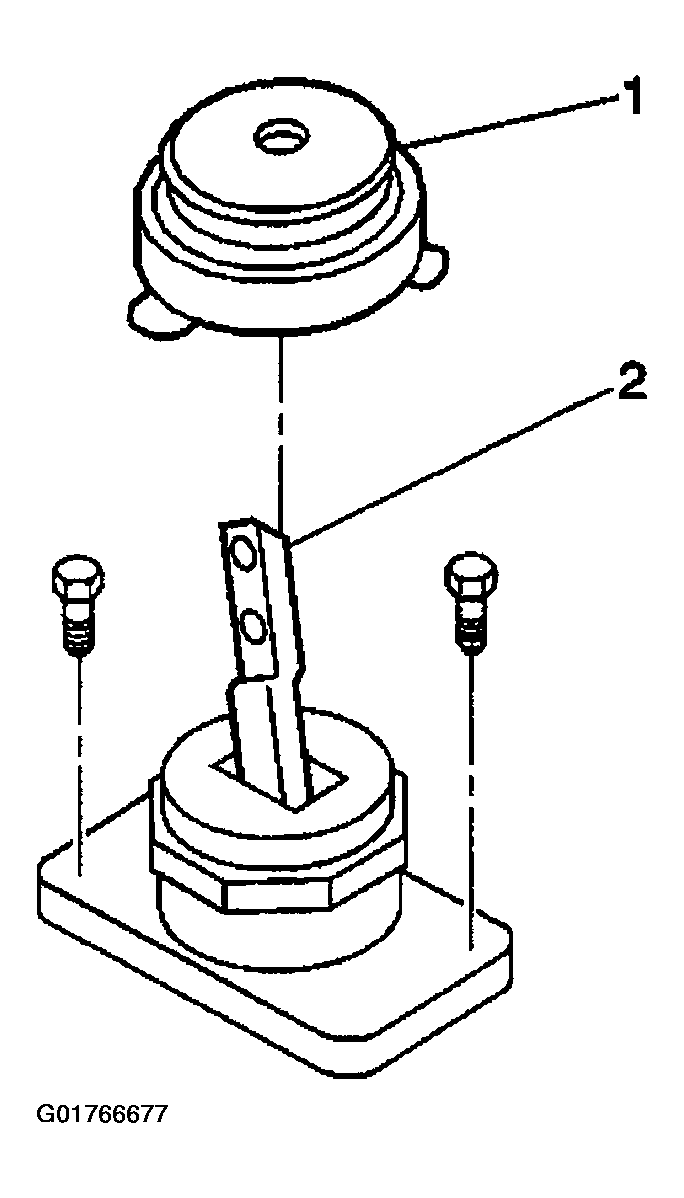

    Fig 1: Removing Control Lever Boot
    G01766677
