Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Raise and suitably support the vehicle.
  2. Remove the reverse lockout solenoid electrical connector (2).
  3. Place a drain pan under the transmission in case any fluid drips out.

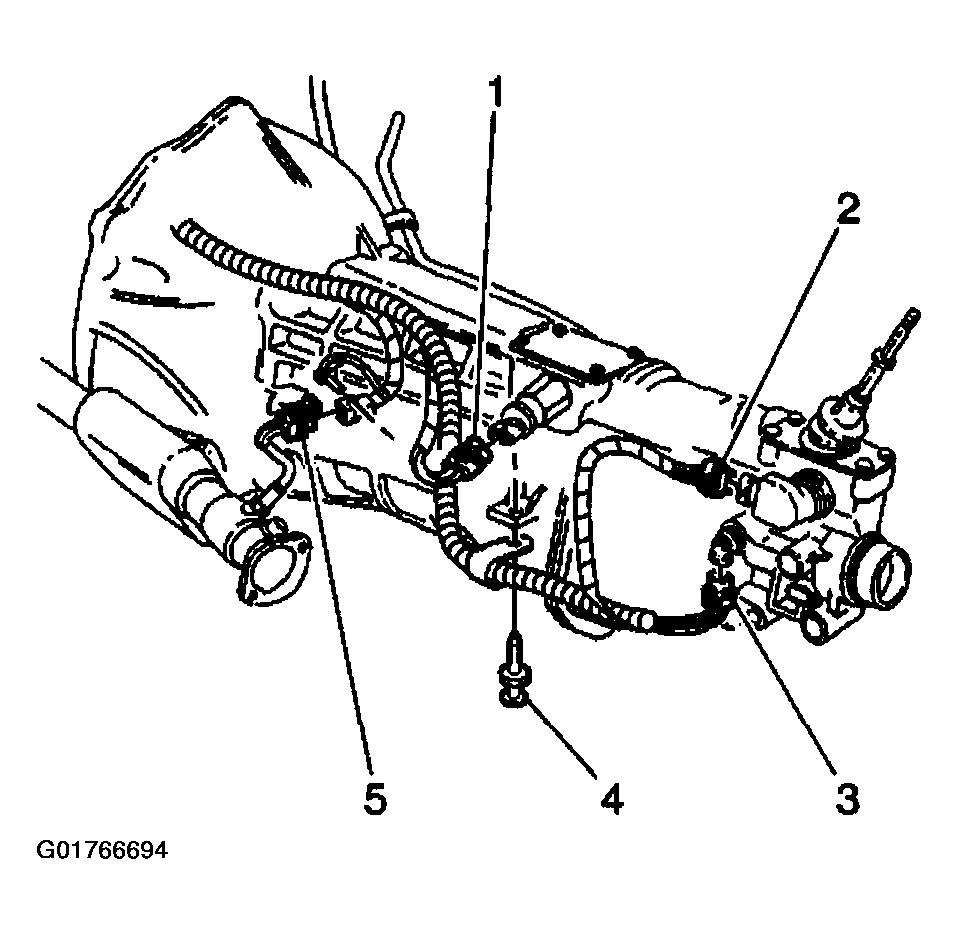

    Fig 1: Removing Reverse Lockout Solenoid Electrical Connector
    G01766694
  4. Remove the reverse lockout solenoid using J 41099.
  5. Remove the reverse lockout assembly bolt.
  6. Remove the reverse lockout assembly, if necessary.

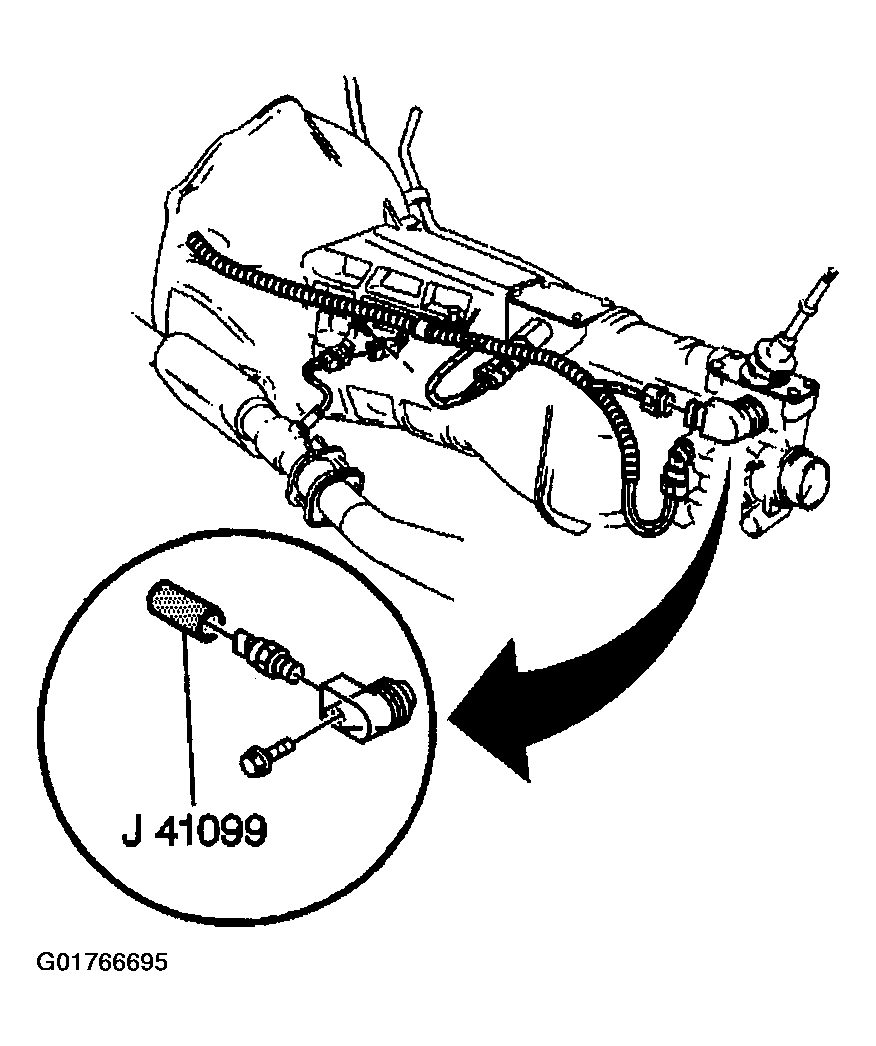

    Fig 2: Removing Reverse Lockout Solenoid
    G01766695
