Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT - ONE PIECE .
  2. Remove the main shaft seal using J 23907 and J 26941.

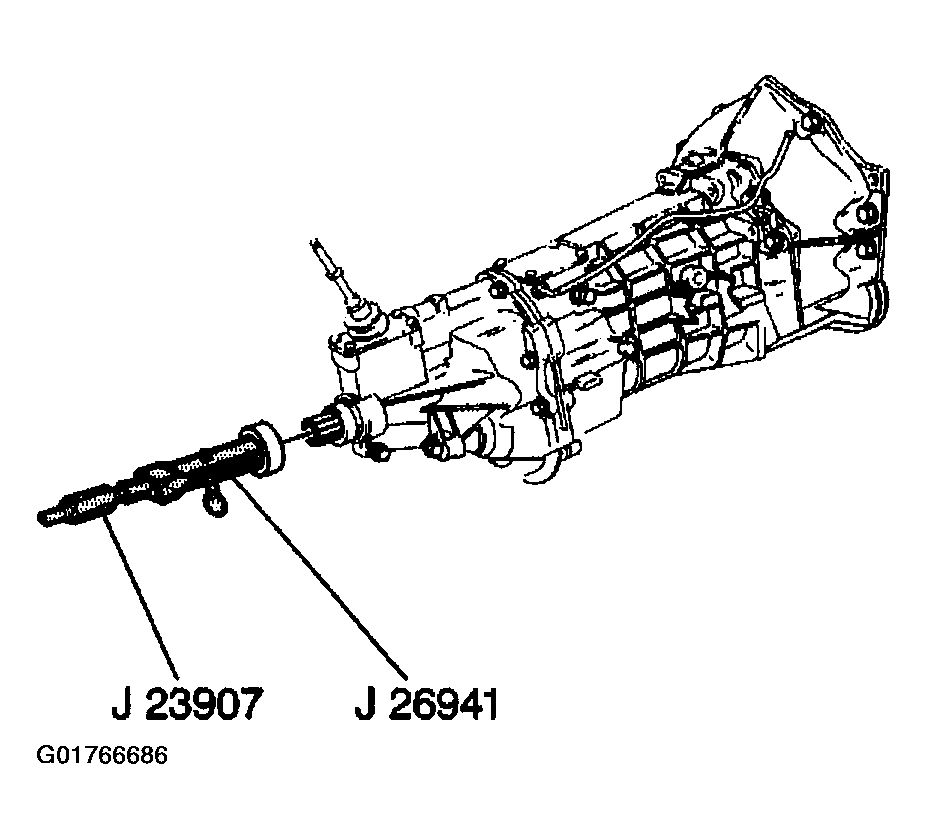

    Fig 1: Removing Main Shaft Seal
    G01766686
