Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the front floor console.
  2. Remove the control lever handle bolt (2).
  3. Remove the control lever handle (1).

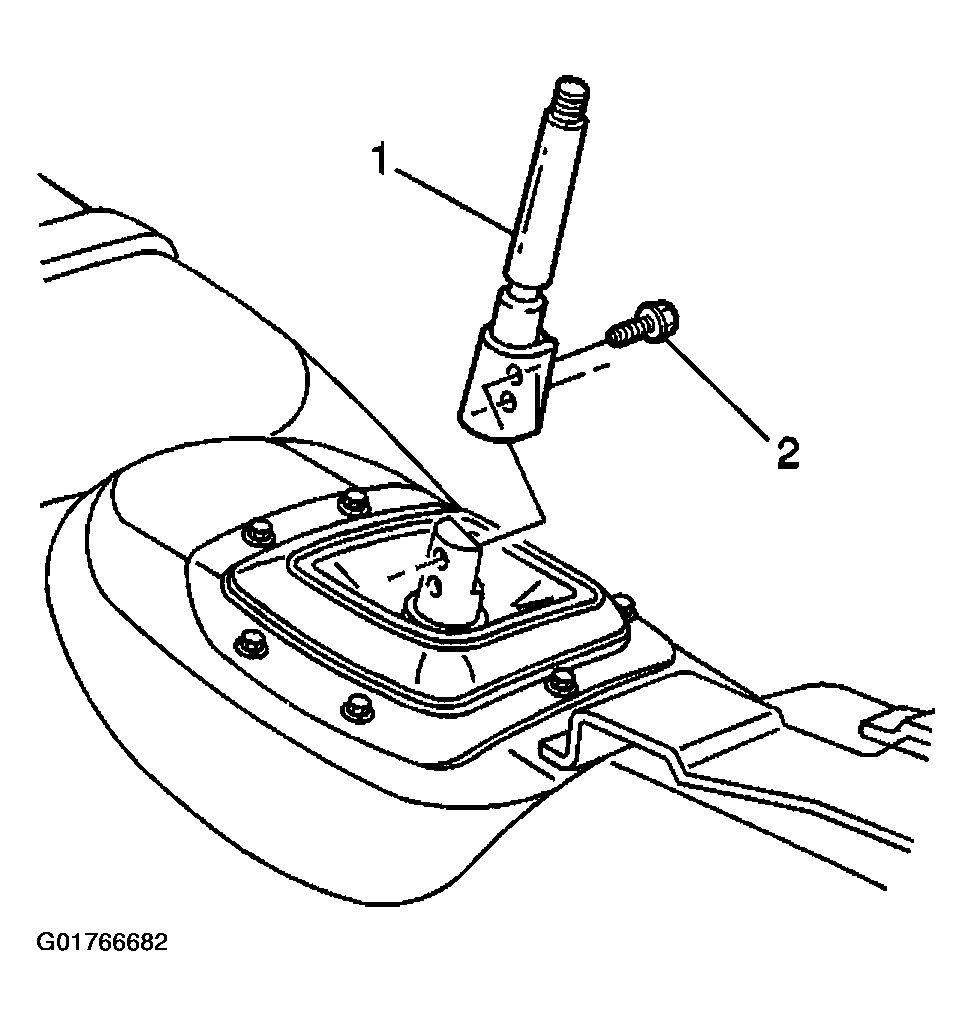

    Fig 1: Removing Control Lever Handle
    G01766682
