Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Raise and suitably support the vehicle.
  2. Disconnect the backup lamp switch electrical connector (2).
  3. Remove the backup lamp switch.

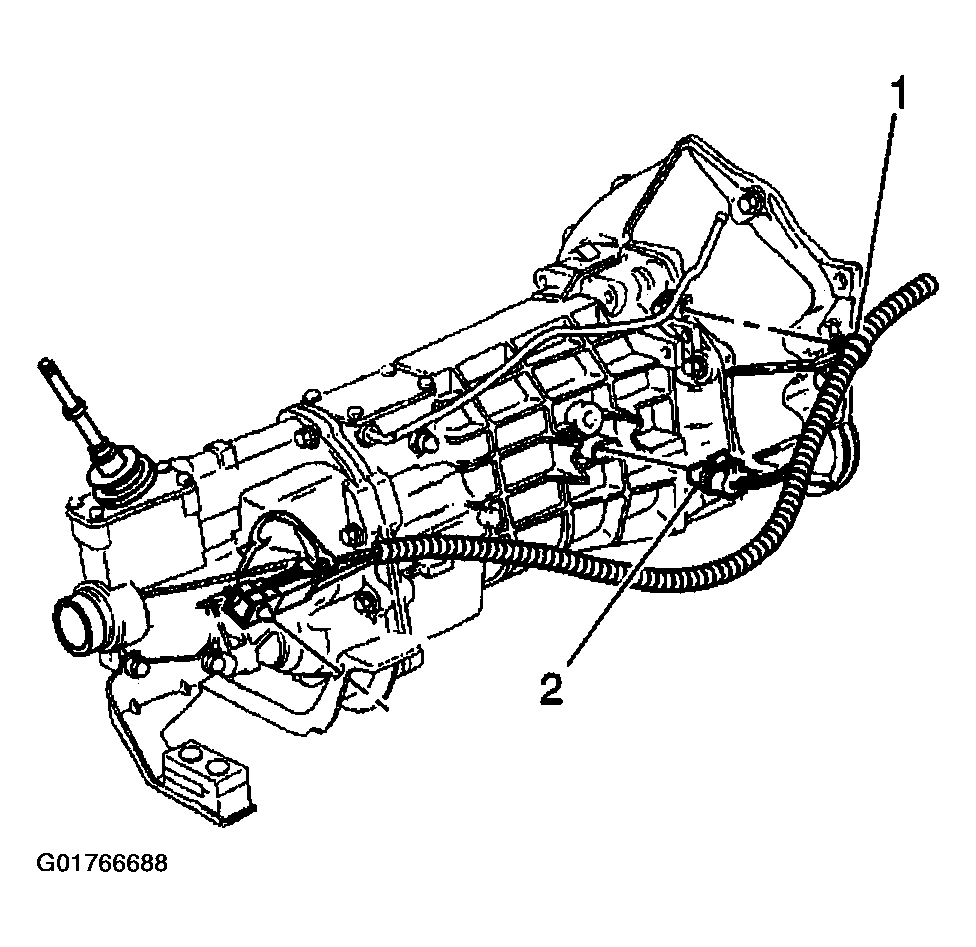

    Fig 1: Disconnecting Backup Lamp Switch Electrical Connector
    G01766688
