Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Apply pipe sealant with Teflon® to the threads of the backup lamp switch. Use GM P/N 1052080 or equivalent.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  2. Install the backup lamp switch.

    Tighten

    The backup lamp switch to 27 N.m (20 ft lbs).

  3. Connect the backup lamp switch electrical connector (2).
  4. Lower the vehicle.

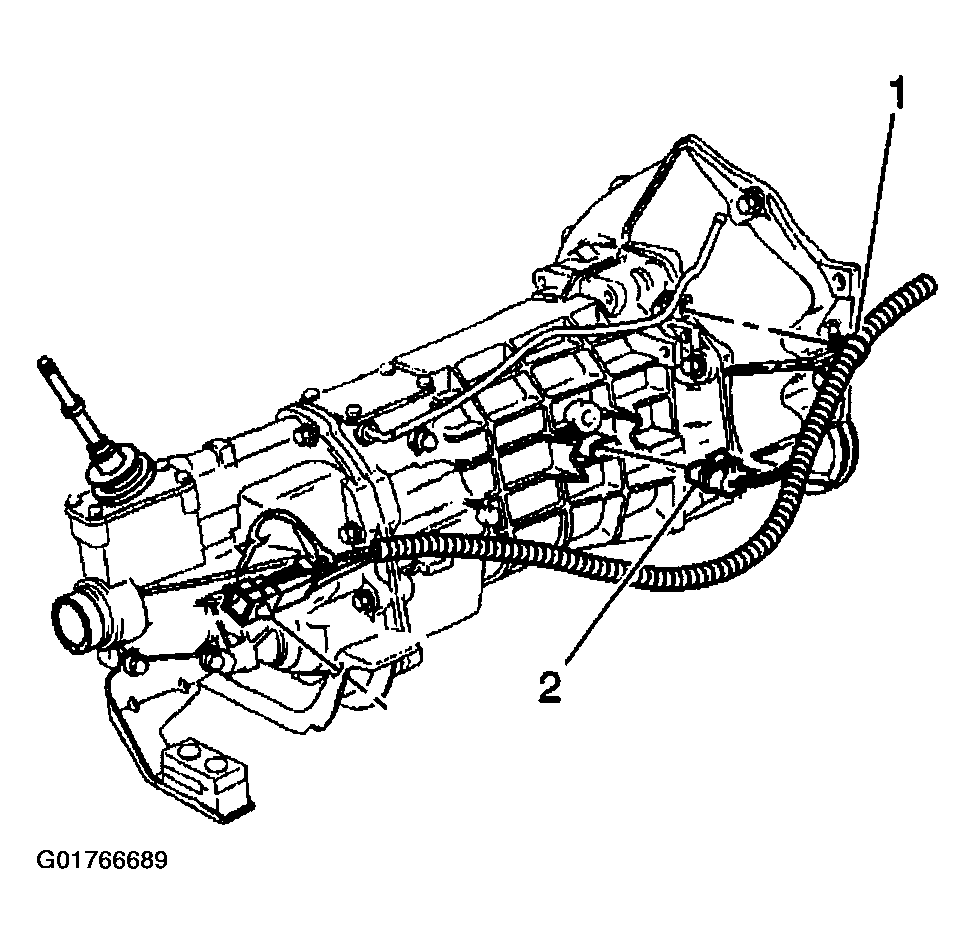

    Fig 1: Connecting Backup Lamp Switch Electrical Connector
    G01766689
