Test Description

WARNING: This page is about a different variant/trim than selected.

The numbers below refer to the step numbers on the diagnostic tables.

  1. 2  This step tests for the correct fluid level.
  2. 4  This step inspects for the correct transmission fluid.
  3. 10  This step inspects for internal damage or worn parts.

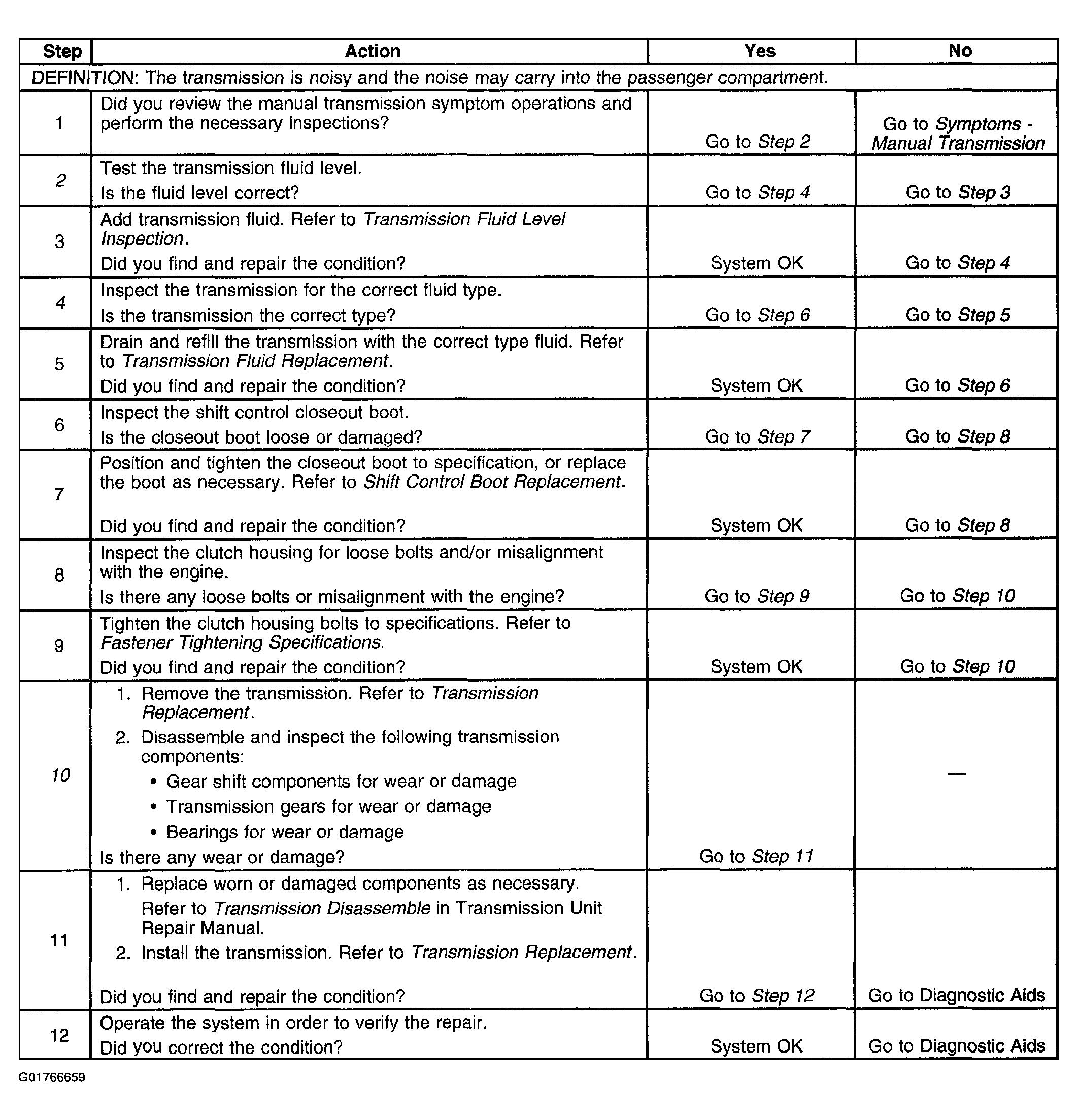

Fig 1: Transmission Noisy
G01766659
