Test Description

WARNING: This page is about a different variant/trim than selected.

The numbers below refer to the step numbers on the diagnostic tables.

  1. 3  This step inspects for worn or damaged mounts.
  2. 4  This step inspects for loose mounts, that cause the vehicle to jump out of gear during acceleration.
  3. 8  This step inspects for worn or damaged internal parts.

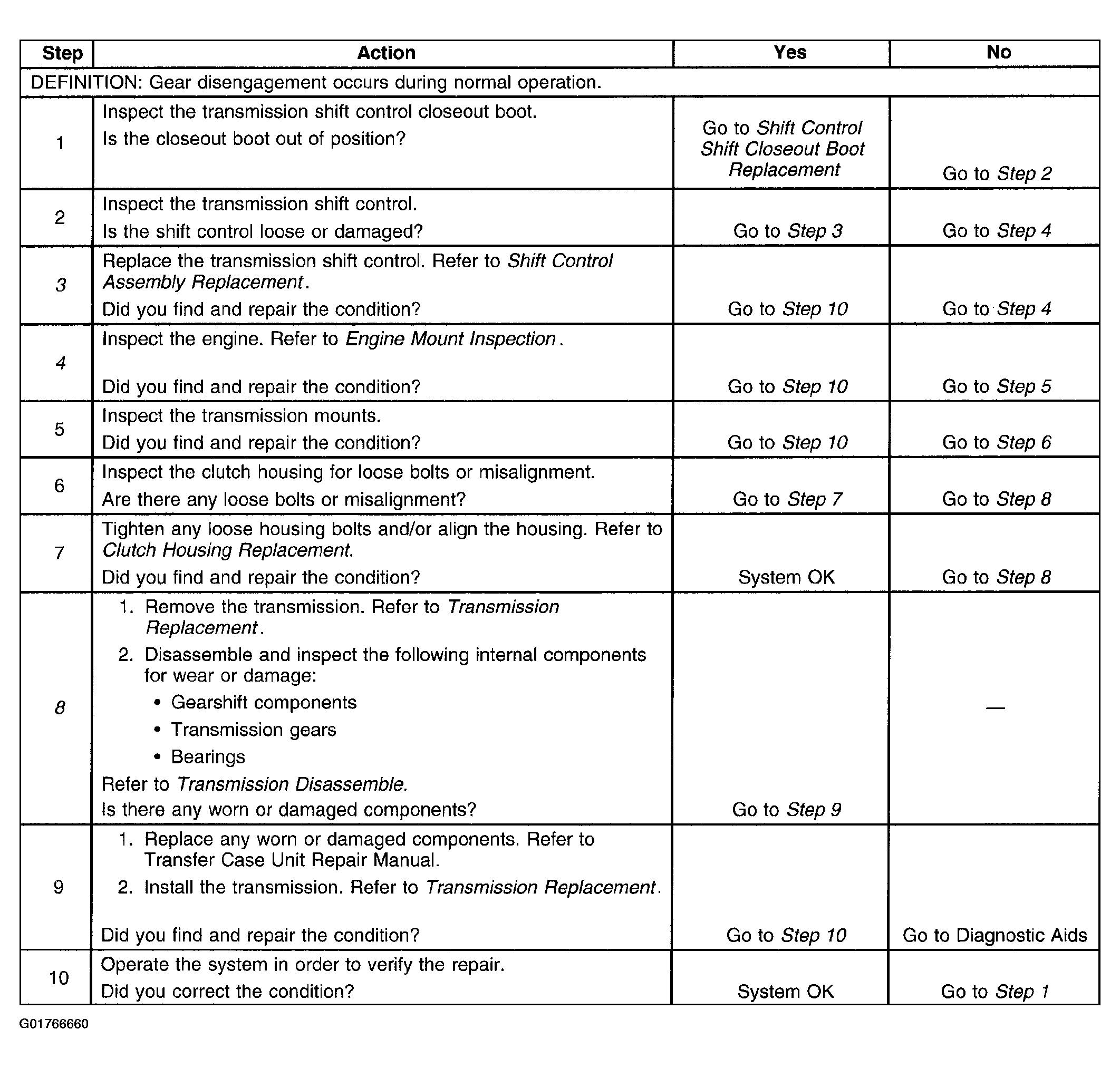

Fig 1: Transmission Jumps Out of Gear
G01766660
