Test Description

WARNING: This page is about a different variant/trim than selected.

The numbers below refer to the step numbers on the diagnostic table.

  1. 2  This step inspects for worn or damaged shift control components.
  2. 7  This step inspects for internal parts that may have been worn or damaged

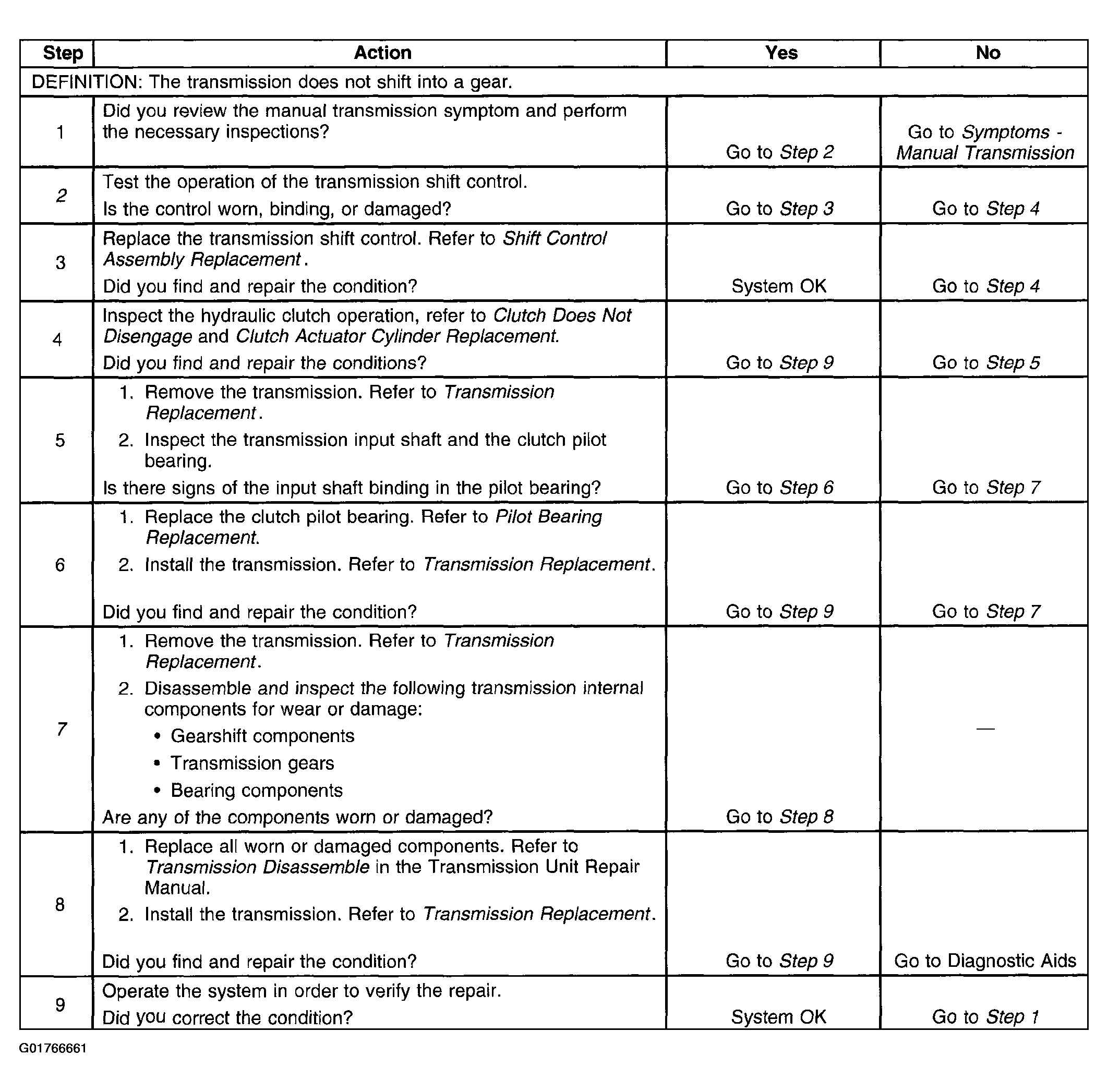

Fig 1: Transmission Does Not Shift into One Gear
G01766661
