Test Description

WARNING: This page is about a different variant/trim than selected.

The numbers below refer to the step numbers on the diagnostic table.

  1. 1  This step test for proper clutch operations.
  2. 3  This step test for air in the hydraulic clutch system.
  3. 10  This step inspects for worn or damaged internal components.

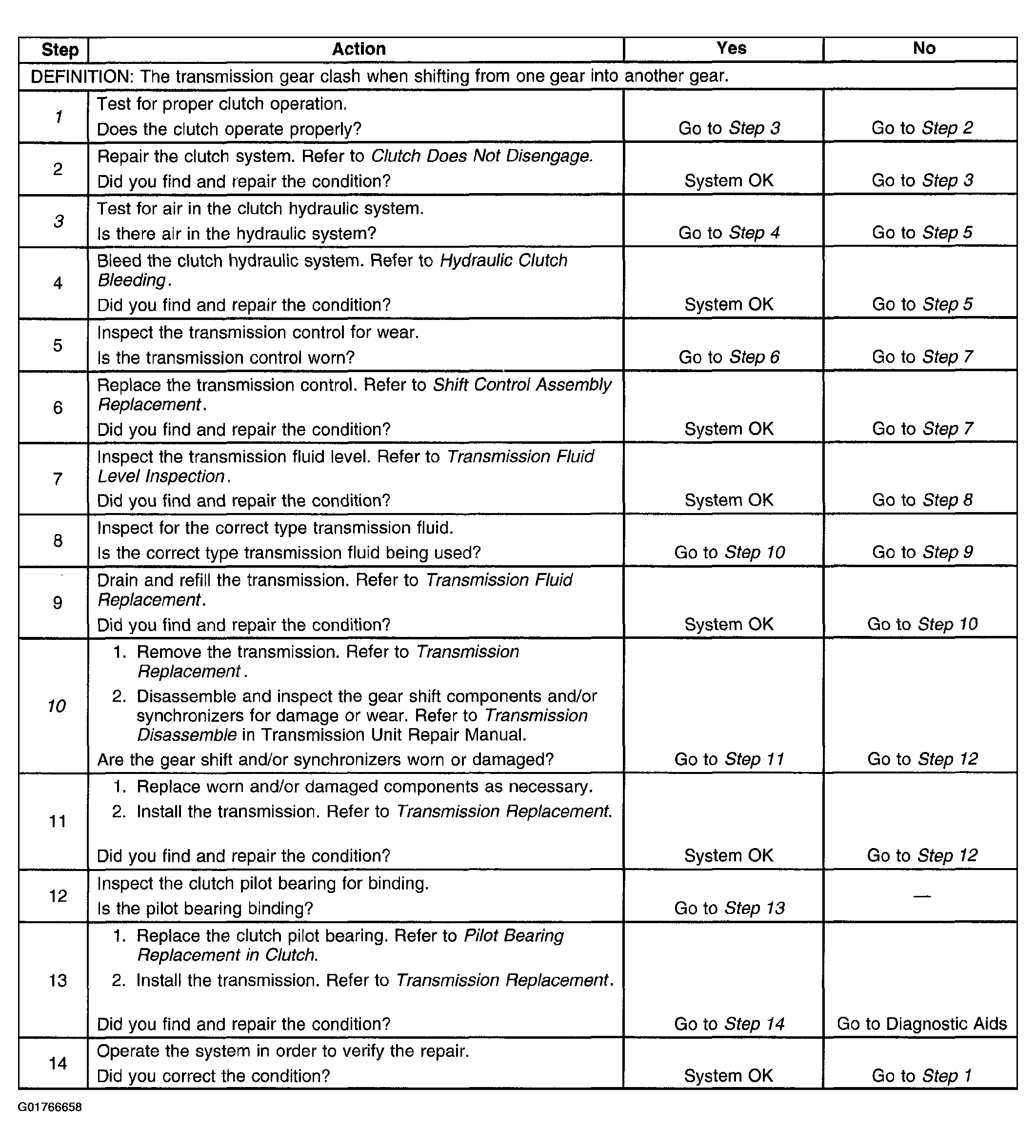

Fig 1: Gear Clash When Shifting Gears
G01766658
