Test Description

WARNING: This page is about a different variant/trim than selected.

The number(s) below refer to the step number(s) on the diagnostic table.

2 Listen for an audible click when the reverse inhibit solenoid operates. Command both the ON and OFF states. Repeat the commands as necessary.
3 Tests for voltage at the coil side of the reverse inhibit solenoid. The ENG IGN 1 fuse supplies power to the coil side of the reverse inhibit solenoid.
5 Verifies that the powertrain control module (PCM) is providing ground to the reverse inhibit solenoid.
6 Tests if ground is constantly being applied to the reverse inhibit solenoid.

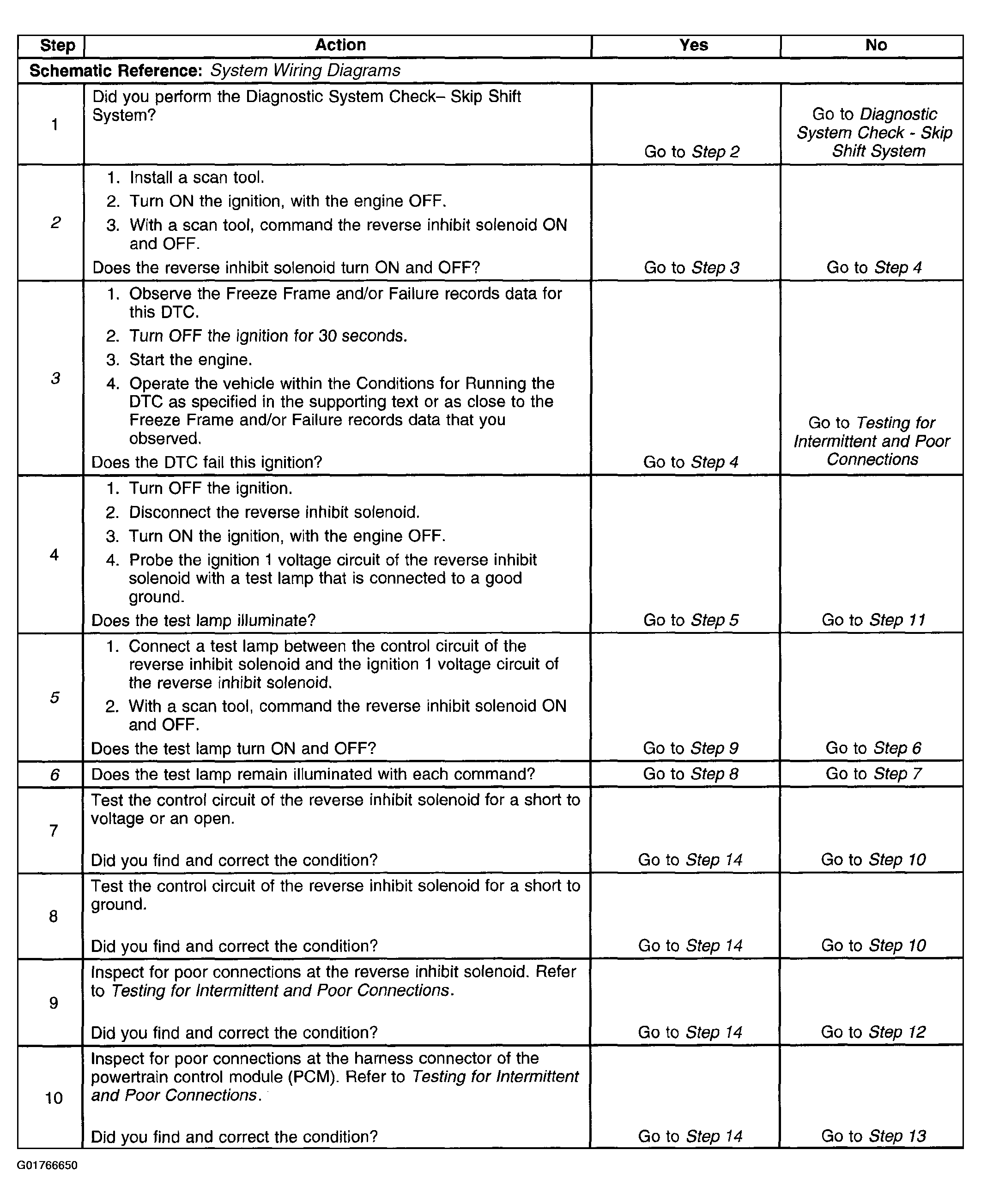

Fig 1: DTC P0801 (1 Of 2)

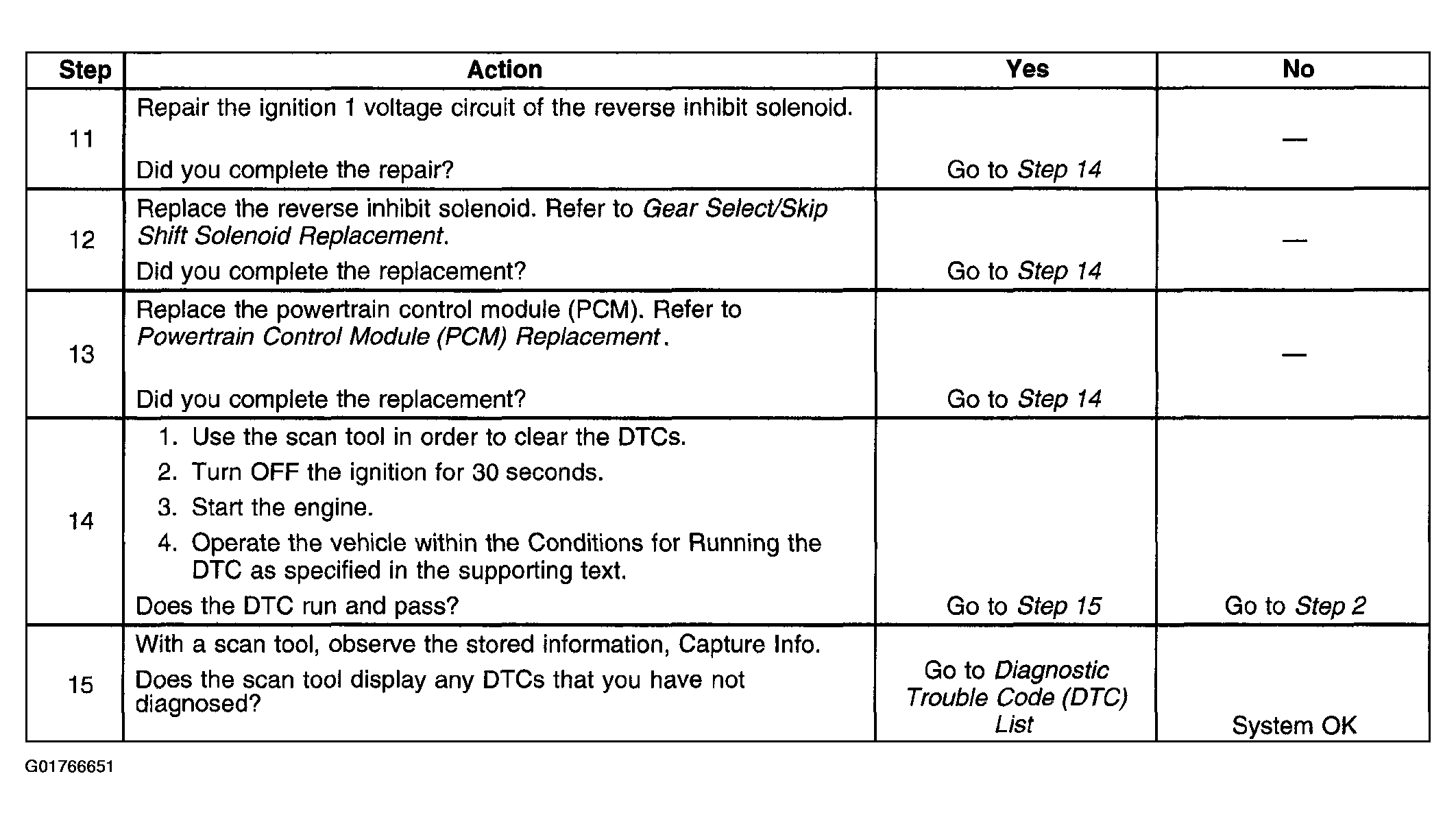

Fig 2: DTC P0801 (2 Of 2)
