Circuit Description
WARNING: This page is about a different variant/trim than selected.

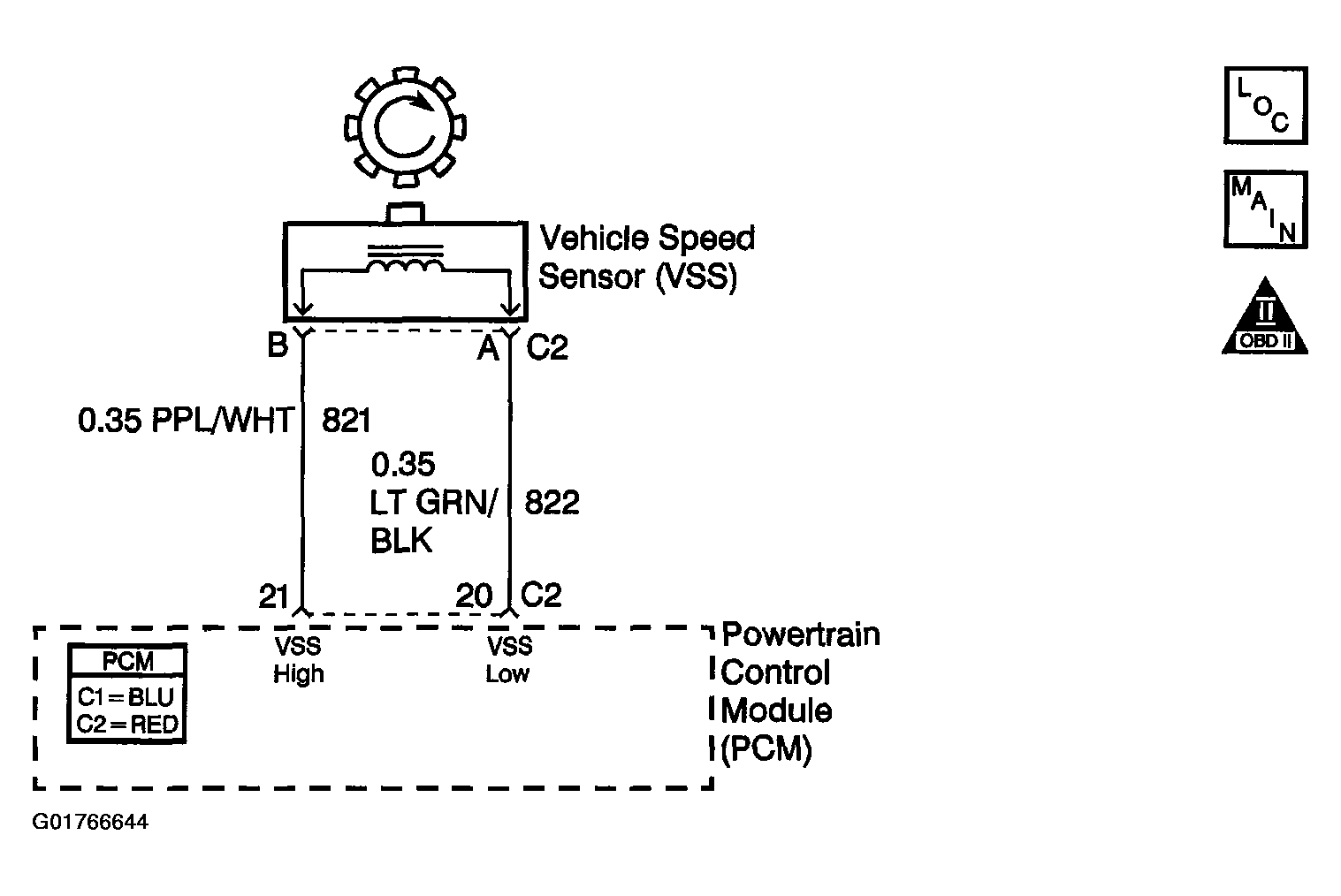

A toothed wheel mounted on the output shaft of the transmission generates an AC voltage pulse as it moves past the vehicle speed sensor (VSS). The VSS contains a permanent magnet surrounded by a coil of wire, which produces a magnetic field. The toothed wheel interrupts the magnetic field that generates an AC voltage pulse. As the vehicle speed increases the AC voltage pulse rate also increases.
