Test Description

WARNING: This page is about a different variant/trim than selected.

The numbers below refer to the step numbers on the diagnostic table.

  1. 2  This step inspects for loose or damaged engine mounts.
  2. 4  This step inspects for a worn or damaged driven clutch plate.
  3. 6  This step inspects for worn or damaged universal joints.

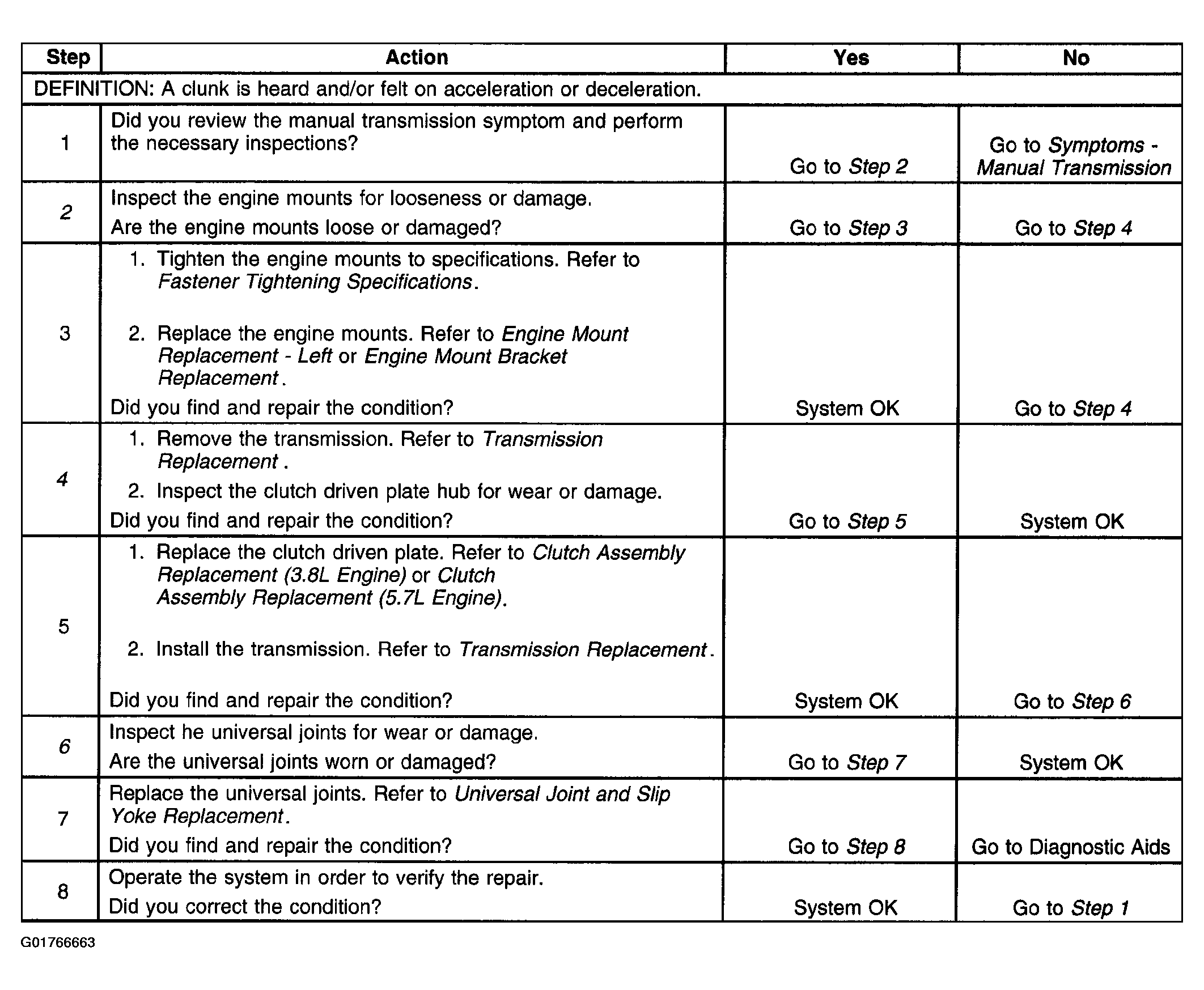

Fig 1: Clunk on Acceleration or Deceleration
G01766663

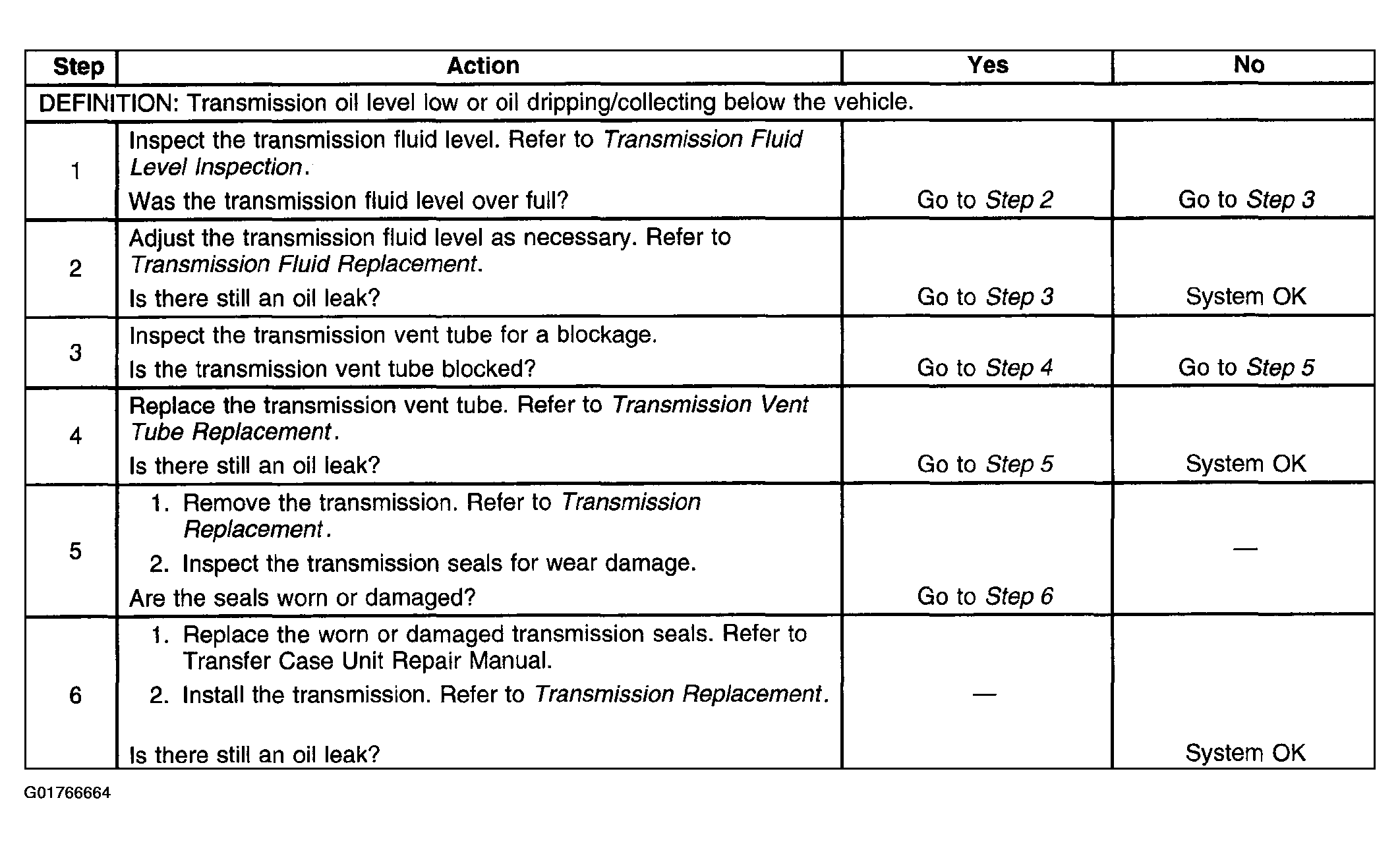

Fig 2: Oil Leak Diagnosis
G01766664
