Low Washer Fluid Message Inoperative

WARNING: This page is about a different car, the 2000 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: This procedure applies when fluid is low or empty and instrument cluster fails to command LOW WASHER FLUID message on Driver's Information Center (DIC) screen.
  1. Verify that wiper/washer system operates normally. See WIPER/WASHER SYSTEMS - CORVETTE article. If wiper/washer system operates normally, go to next step. If wiper/washer system does not operate normally, repair as necessary.
  2. Fill washer fluid reservoir to proper level. Turn ignition on and wait one minute. Monitor Driver's Information Center (DIC). If LOW WASHER FLUID message appears, go to next step. If LOW WASHER FLUID message does not appear, go to step  5 .
  3. Disconnect washer fluid level switch connector. Turn ignition on and wait one minute. Monitor Driver's Information Center (DIC). If LOW WASHER FLUID message appears, go to next step. If LOW WASHER FLUID message does not appear, go to step  6 .
  4. Check for short to ground in Black/White wire between washer fluid level switch and IPC. See WIRING DIAGRAMS  . If circuit is okay, go to step  9 . If faulty circuit is found and repaired, go to step  11 .
  5. Disconnect washer fluid level switch connector. Connect a jumper wire between washer fluid level switch connector terminals. Turn ignition on and wait one minute. Monitor Driver's Information Center (DIC). If LOW WASHER FLUID message appears, go to next step. If LOW WASHER FLUID message does not appear, go to step  7 .
  6. Replace windshield wiper solvent level indicator. After repairs go to step  11 .
  7. Connect a jumper wire between ground and washer fluid level switch connector terminal "A" (Black/White wire). Turn ignition on and wait one minute. Monitor Driver's Information Center (DIC). If LOW WASHER FLUID message appears, go to next step. If LOW WASHER FLUID message does not appear, go to step  9 .
  8. Repair open or high resistance in Black wire between ground and washer fluid level switch. After repairs, go to step  11 .
  9. Check for open or high resistance in Black/White wire between washer fluid level switch and instrument panel. If circuit is okay, go to next step. If faulty circuit is found and repaired, go to step  11 .
  10. Replace IPC. See INSTRUMENT PANEL CLUSTER (IPC)  under REMOVAL & INSTALLATION. After repairs go to next step.
  11. Recheck system operation. INSTRUMENT PANEL CLUSTER (IPC) DIAGNOSTIC SYSTEM CHECK  under SELF-DIAGNOSTIC SYSTEM.

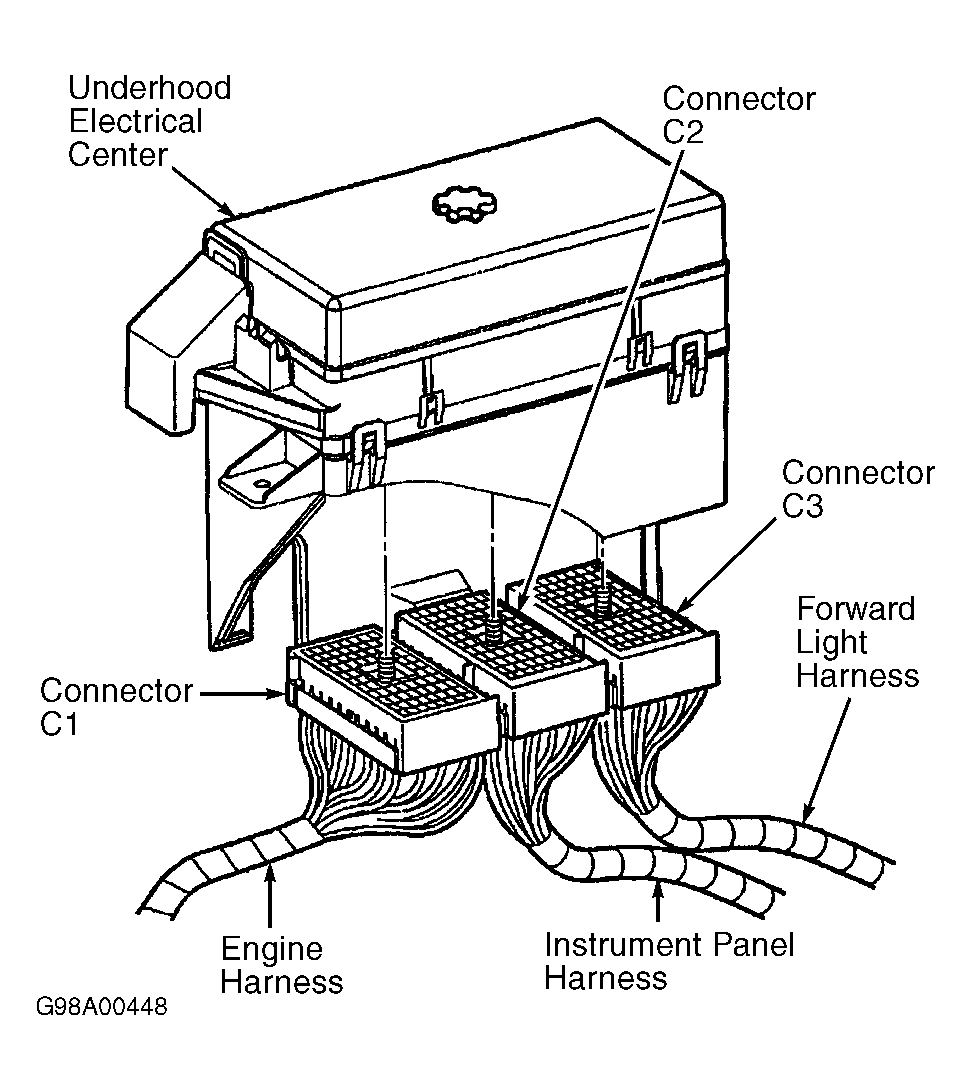

Fig 1: Identifying Underhood Electrical Connectors
G98A00448Courtesy of GENERAL MOTORS CORP.
