Suspension Contact Hoist

WARNING: This page is about a different car, the 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

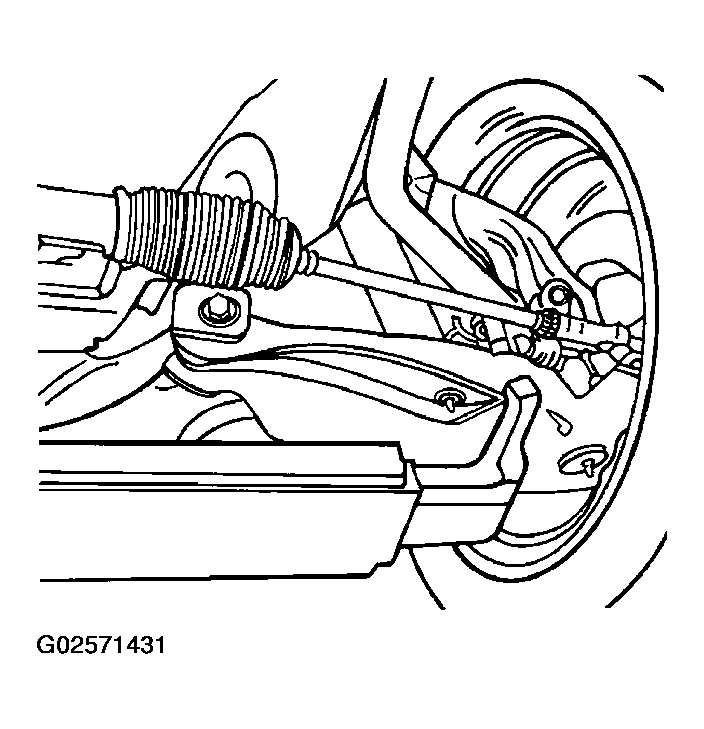

Fig 1: Front Lift
G02571431Courtesy of GENERAL MOTORS CORP.

Position the front lift suspension contact as follows: under the outer edge of the front suspension lower control arms.

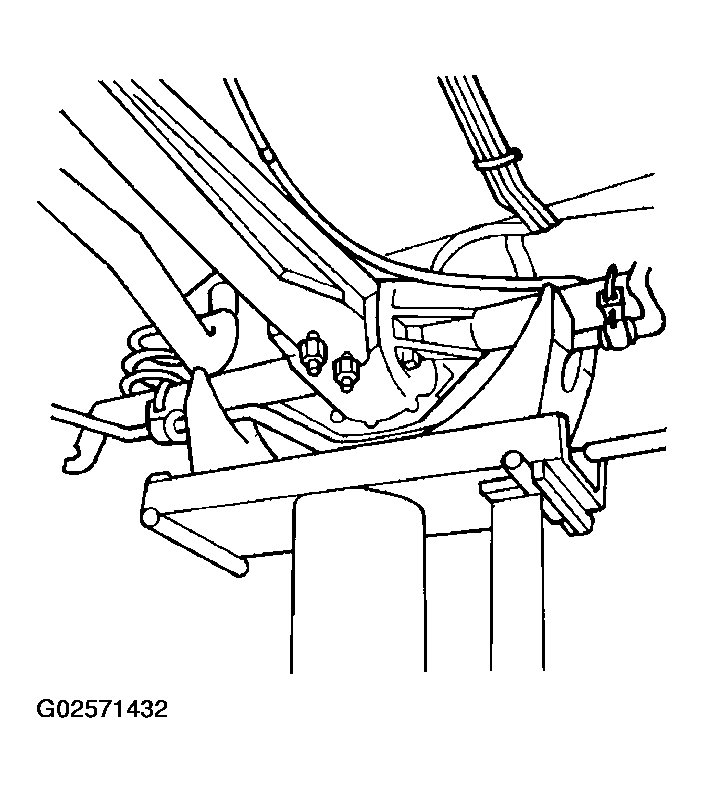

Fig 2: Rear Lift
G02571432Courtesy of GENERAL MOTORS CORP.

Position the rear lift suspension contact as shown.
