Frame Contact Hoist: Important
WARNING: This page is about a different car, the 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
The front hoist pads must not contact the rocker panels, the front fenders, or the floor pan.

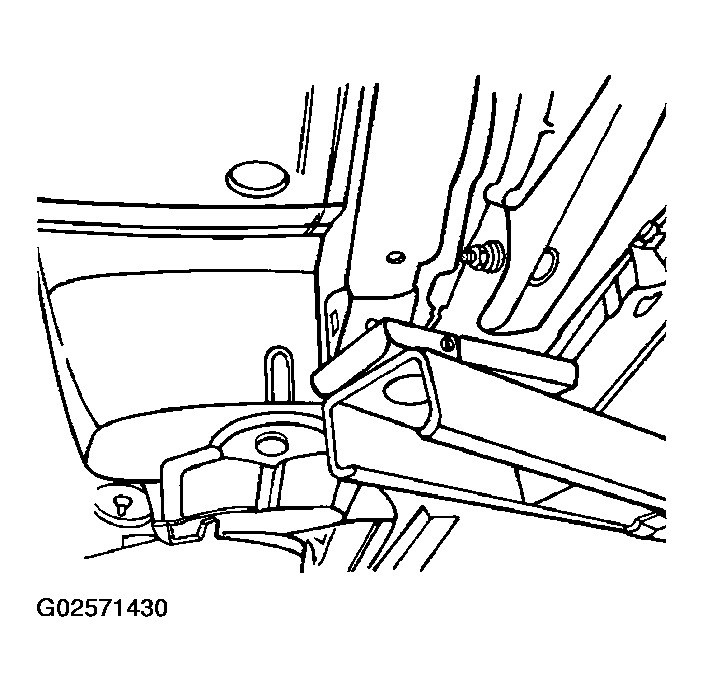

Position the front hoist pads frame contact as shown.
The rear hoist pads must not contact the body rocker panels or the floor pan.
Position the rear hoist pads body/frame contact as shown.
