Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The propeller shaft must be supported carefully during handling to avoid jamming or bending of parts.
  1. Lubricate the slip yoke with chassis lubricant.
  2. Install the slip yoke to the transmission output shaft.
  3. Place the center of the propeller shaft on the adjustable stand in order to support the propeller shaft.

    Important:  Align the reference marks on the propeller shaft with the reference marks on the pinion yoke to ensure the proper propeller shaft and pinion yoke relationship.

  4. Install the rear of the propeller shaft (2) to the pinion gear yoke (1).

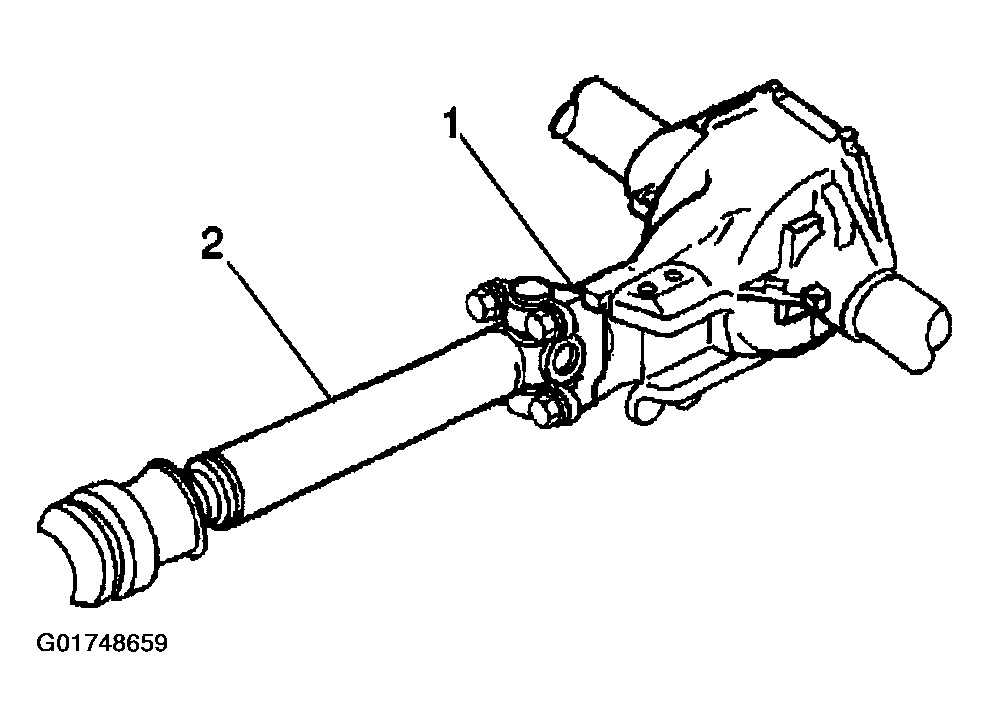

    5. Fig 1: Installing Rear Of Propeller Shaft To Pinion Gear Yoke
    G01748659Courtesy of GENERAL MOTORS CORP.
  5. Install the rear universal joint to the pinion gear yoke.

    Ensure that the bearing caps are properly seated.

  6. Install the propeller shaft retainers (1).

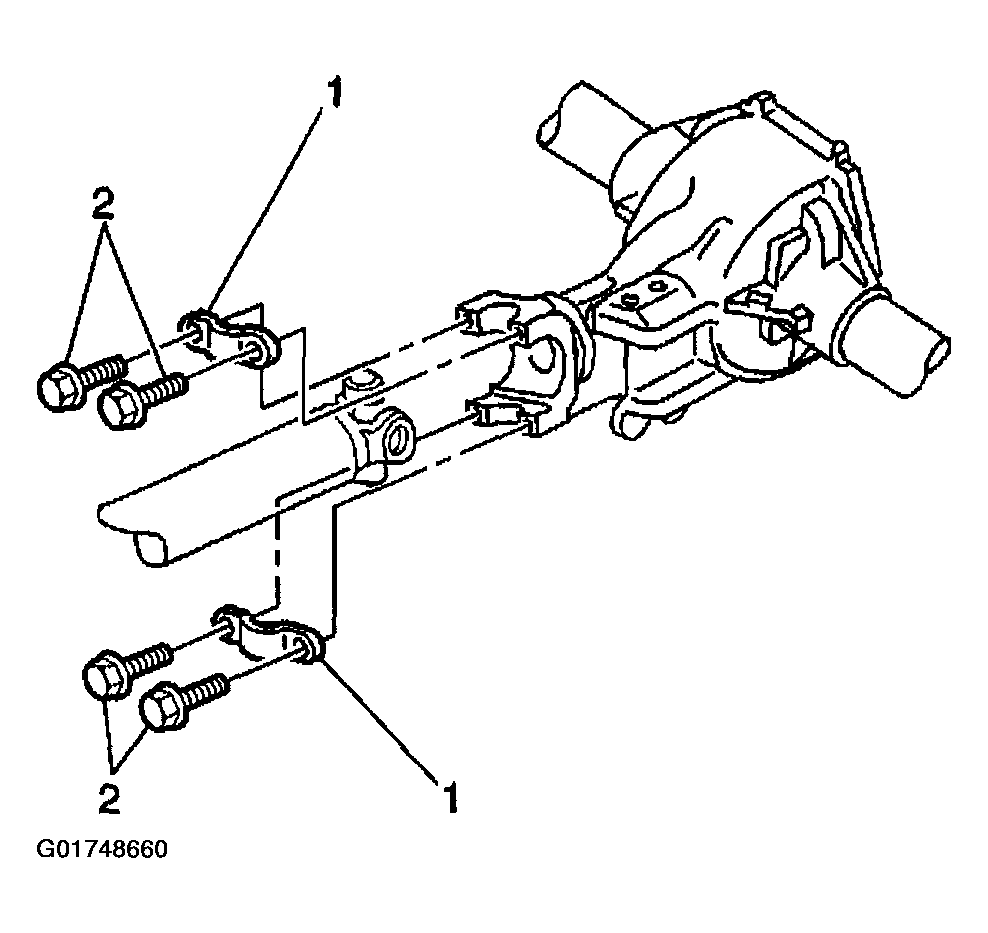

    Fig 2: Installing Propeller Shaft Retainers
    G01748660Courtesy of GENERAL MOTORS CORP.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  7. Install the propeller shaft bolts (2).

    Tighten

    Tighten the propeller shaft bolts evenly to 22 N.m (16 ft lbs).

  8. Install the following components to the torque arm (2).

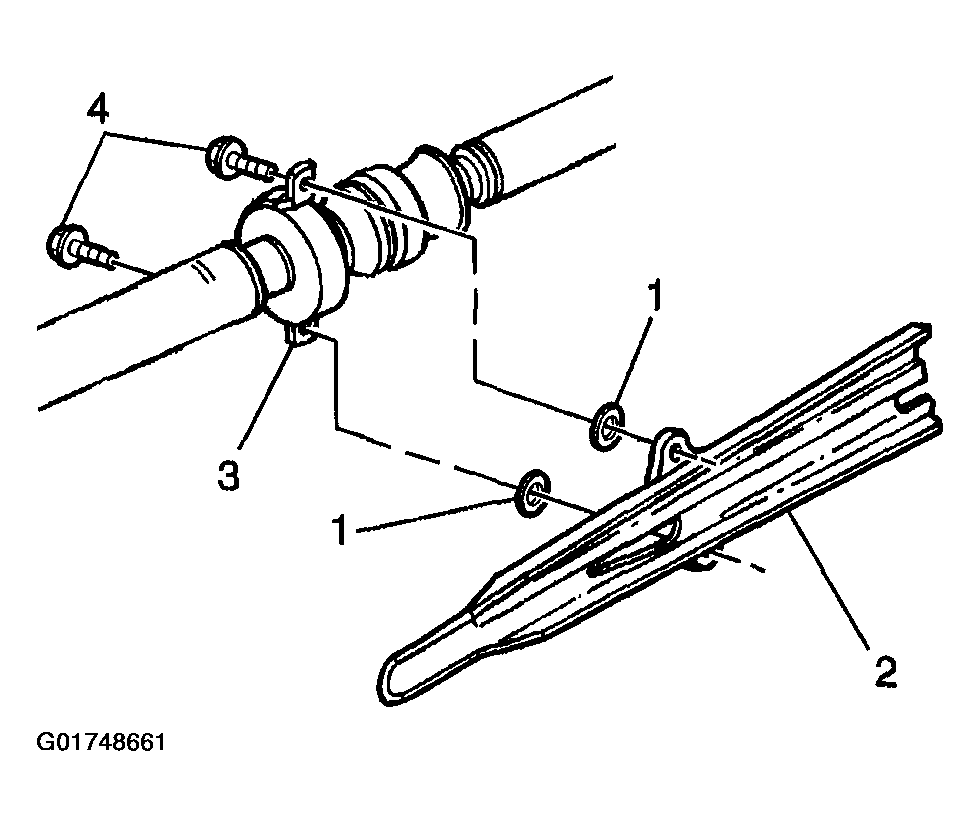

    Fig 3: Installing Components To Torque Arm
    G01748661Courtesy of GENERAL MOTORS CORP.
    • The washers (1)
    • The support bearing (3)
    • Install the bolts (4) to the support bearing

    Tighten

    Tighten the propeller shaft support bearing bolts to 50 N.m (37 ft lbs).

  9. Remove the adjustable stand under the propeller shaft.
  10. Lower the vehicle.
