Universal Joint Noise

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

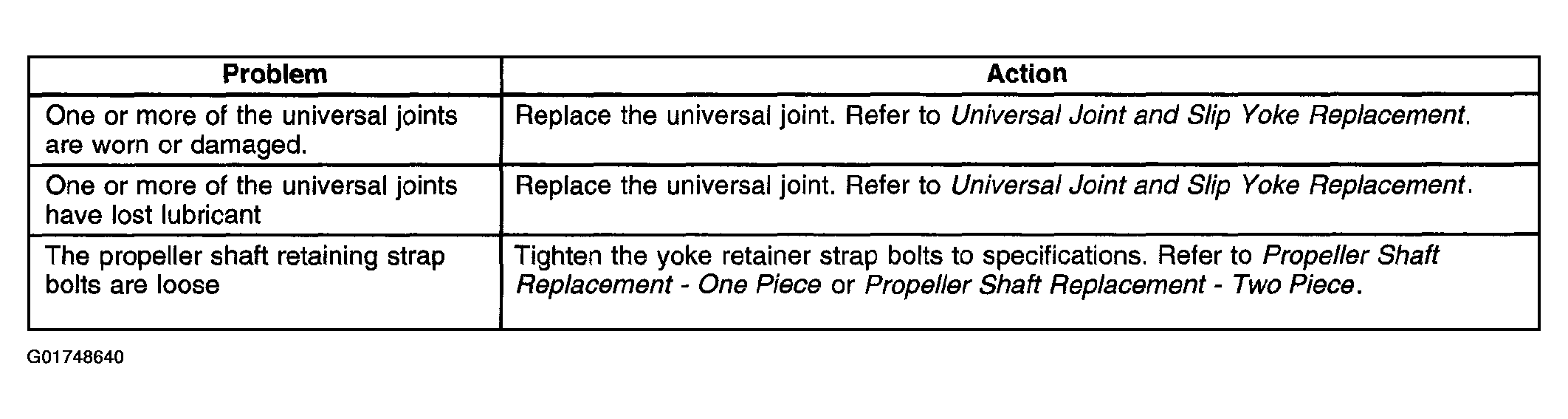

Fig 1: Universal Joint Noise
G01748640Courtesy of GENERAL MOTORS CORP.
