Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle.
  2. Remove the exhaust manifold pipe bolts.

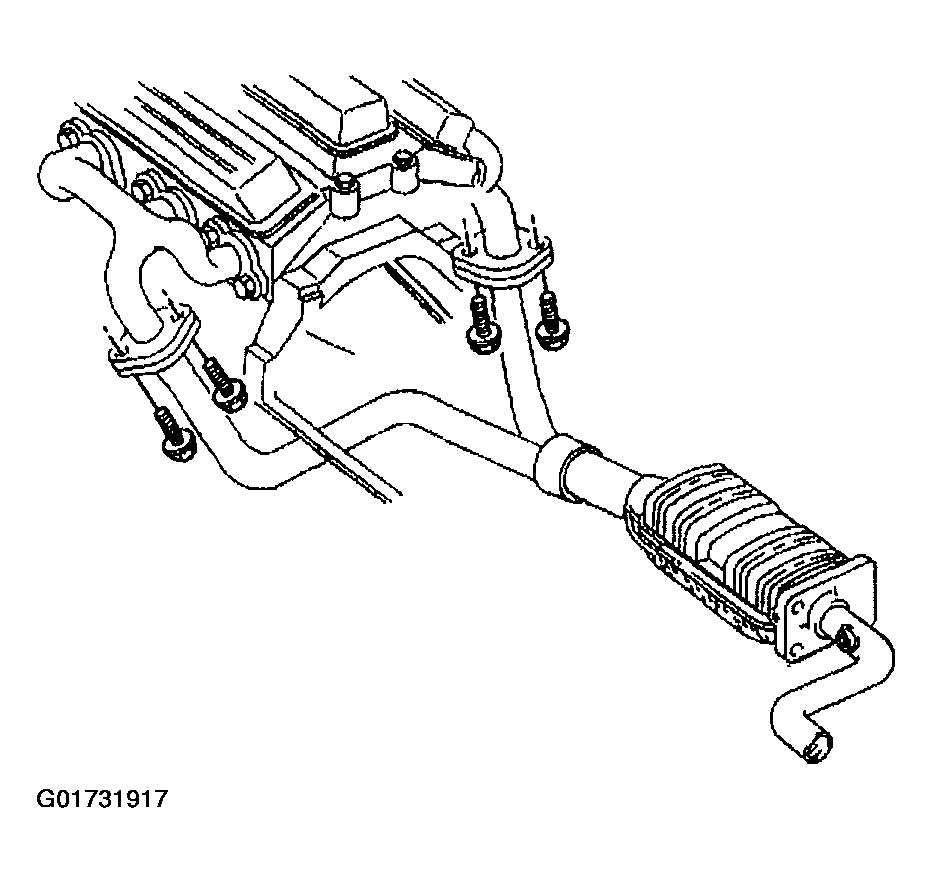

    Fig 1: Removing Exhaust Manifold Pipe Bolts
    G01731917Courtesy of GENERAL MOTORS CORP.
  3. Lower the front of the catalytic converter.
  4. Remove the exhaust manifold pipe seal(s).
